GuangDong-GuangZhou, China- Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2 V |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | ≤ 2 % |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| No load current | 10 mA |
| Cable material | PVC |
| Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ |
| Ambient operating temperature | –25 °C ... +75 °C |
| Housing material | Plastic |
| Tightening torque, max. | 0.9 Nm |
| UL File No. | E348498 |
Product Description
Technical Parameter

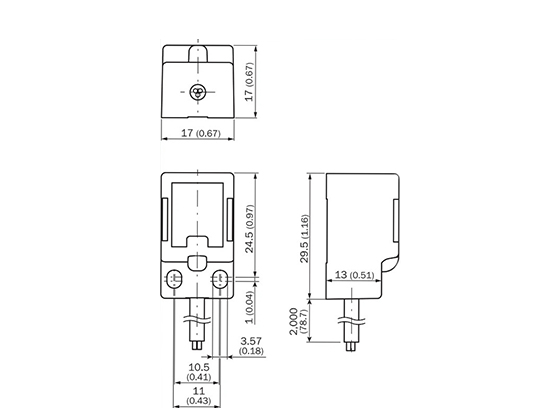

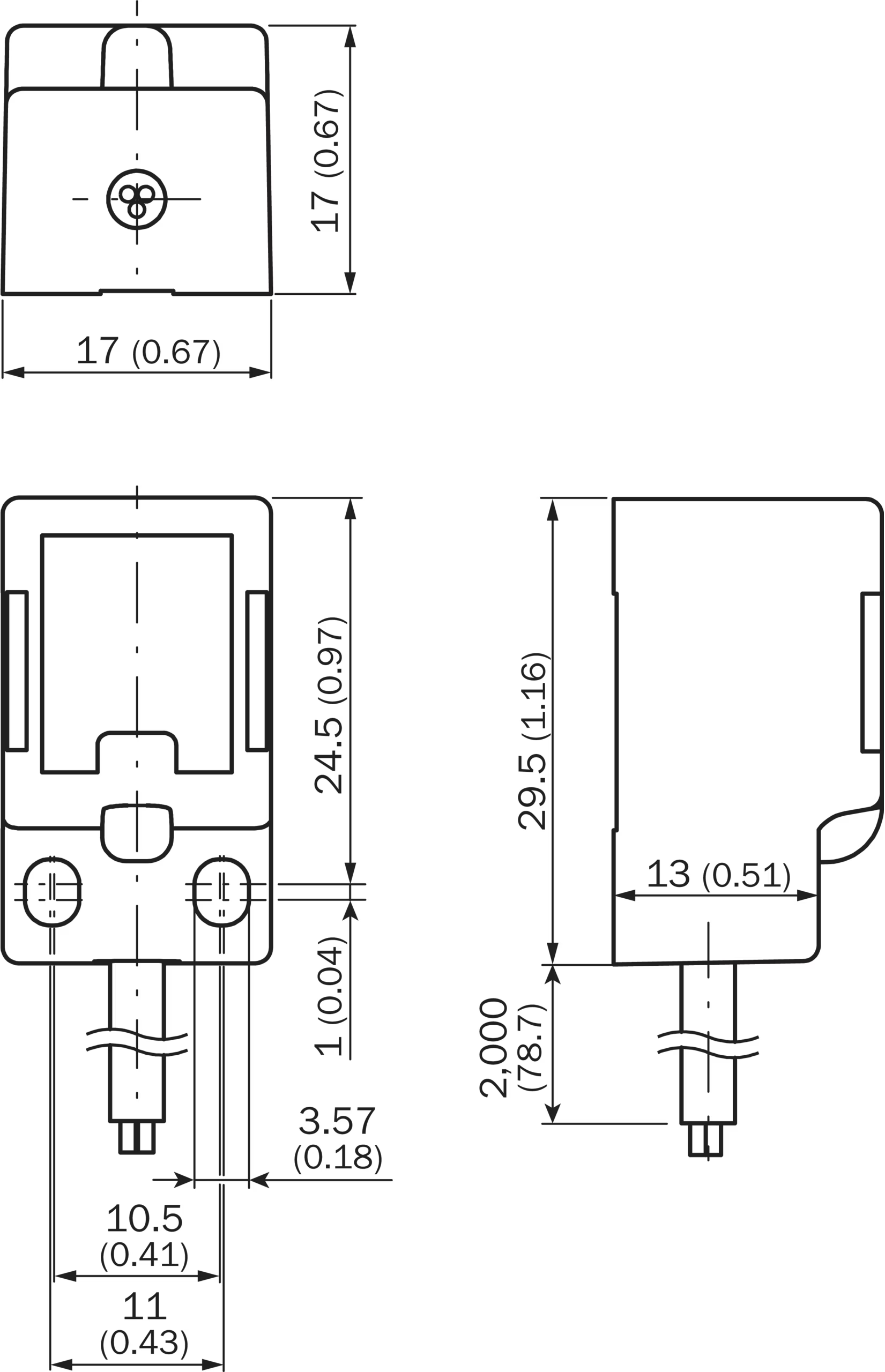

Technical Drawing
