FuJian-XiaMen, ChinaInserted PC dripper for Drip tape/pipe,1.0/1.6/2.0L/H
With new type of labyrinth passages, scientific structure, and good performance of pressure compensatiing.
Advantage:

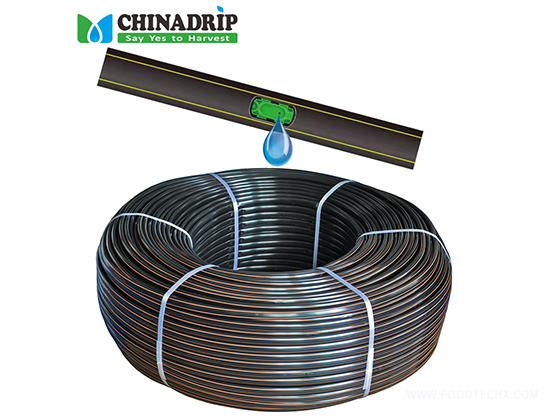

• PC100 Driptape (Dripline) produced by extrusion with PC emitter inside directly which save the time for installation.
• With new type of labyrinth passages,scientific structure,and good quality of silicon diaphragm for
high efficient pressure compensatiing.
• Self-flushing system with wide filtration area of inlet improves resistance to clogging for long life.
• Emitter has the function of Anti-siphpon which can prevent the small varia into the channel of emitter,
so this PC driptape can be used for SDI.
• With superior CV and excellent uniformity for long length of laying run.
• Produced by high quality material and advanced technology, better for anti-corrosion and anti-ageing.
Applicaton
• Working pressure: 0.5-3.5Bar.
• Filtration Required: Above 120mesh.
• Lay in line and levelly, all the holes of emitter must be upward.
• Suitable for the planing on hills and mountains, or Sub-surface multi seasonal row crop.

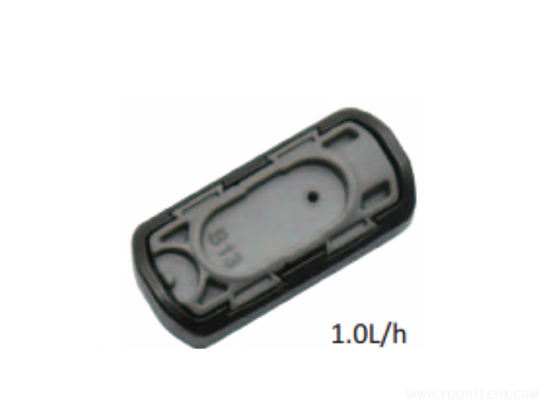

Specification of Emitter
:
Pressure (Bar)
0.5
Flow Rate (L/h) : 1.0L/h
1.02

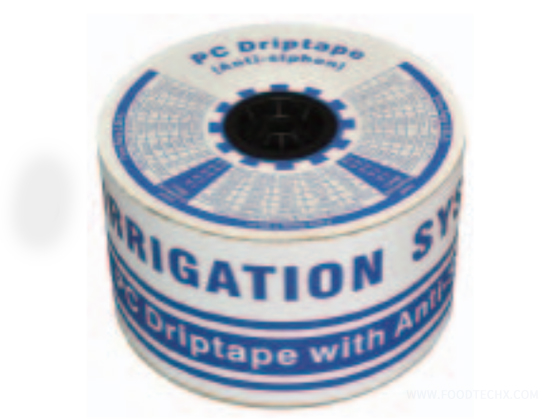

Specification for PC100 Driptape:
Item No.PCAS0116402010/16/20
Diameter (mm)16
Thickness0.4mm(16mil)
Emitter Spacing (cm)20
Flowing(L/H)1.0/1.6/2.0
Package(m/roll)700

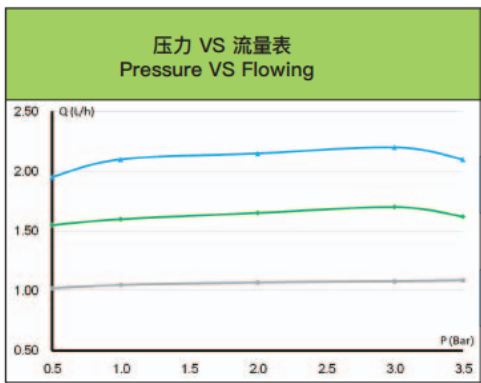

- Pressure VS Flowing
