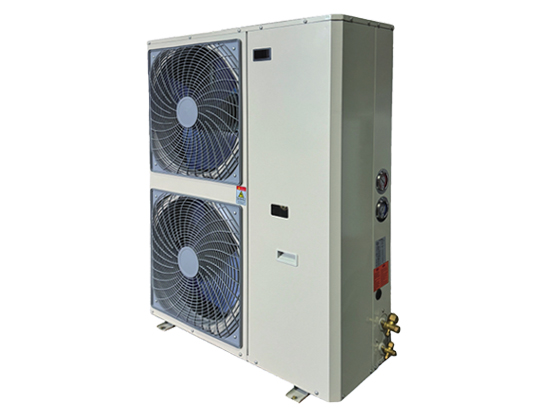

Energy- saving hot fluorine unit mobile phone remote control, 485 communication Intelligent "heart" technology Control the operation of cold storage at any time
◉ Danfoss Electronic expansion valve throttling
◉ System design, multiple protection
◉ Hot fluorinated cream, save electricity and worry
◉ Liquid crystal display, accurate temperature control
◉ automatic alarm, screen intuitive
◉ Wechat program, transportation control
◉ Air conditioning installation, convenient and simple
Name specification
LTYT-7HP
Head type
Copeland ZF25/ ZB48
Heat transfer area (㎡)
65
Power (W)
5250
Temperature range
-30~10℃
Use space
50-80m³
Overall dimension: Length X width X height(mm)
1100X750X900
Mounting dimension (mm)
720X380
Supporting motor fans
:
Fan diameter (mm)
522
Motor (W)
90
Air volume(m³/h)
4200X2
remark
Compressor brands can be according to selected customer needs
