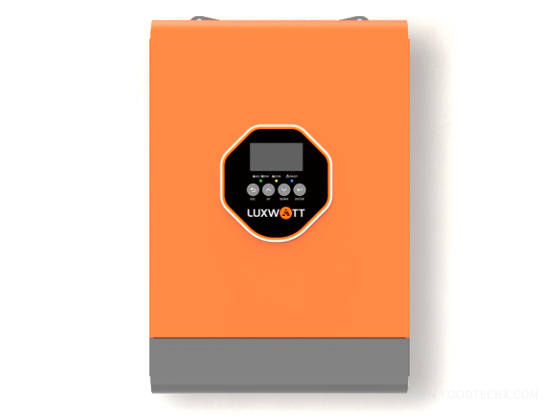

Name: Inverter---L-HOMLE-O5K-1PTW
Brand: GENIXGREEN
SKU: 141a9ccc1cc14d1eb17feee3ec4a93b2
Availability: InStock
Rating: 4.8 (20 reviews)

GENIXGREEN

Dongguan , China

Pure sine wave output inverter
Intelligent battery charging design to optimize battery life
Independently develop PCB boards and cooling systems with stable quality
Parallel expansion is possible,with 6 units working at thesame time
Flexible installation andhigh charging efficiency
Optional wifi function

Model

L-HOMLE-05K-1PTW

AC INPUT

；

Rated Voltage

50 Hz/ 60 Hz

Current (Maximum Continuous)

40 A a.C.

INVERTER OUTPUT

：

Rated Power

5 kW

Rated Voltage

208/220/230/240 V a.c.，L+N+PE

Power Factor

1 Wave Form

Pure Sine Wave

Switch Time

<10 ms (Typical)

Inverter Efficiency (Peak)

>94%

Current (Maximum Continuous)

22.7 A a.C.

Maximum Output Overcurrent Protection

10V

Operate Temperature Range

102% ~ 110% 1min/ 110% ~ 130% 10s/ 130% ~ 150% 35/ 150% 0.25

BATTERY

：

Battery Type

Lithium / Lead-acid

Rated Battery Voltage

48V d.c.

Battery Voltage Range

42~60V d.c.

Max. Charge Current

80 A d.c.

PV INPUT

：

No.of MPPT Tracker/Strings

1/1

Max. PV Array Power

6 kW

Max.DC Voltage

500V d.c.

MppT Voltage Range

120 ~430 V d.c.

Start-up Voltage

120 V d.c.

MPPT Maximum Charge Current

80 A d.c.

Max. Input Current

18 A d.c.

Isc PV (Absolute Maximum)

22 A d.c.

PROTECTION & FEATURE

：

Parallel Function

Yes (up to 6pcs,optional)

Protection Degree

IP20, Indoor only

Certifications

CE (IEC62109-1), EN61000 NRS

Other Protection

Overload, Over temperature, Short circuit

Leave Message

GENIXGREEN

Pure sine wave output inverter

Intelligent battery charging design to optimize battery life

Independently develop PCB boards and cooling systems with stable quality

Parallel expansion is possible,with 6 units working at thesame time

Flexible installation andhigh charging efficiency

Optional wifi function
