Specifications

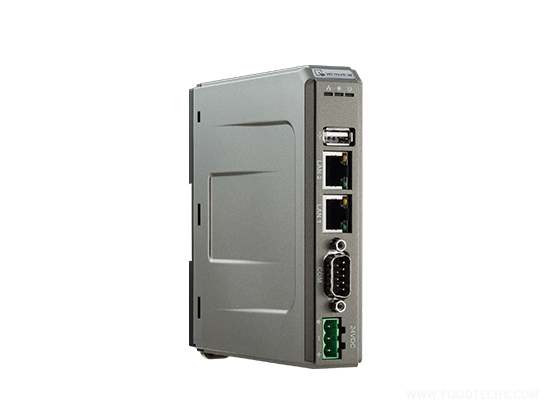

cMT-G01X
Memory
Flash: 256MB; RAM: 256MB
Processor
Quad-core RISC CPU
I/O Interfaces
:
SD Card Slot:
None
USB Host:
USB 2.0 x 1
USB Client:
None
Ethernet Interface (LAN1):
10/1000 Base-T x 1
Ethernet Interface (LAN2):
10/1000 Base-T x 1
Serial Interfaces:
COM1: RS-232 2W ;COM2: RS-485 2W/4W ;COM3: RS-485 2W
CAN BUS:
None
HDMI:
None
Audio Output:
None
Video Output:
None
Real-Time Clock
Built-in
Power Supply
:
Input Power:
24±20% VDC
Power Isolation:
Built-in
Power Consumption:
230mA@24VDC
Environmental & Physical Specifications
:
Withstand Voltage:
500VAC (1 minute)
Insulation Resistance:
>50MΩ at 500VDC
Vibration Resistance:
10 to 25Hz (2G for 30 minutes in X, Y, Z axes)
PCB Coating:
Yes
Housing Material:
Engineering Plastic
Dimensions (W × H × D):
27×130×115 mm
Weight:
Approx. 0.18kg
Mounting Method:
35mm DIN Rail Mounting
Protection Class:
IP20
Operating Temperature:
0° ~ 55°C (32° ~ 131°F)
Storage Temperature:
-20° ~ 70°C (-4° ~ 158°F)
Relative Humidity:
10% ~ 90% (non-condensing)
Applicable Altitude (Atmospheric Pressure):
Below 3,000 meters (70.1kPa)
Software ：EasyBuilder Pro V6.09.02 or later EasyAccess 2.0 (optional) Weincloud

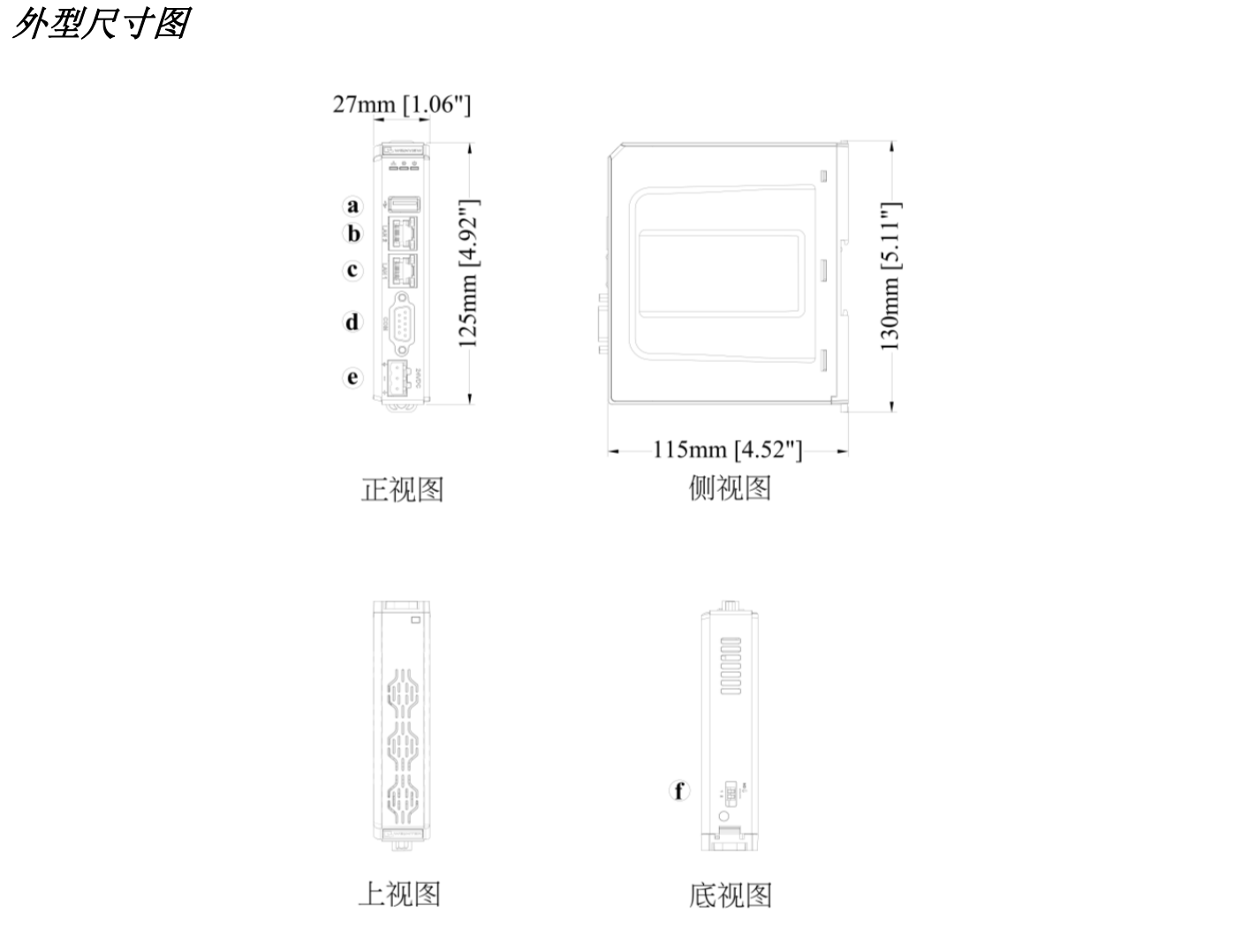

- Dimensional Drawings
