Equipped with a high-performance brushless motor, low noise, with an average decibel level of 34dB.
-
LCD display for clear visibility, allowing real-time monitoring of set speed and actual speed, among other information.
-
Supports the setting of time, speed, and torque, with both coarse and fine adjustment modes available for speed and time.
-
Speed adjustable from 30 to 2200 rpm, with precise control over high and low speeds, and the ability to maintain a constant speed.
-
Features overload protection and motor protection functions. In case of overload, short circuit, or speed abnormalities, the circuit is automatically cut off and an alarm is triggered to ensure safe operation.
-
Humanized design for a pleasant user experience.
-
Includes a stirring rod penetration hole for easy replacement and height adjustment of the stirring paddle.
-
Smooth start-up to effectively prevent sample spillage.
-
Uses imported self-locking chuck with a locking function to prevent the stirring rod from loosening, ensuring high shaft accuracy.
-
Equipped with a chuck silicone protective sleeve, stand safety clip, and anti-slip mat on the base to enhance operational safety.

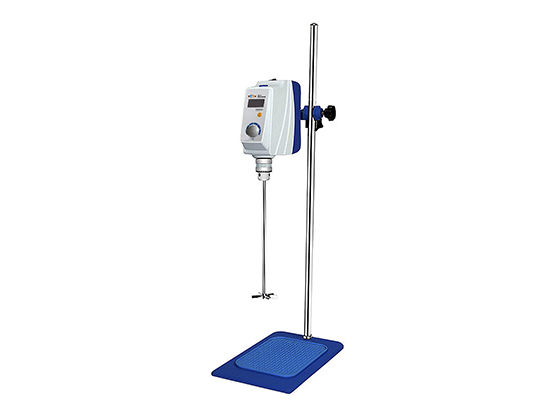

Home/Laboratory Equipment/JBD-20/40/60 Top-mounted Stirrer/

INASE Scientific Instrument CO.,LTD
ShangHai, ChinaModel:
JBD-20
Mixer Capacity (H₂O)
20L
Torque
40 N·cm
Motor Input Power
60W
Motor Output Power
50W
Weight
2.6kg
Power
70W
Viscosity
10000mPa·s
Speed Range
30-2200 rpm
Speed Accuracy
<±3 rpm
Motor Type
Brushless DC Motor
Speed Display
LCD
Speed Display Resolution
±1 rpm
Overload Protection
Display fault, auto stop
Motor Protection
Display fault, auto stop
Clamping Range of Chuck
0.5-10 mm
Dimensions (D×W×H)
186×83×220 mm
Protection Level
IP42
Permitted Ambient Temperature
5~40°C
Permitted Ambient Humidity
80%
RS232
Modbus
