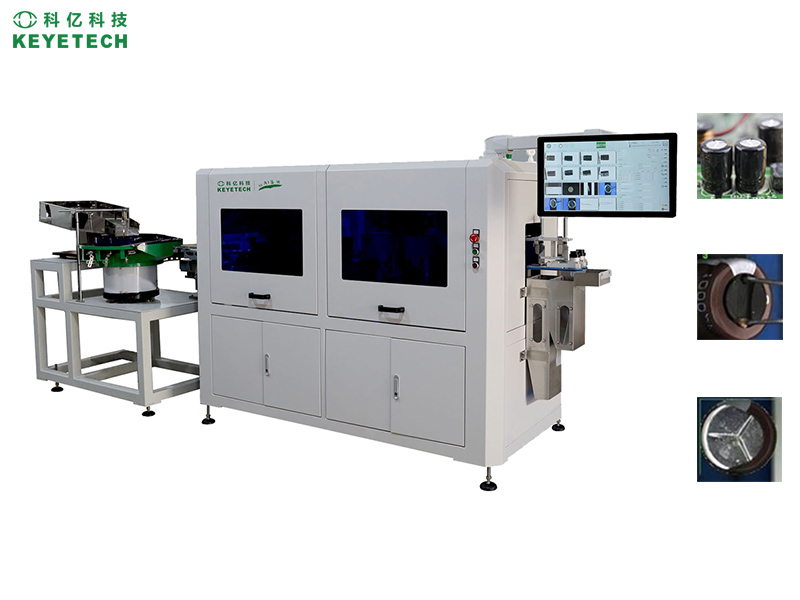

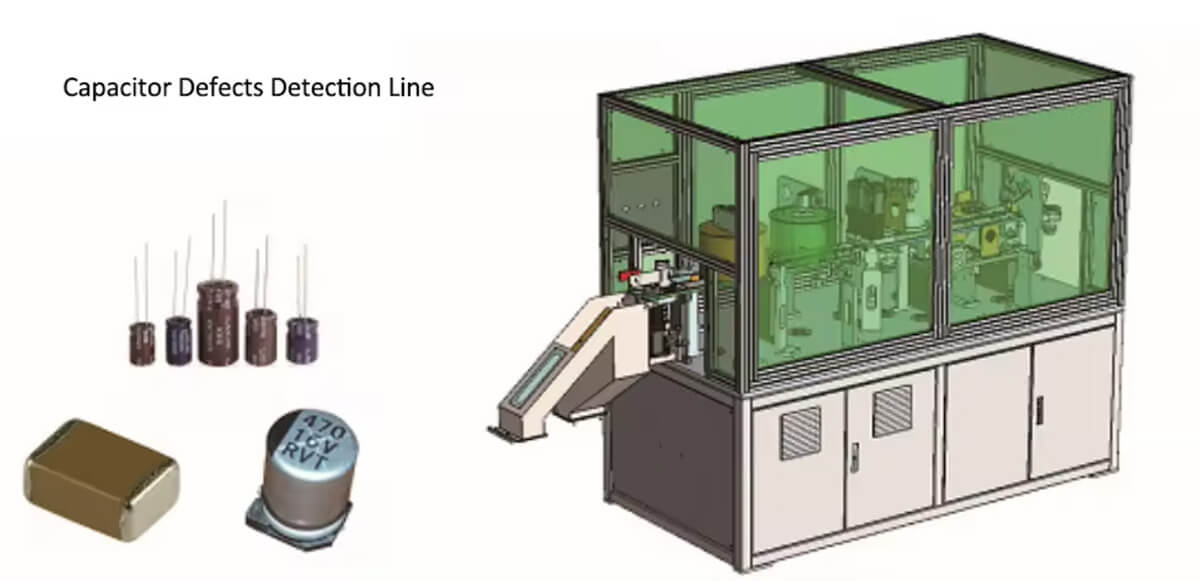

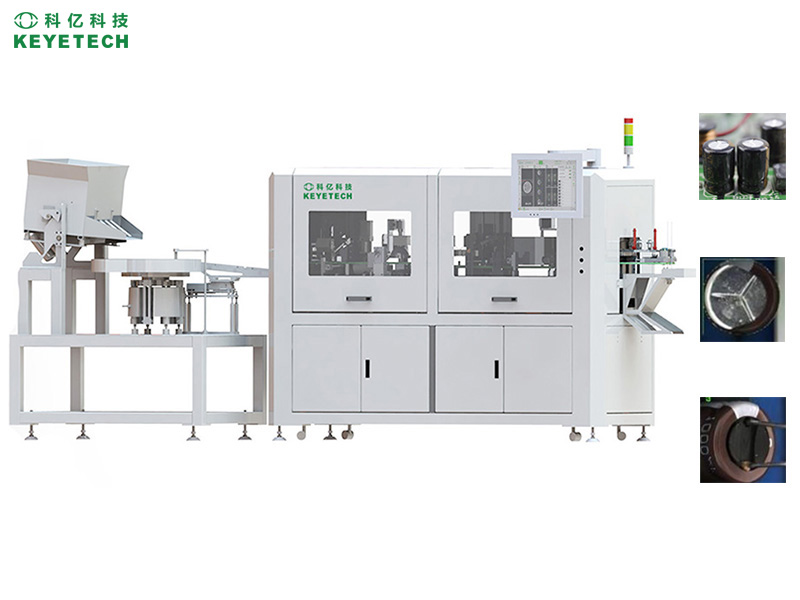

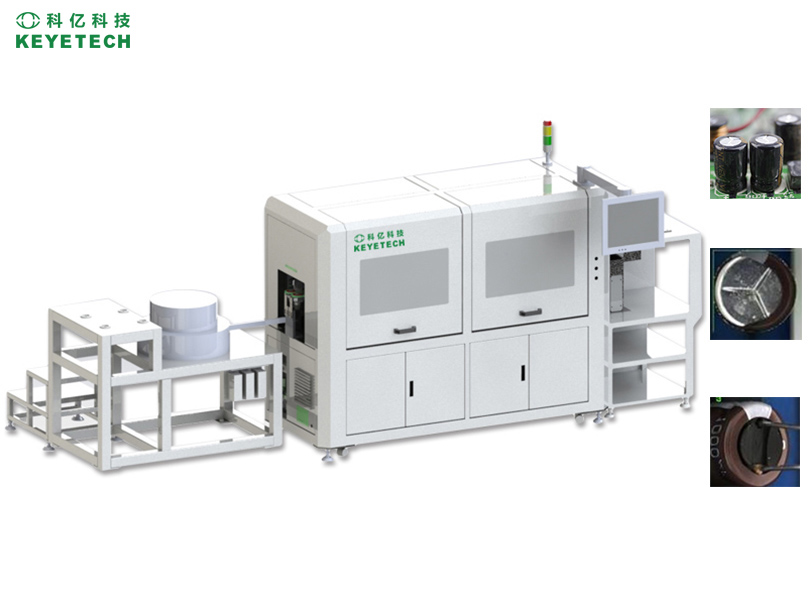

The KVS-EC-06C high speed capacitor vision detection equipment converts the captured target into an image signal, it work through a machine vision product image to a dedicated image processing system. Based on pixel distribution, brightness, color, and other information, it is transformed into a digital signal. The image system performs various operations on these signals to extract the features of the target, and then controls the on-site equipment actions to make accurate judgments on the product based on the discrimination results.
Features
- High pixel industrial camera
- High resolution industrial lens
- High brightness LED strobe light source
- Artificial intelligence (Al) algorithm
- High performance GPU computing processing unit
- High resolution industrial touch screen
- Customizable AI quality inspection platform
- Dual elimination system for classified elimination.
Inspection Defect Type

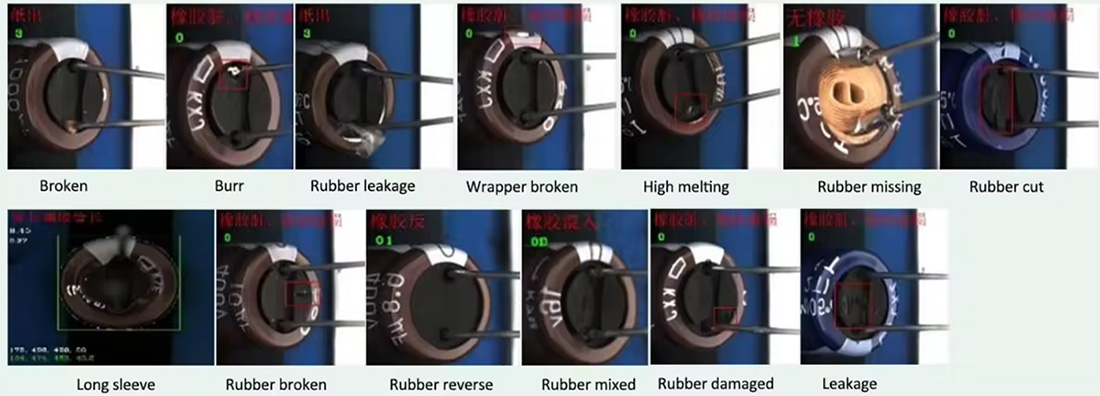

The intelligent AI capacitor visual defect inspection machine can perform full areas comprehensive inspection on the appearance defects of products, including conventional defects burr, rubber leakage, rubber broken, high melting, long sleeve, leakage, etc.
| Defect Types | Bulging, leakage, polarization, damage, protrusion, mixing, polarity reversal, etc |
| Inspection Positions | electronic component appearance defect, electrode, sealed rubber |
| Inspect Speed | Customized |
| Feeding Type | Vibration feeding |
| Precision | >0.01mm |
| Accuracy Rate | >99.9% |
| Compressed Air | 0.4Mpa~0.7Mpa |
| Net Weight | About 350Kg |
| Dimension | 1447*1931*800mm (without feeding device) |
| Power | 7Kw |
