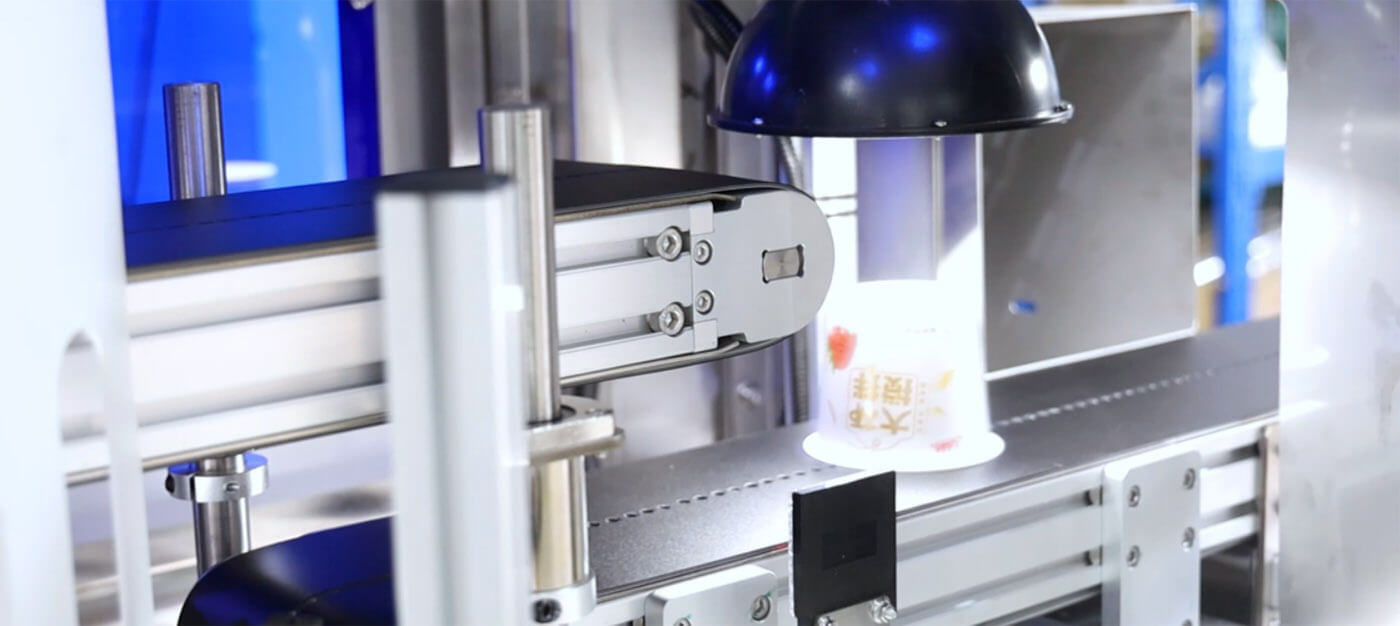

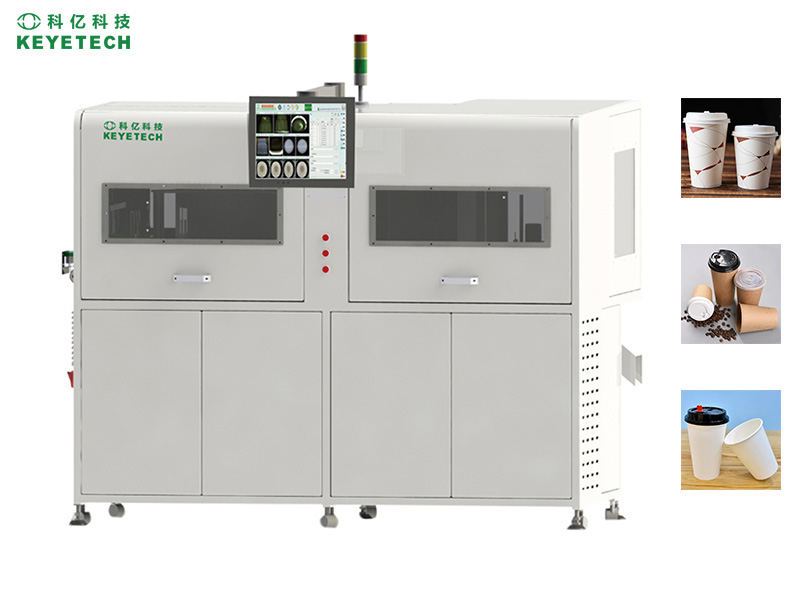

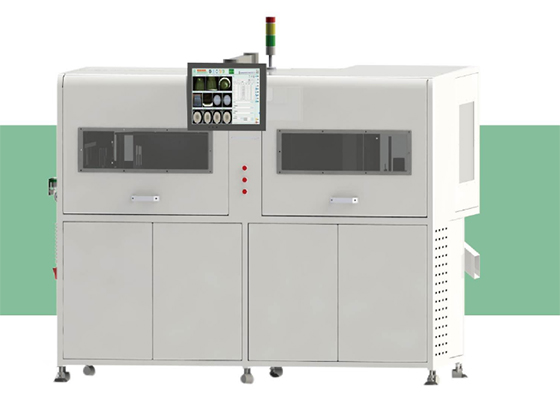

KVS-PP-06C Automatic Paper Plastic Quality Inspection Machine is a full automatic equipment for in-molding label product appearance defect detection, the standard configuration is 10 industrial cameras for the full area inspection and customized lens. The inspected product is stably and orderly transmitted to a specific workstation through a material handling (feeding) device, and the high pixel sample images captured are transmitted to image processing software through customized Led light sources and industrial cameras.



The corresponding pneumatic components are controlled to reject the defective products online, and the good products are counted and packaged directly, or transferred to the next production stage.



IML cup visual inspection machine is worked as in-line inspection normally, the inspection part will connect to existing IML production line and the software will open up sample comparison standards, and production personnel at the customer’s site can control the comparison accuracy, select the most suitable accuracy standard for their own production situation, and thus control the defect rate.



• Modularization embedded processing unit
• Surging computing power NPU chip
• Cloud platform for remote operation&maintenance
• Self-developed hardware and software system
• High compatibility with various product kinds

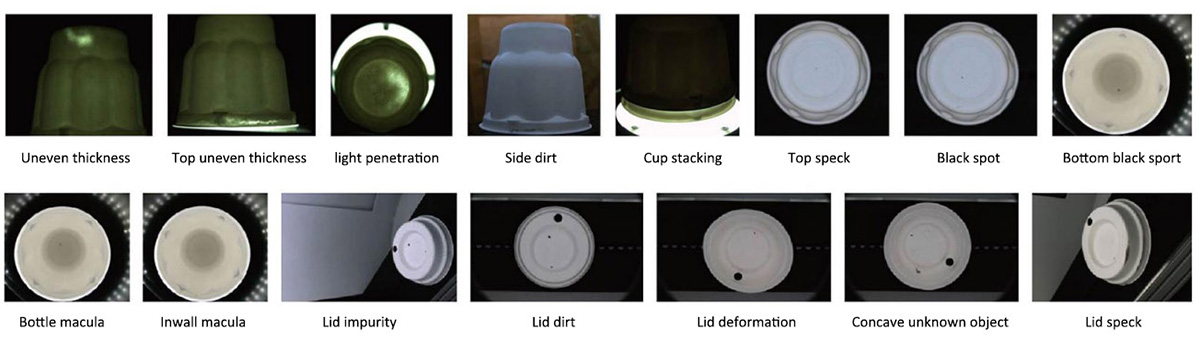

Inspection Defect Type

The KVS-PP-06C Automatic Paper Plastic Quality Inspection Machine can perform full areas comprehensive inspection on the appearance defects of IML products, the conventional defect include black spot, crack, thread, flash, short shot, deformation, etc.
