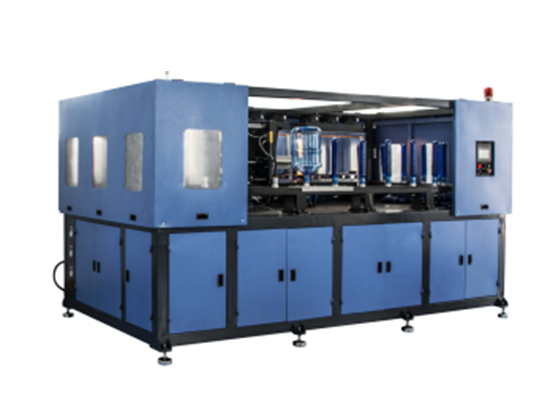

Name: L-BS511-A20 Five-gallon Automatic Bottle Blowing Machine (Maximum Blowing capacity 30L)
Brand: ZHEJIANG LEBAO PLASTICS EQUIPMENT FACTORY
SKU: 8f25302f90f34f3799d1788d3aeb0286
Price: 48930 USD
Availability: InStock
Rating: 4.8 (20 reviews)

ZHEJIANG LEBAO PLASTICS EQUIPMENT FACTORY

Taizhou, China

Product introduction
L-BS511-A20 Five-gallon Automatic Bottle Blowing Machine (Maximum Blowing capacity 30L)

(Packaging machine, automatic bottle taking, three-meter packaging and conveying)

PLC + Touch ScreenDelta Taiwan, China 1

Stretching Cylinder Self - produced by the factory Taizhou, Zhejiang 1

Mold Closing Cylinder FESTO Germany 1

Preform Inversion Cylinder FESTO Germany 1

Preform Inversion CylinderFESTO Germany 1

Track CylinderFESTO Germany 1

Track Buffer CylinderFESTO Germany 1

High - Pressure Blowing Solenoid Valve Parker USA 2

Low - Pressure Working Solenoid Valve FESTO Germany 19

High - Pressure Check Valve FESTO Germany 2

High - Pressure Blowing Solenoid Valve Parker USA 4

Oil Mist Separator FESTO Germany 1

Relay Omron Japan 1

Relay Schneider France 1

Loading Motor 180W Wenzhou, China 1

Sorting Motor 60W Wenzhou, China 1

Bad Blank Handling Motor 40W Wenzhou, China 1

Air Switch 100A (3 - phase) Chint Electronics, China 1

Air Switch 60A (single - phase) Chint Electronics, China 1

Tube LightL630mm, 1500W Zhejiang, China 16

Exhaust Fan 3" ORIX 2

Exhaust Fan MRW18 - TTA ORIX

Start Button Chint, China 1

Indicator Light Chint, China 1

Pressure Gauge ZKD - 6000 Zhenyu, Taizhou, China 18

Temperature Gauge XMTD - 9000 Zhenyu, Taizhou, China 4

Tell Us What You Need

History search

Fuzzy search

ZHEJIANG LEBAO PLASTICS EQUIPMENT FACTORY

Product introduction
L-BS511-A20 Five-gallon Automatic Bottle Blowing Machine (Maximum Blowing capacity 30L)

(Packaging machine, automatic bottle taking, three-meter packaging and conveying)

Product material

PET

Theoratical output Pcs/hr

180-350

Max bottle diameter mm

300

Max bottle height mm

490

Bottle neck size mm

55

Clamping force mm

370

Stretch stroke mm

650

Bottom stroke mm

30-70

Central distance mm

220

Heating power KW

45

Working pressure Mpa

0.7

Blowing pressure Mpa

2.5-3.0

Voltage

3P 380V/220V 50HZ

Machine size mm

400022502200

Machine weight KG

3500

Product Description

Technical Parameter

Configuration List
