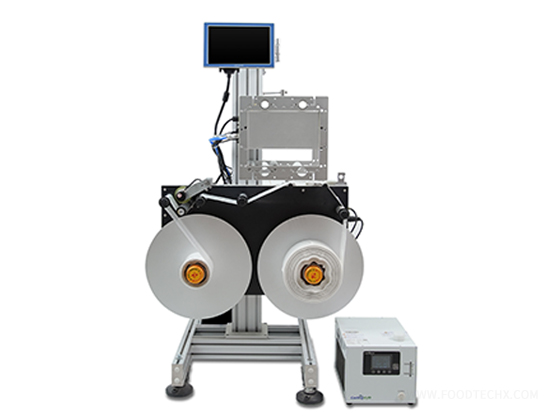

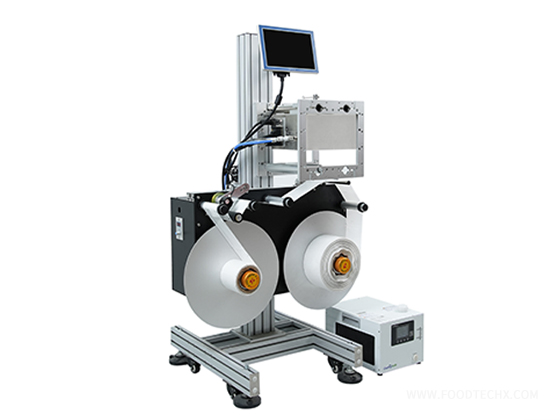

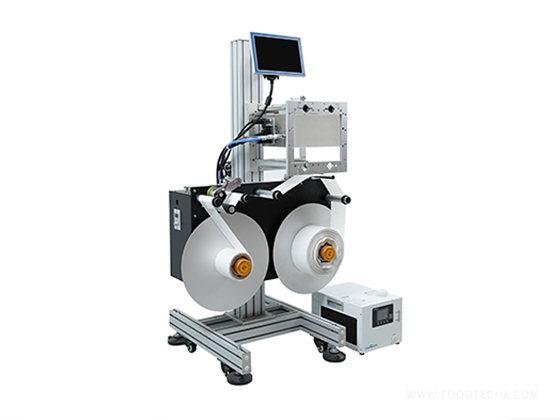

L3000 Series 5W UV Laser Marking Machine
- Ultra-compact main unit: 290×213×135mm, flexible for line integration.
- Permanent etching resistant to oil, water and high temperature, zero consumables and low maintenance.
- 5W water-cooled UV laser with 355nm wavelength, scanning speed 5000mm/s, repeat positioning accuracy 0.01mm, power consumption ≤900W, IP43 protection.
- Cold processing protects materials, intelligent power monitoring, multi-language interface, and Ethernet remote monitoring.

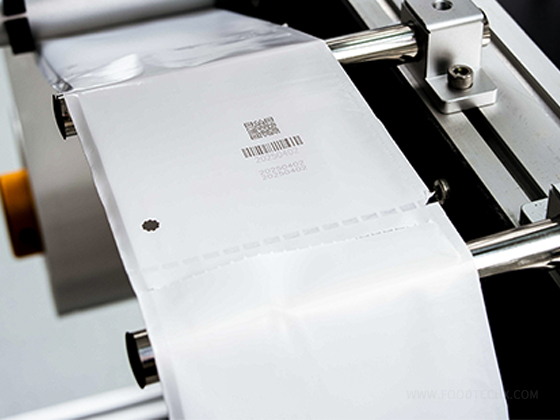

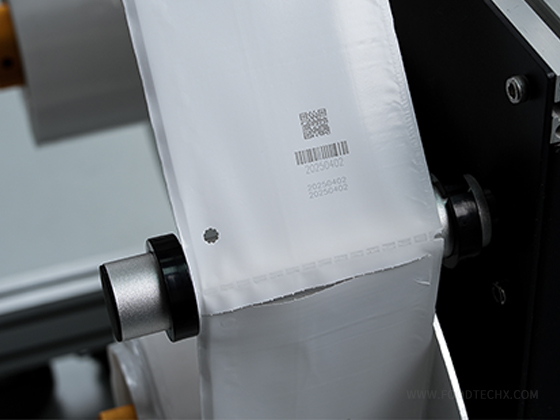

- Suitable for PET / plastic packaging, snack / pharmaceutical / biscuit packaging, flexible printed circuits, etc.
Model:
L3005U - 355W - 1P43
Laser Energy (Laser Power):
5W
Positioning Mode:
Preview
Marking Lines:
Unlimited
Character Height:
0.6 mm to maximum marking range
Minimum Line Width:
0.02 mm
Repeat Positioning Accuracy:
0.01 mm
Languages:
Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Russian, Spanish, Persian, etc.
Fonts:
Standard font library including Chinese, English and numbers (freely replaceable)
Graphic Formats:
JPG, BMP, PNG, DXF, DWG, PLT, AI
Barcodes:
EAN8, EAN13, CODE39, CODE128, GS1-128
Marking Area:
Standard (70*70 mm), optional (70–300 mm)
Galvo Scanning Head:
High-precision 2-axis digital scanning system
Controller:
10.1-inch color display, industrial touch screen
Operating System:
Embedded Linux secure operating system
Cooling System:
Water cooling
Main Unit (LWH):
290*213*135 mm
Installation Method:
Bracket mounting (customizable)
Protection Grade:
IP43
Product Speed Monitoring:
Supports AB-phase encoder
User Interface:
Photoelectric signal, encoder signal, alarm signal, I/O (NPN, PNP, switch-type sensors)
Power Supply:
100V – 240V / 50 – 60Hz
Total Power Consumption:
≤ 900W
Laser Main Unit Material:Stainless steel
Controller Material:Aluminum alloy
Operating Temperature / Humidity:Ambient temperature 0℃ – 45℃, humidity ≤95%; non-condensing; vibration-free
Laser Lifespan:2–3 years under normal use
Water Chiller Package Size (LWH):420*320*280 mm
Water Chiller Gross Weight:12 kg
Machine Package Size (LWH):430*380*310 mm
Machine Gross Weight:12.3 kg
Laser Type:UV laser
Laser Wavelength:355 nm
Marking Speed:Depends on material, marking content and complexity.

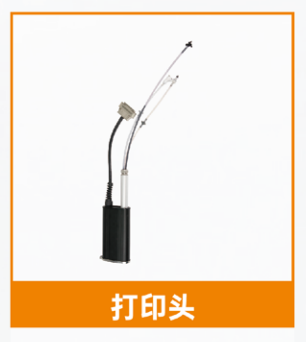

- Print Head

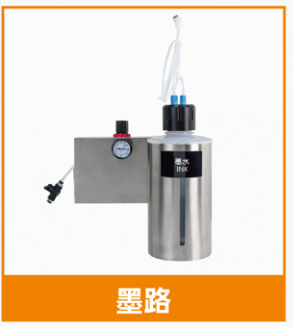

- Ink System

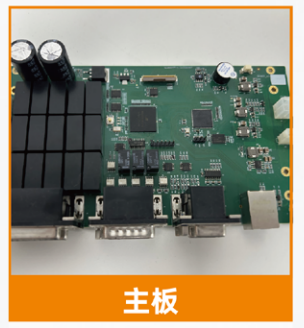

- Mainboard

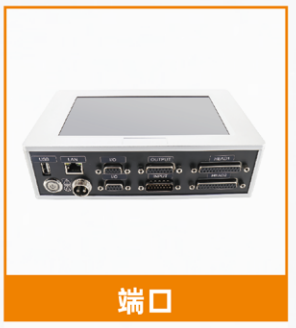

- Port
