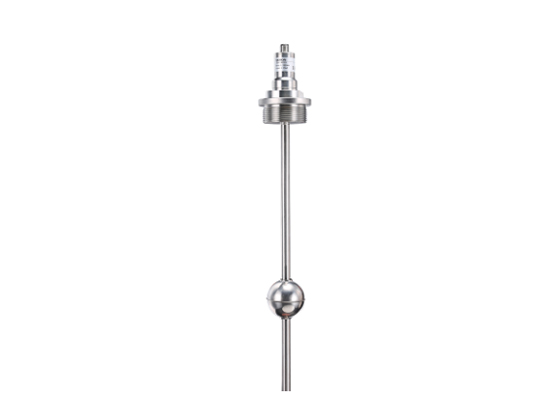

LA2000-Float Level Transmitter

The principle of LA2000 is that under the action of liquid buoyancy, the floating ball with magnetic steel moves up and down along the guide rod, and the magnetic switch in the guide rod is continuously triggered. The magnetic switch controls the number of resistance on or off, and the liquid level change is converted into resistance change. The resistance value is converted into standard electrical signal output and displayed after processing by the back circuit. The all-metal housing design enables the series to be used in a variety of industrial applications. A variety of connection methods can fully meet a variety of specific installation requirements.

Introduction

1. Economical liquid level transmitter

2. No impact on measuring from container inner pressure

3. Multiple outputs selectable

4. Easy to use, applicable to various medium

5. Stainless steel wetted parts

6. Measuring range up to 2m
