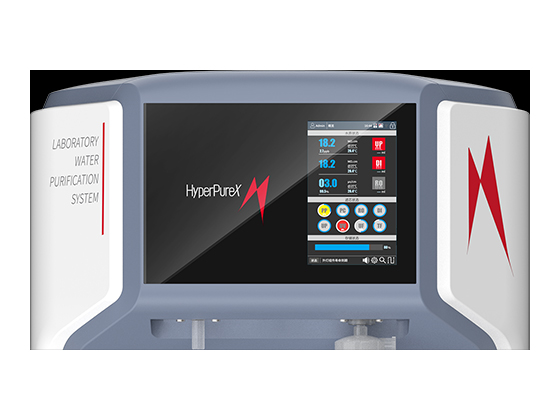

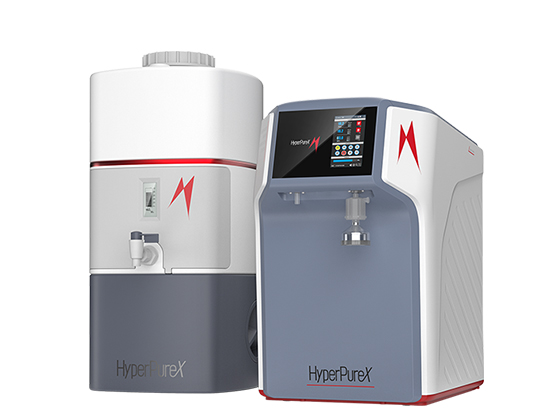

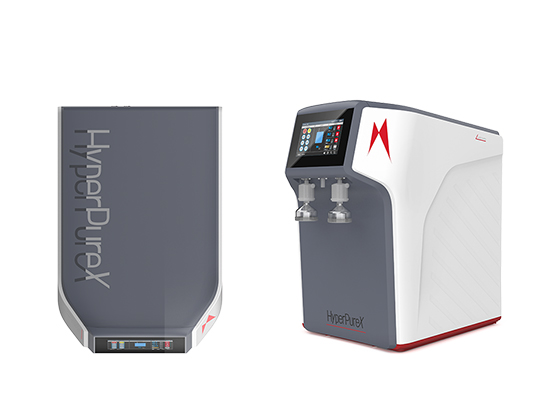

ShangHai, ChinaWith tap water inlet, using the innovative intelligent human-computer interactive control system and 5-inch colorful capacitive touch screen, integrating functions of Internet of Things (IOT) and cloud platform, embedding new purification cartridges with patented structure, stable and reliable single RO system, and DI ion-exchange cartridges with larger capacity, equipping with professional-grade pure water tank with 60-liter.
Name
Standard
Model
LU-20/40/60
Production rate[1]
20 series: 20 L/hour, 40 series: 40 L/hour, 60 series: 60 L/hour
Dispensing rate[2]
Up to 2 liters/minute
Resistivity(25℃)[4]
18.2 MΩ.cm
Conductivity(25℃)
0.055 μs/cm
TOC
5 ppb[6]
Particles[8]
<1 /ml (>0.2μm)
Bacteria[9]
<1 cfu/1000ml
endotoxin[10]
N/A
RNases[10]
N/A
DNases[10]
N/A
Protease[10]
N/A
Resistivity(25℃)[4]
>16 MΩ.cm
Conductivity(25℃)
<0.063 μs/cm
Particles[8]
<1 /ml (>0.2μm)
Bacteria[9]
<0.01 CFU/ml
Ion rejection rate
98%-99%(with new RO module)
Organic rejection rate
>99%(MW>300 Dalton)
Particles and bacteria rejection rate
>99%
Water source type
Tap water
Pressure
1-6 bar
Temperature
5-40 ℃
Conductivity
<2000 μs/cm
Total hardness(in CaCO3)
<300 ppm
TOC
<2000 ppb
Free chlorine
<3 ppm
PH
4-10
Dissolved CO2
<30 ppm
Power supply
200-240V,50/60Hz
Total Power
20 series: 120W, 40/60 series: 240W
Dimension (L×W×H)
Main host: 370×623×600mm Tank: 392×518×772mm
weight
Main host: about 29KG Tank: about 16KG
Standard configuration
Main host 1 set All cartridges 1 set 60-liter water tank 1 set

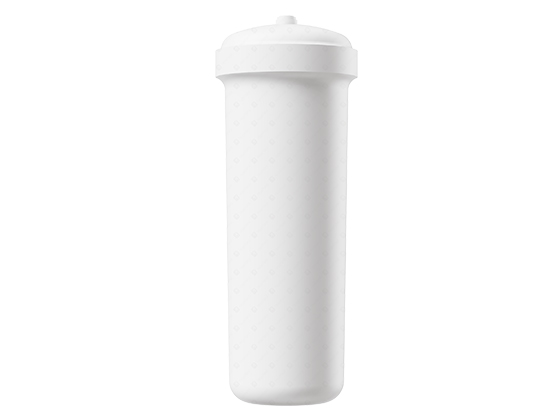

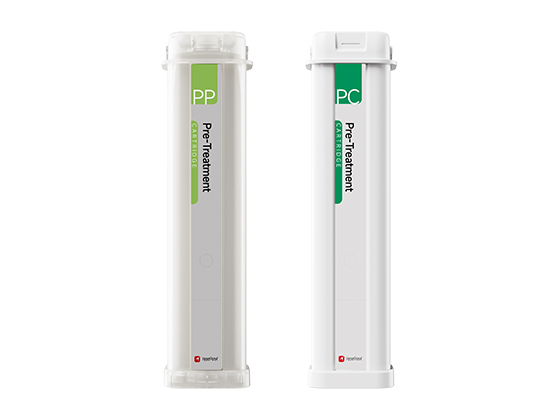

- Powerful 12-inch pretreated cartridge

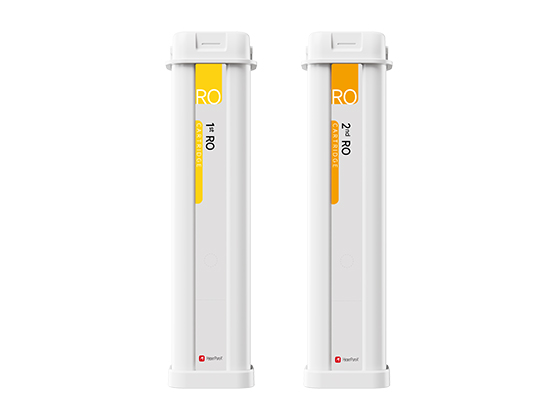

- Rigorous double RO system[1]

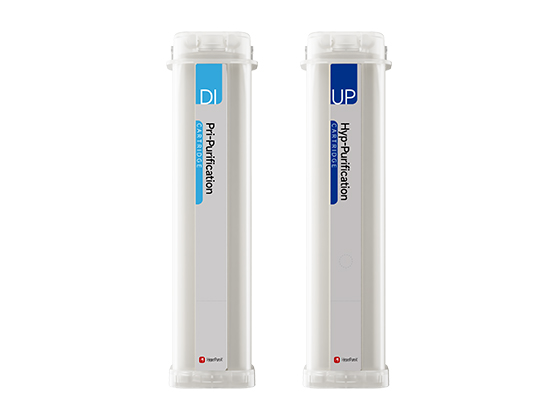

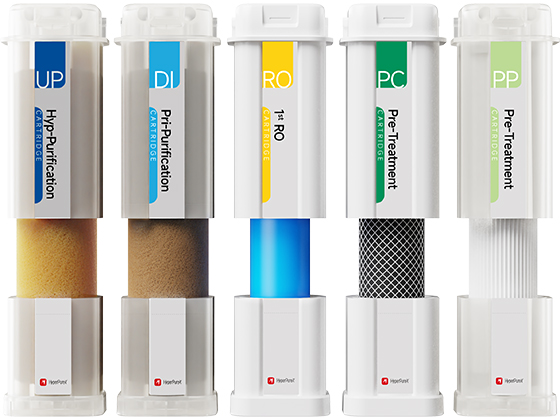

- High performance purification cartridge

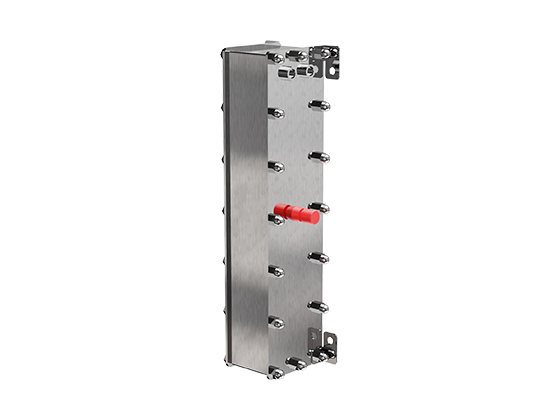

- Professional mini EDI module[1]

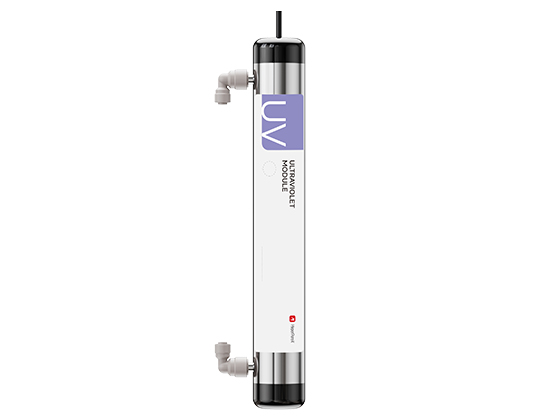

- Double wavelength UV module[1]

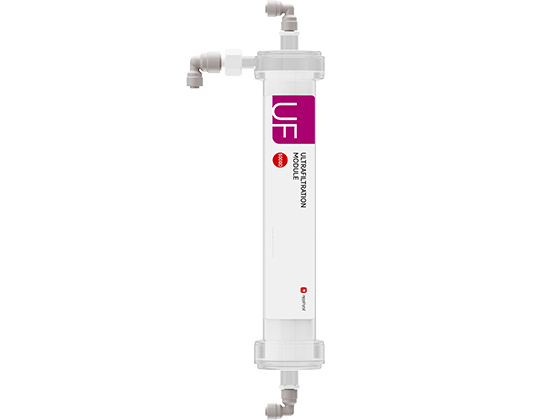

- Ultrafiltration module[1]

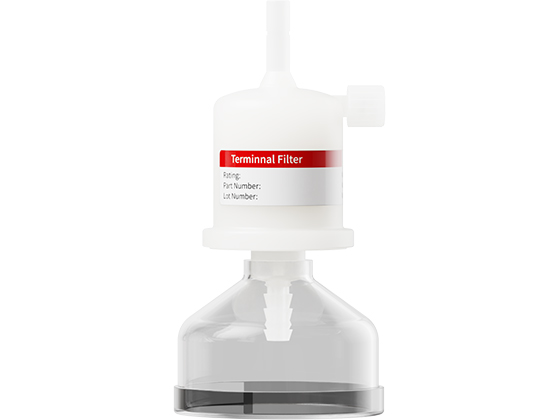

- MF terminal microfilter[[1]

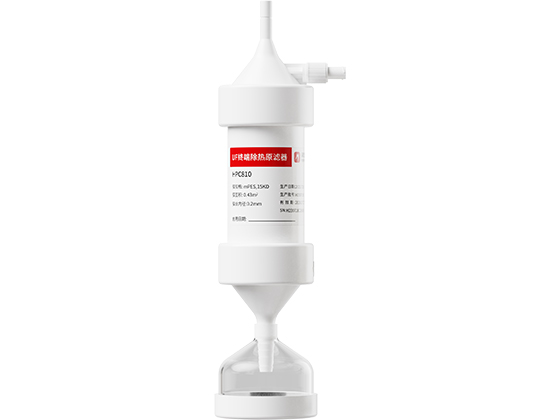

- UF terminal ultrafilter[1]

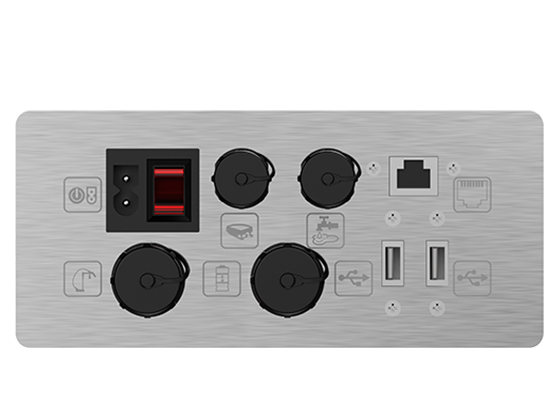

- Multiple communication interfaces[1]

- Built-in 1.8-liter pressure water tank[1]

- Innovative design of cartridge structure

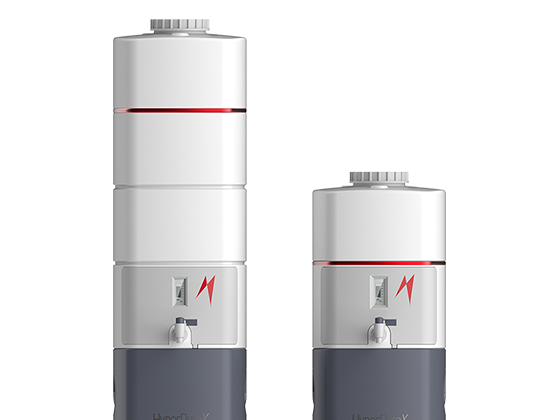

- Professional PE pure water tank

- All injection molded housing

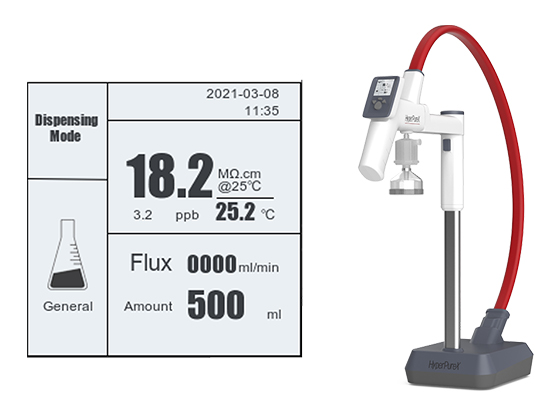

- Powerful HiDis water dispenser arm(Optional)
