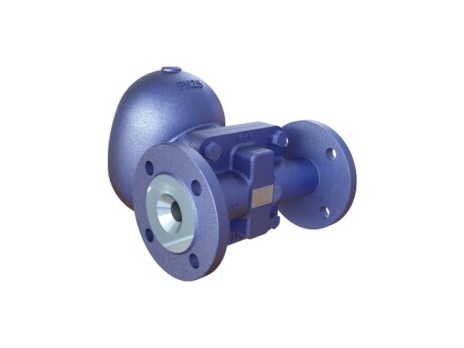

The SFT40AW Lever Float Steam Trap is designed for efficient condensate removal. It features a cast steel body and cover with all-stainless steel internals. The design incorporates wear allowances for long-term reliability and a special channel to prevent water hammer. It uses a patented flexible closing system and micron-level precision to ensure zero steam leakage. Includes an integrated air vent, independent filter, and a bottom drain plug to prevent freezing during shutdown.
Home/Accessories/Consumables/Mechanical/Valve/Lever Float Steam Trap/

VMV Newton
,Nominal Pressure
PN25
Max Allowable Pressure (Shell)
2.45 MPa/200°C
Max Allowable Temperature (Shell)
450°C/1.03MPa
Factory Steam Action Test
>3 times/1.6MPa
Max Working Pressure
1.6 MPa
Max Working Temperature
350 °C
Factory Cold Test Pressure
3.8 MPa
Air Tightness Test Pressure
2.0 MPa
Cover Material
A105/F304/F316
Body Material
WCB/CF8/CF8M
Valve Seat Material
Martensitic Stainless Steel
Valve Disc Material
Martensitic Stainless Steel
Other Internals Material
Austenitic Stainless Steel
Nominal Size
DN25-32
L
210 mm
H
254 mm
H1
107 mm
W
315 mm
Weight
20 kg
CoverA105/F304/F316
BodyWCB/CF8/CF8M
Valve SeatMartensitic Stainless Steel
Valve DiscMartensitic Stainless Steel
Other InternalsAustenitic Stainless Steel

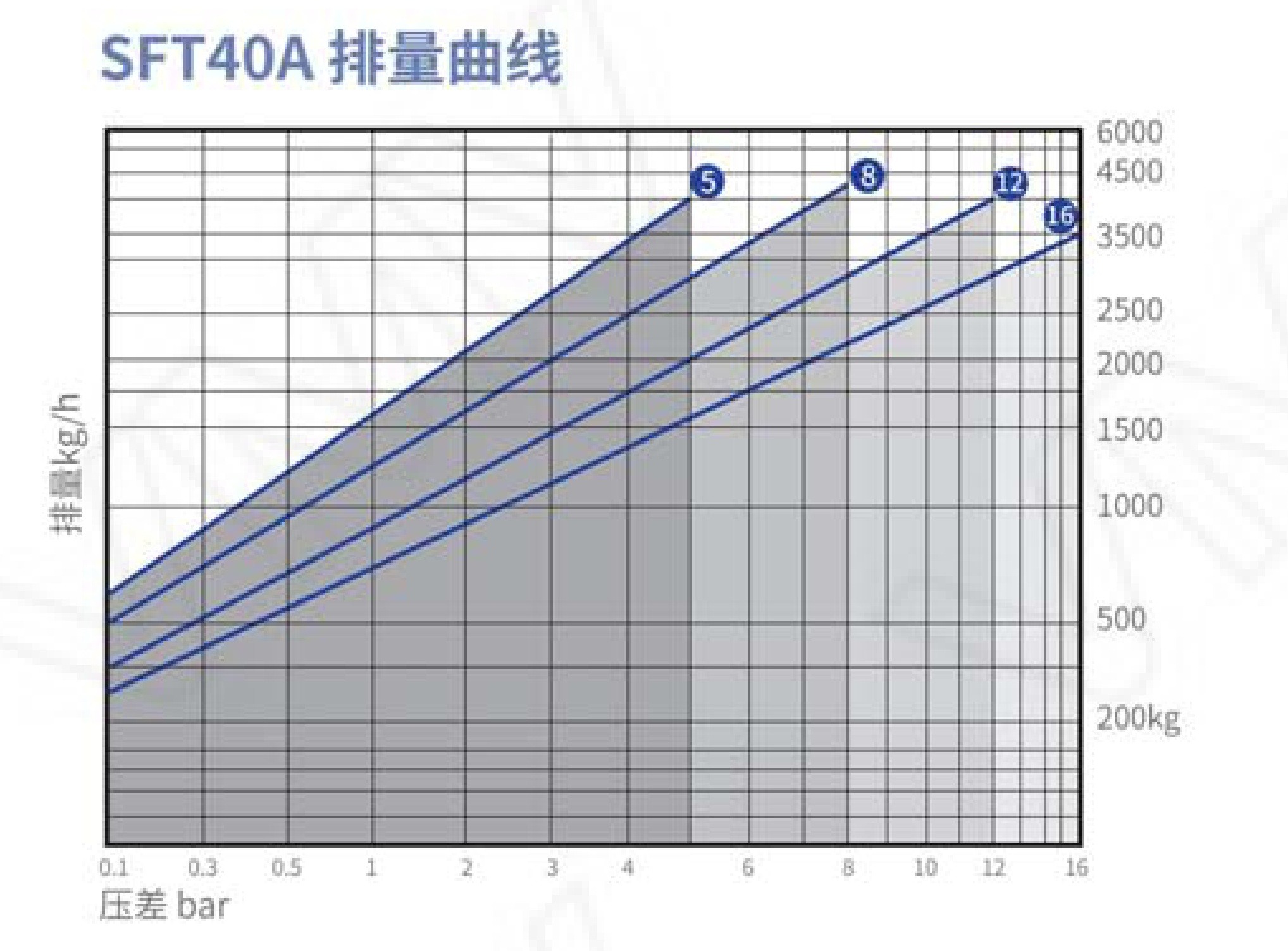

- SFT40A 排量曲线
