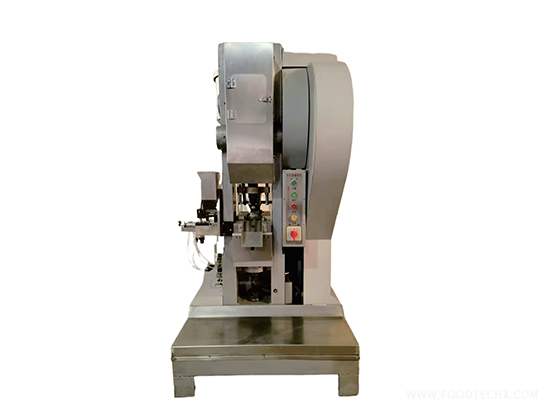

Home/Food Processing Equipment/Peeling machine/Lollipop tablet press---XL-320/

Shantou Hexin Da Machinery Co., Ltd.
, ChinaNumber of Die Sets
1 set
Max Tablet Compression Force
15 kN
Max Tablet Diameter
Round tablet: 40 mm
Diameter of Upper and Lower Punches
30 mm
Length of Upper and Lower Punches
135 mm (Upper Punch) / 140 mm (Lower Punch)
Middle Die Diameter
98 mm
Middle Die Thickness
50 mm
Rotational Speed
32-45 rpm (adjustable)
Production Capacity
Double-tablet output: 3820-5400 pcs/hour / Single-tablet output: 1920-2700 pcs/hour
Machine Noise
No-load: 50 dB; Full-load: ≤70 dB
Machine Dimensions
1100 × 1000 × 1760 mm
Machine Net Weight
880 kg
Electric Motor (Nanjing Global)
:
Model
YDT132M-8/6
Power
3/3.3 kW
Rotational Speed
730-970 rpm
Product Description
Technical Parameter
Tell Us What You Need
