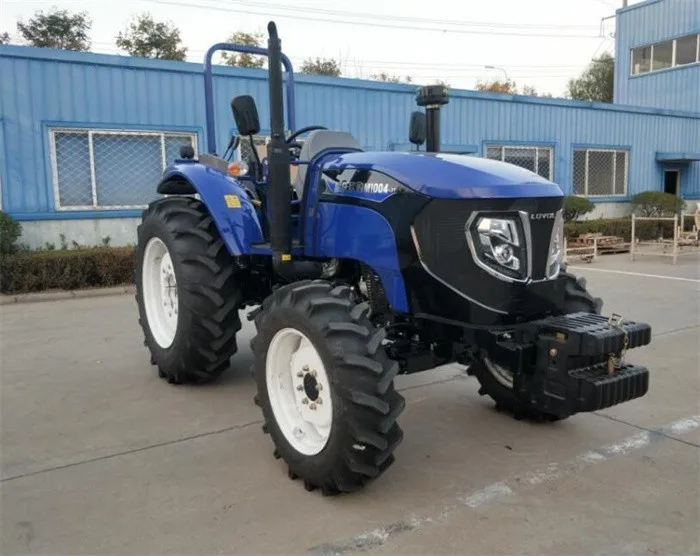

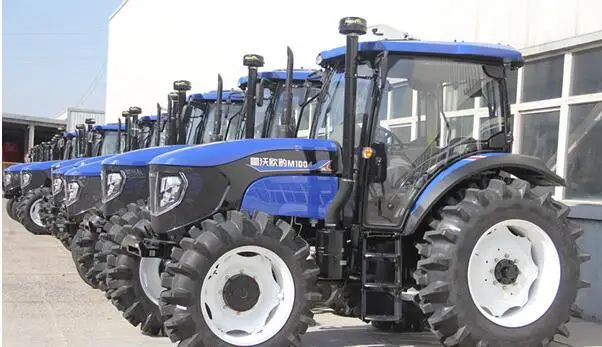

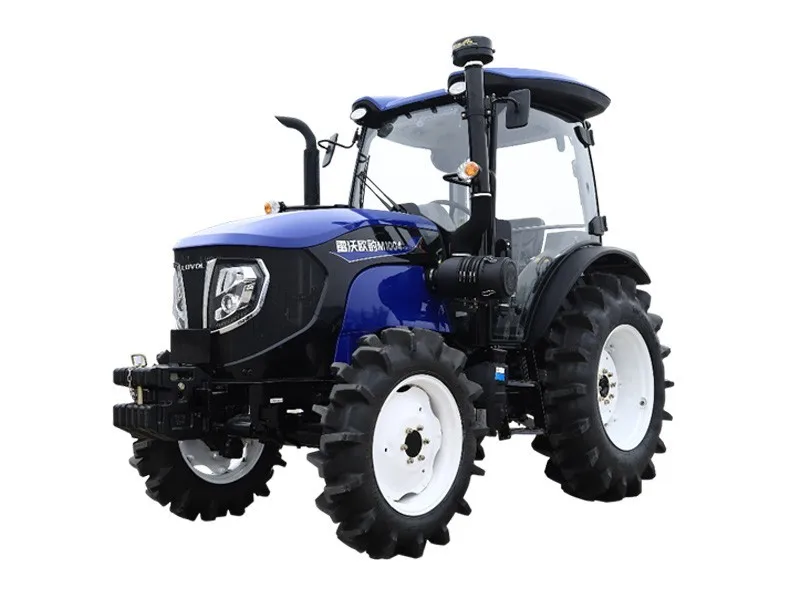

The M1004-3B Low fuel consumption Farm amphibious tractor features a newly designed third-generation body, boasting a novel and elegant appearance while incorporating Lovol brand DNA and exhibiting distinct family characteristics. The newly developed third-generation cab is aesthetically pleasing and, combined with a redesigned shock absorption and noise reduction system, makes the cab more comfortable and quiet. The OECD-certified cab also effectively ensures the safety of the driver and passengers. The optimized control platform, newly developed third-generation floor and safety frame, adjustable steering wheel, and luxurious, spacious seat with height and fore-and-aft adjustments significantly improve driving control and comfort.

National III Engine Configuration, More Powerful

The M1004-3B Low fuel consumption Farm amphibious tractor is equipped with a Lovol Power 1004D turbocharged National III diesel engine, employing electronically controlled unit pump technology. Through ECU precise control of injection timing and quantity, it achieves lower fuel consumption and stronger power. The two-stage air filtration system, near-end exhaust system, and enlarged cooling system effectively extend engine life.

Upgraded Transmission System for Enhanced Reliability in Paddy Field Operations

In terms of traditional aspects, increased disc spring clamping force and modified spline structure ensure smooth starting in paddy field operations. Modifications to the spline structure of the gearbox input shaft and PTO input shaft, along with increased strength in the power output shaft and other components, guarantee the service life of the gearbox and power output transmission assembly. Adjustments to the rear axle housing, drive shaft, and internal wall positions have improved chassis strength. The centrally located hydraulic cylinder front drive axle provides high driving force, and the increased wheelbase effectively reduces the turning radius, making paddy field operations more agile. Enlarged brake housings, friction pads, and extended rocker arms further meet the braking performance requirements of 100 horsepower tractors. Furthermore, a waterproof and dustproof wet brake specifically developed for paddy fields addresses the structural issues of oil leakage and poor braking performance common with traditional tractors operating in deep mud, thus improving braking performance in paddy field operations.

Further improvements to the hydraulic and electronic control system enhance reliability.

The hydraulic system employs an independent oil supply system, effectively ensuring the cleanliness of the hydraulic oil and meeting heat dissipation requirements, significantly improving the system's reliability. The use of 24° conical O-ring seal technology further enhances the reliability of the oil pipe seals. A dual-pressure height limit lifter with a two-way valve better meets diverse operational needs. The new combination instrument panel adds multiple fault and indication functions, providing users with a more comprehensive and intuitive understanding of the M1004-3B Low fuel consumption Farm amphibious tractor's status. For the special environment of paddy field operations, waterproof wiring harness connectors are included, ensuring more reliable electrical control wiring harness connections in humid conditions.

Parameters:
