MS6,MS5 series servo motonHigh protection grade light weight designhigh-precision positioning
Home/Accessories/Consumables/Electrical/Servo system/MS6S-80 CS/CM30B(Z)3 servo motor AC220/
Product Characteristics 1
WUXI XINJE ELECTRIC CO.,LTD
, ChinaModel :
MS6S-80 CS/CM30B(Z)3 21P0
Rated power (kW)
1Kw
Rated speed (rpm)
3000
Max speed(rpm)
4000
Rated torque (N·m)
3.18
Max torque(N·m)
9.54
Rated current(mA)
4100
Rotor inertia(10^-7kg·m')
1182(1196)
Inertia type
Low inertia
Recommended rotor inertia ratio
30
Electrical constant te(ms)
5.89
Mechanical constant te(ms)
0.53
EMF constant Ke(mV/rpm)
75
Torque constant Kt(Nm/A)
0.78
Pole of pairs
5
Encoder bit
17
Encoder type
magnetism(photoelectricity)
Motor insulation grade
ClassF(155°C)
Protection level
IP67
Use envorinment Ambient temperature
-15°C~+40"C (no freezing)
Use envorinment Ambient humidity
Relative humidity <90% (no condensation)
- Brake specification
- MS6 series T/N curve
- MS6 series T/N curve
- Naming rule
- Motor and drive specifications
- Drive and motor modellist

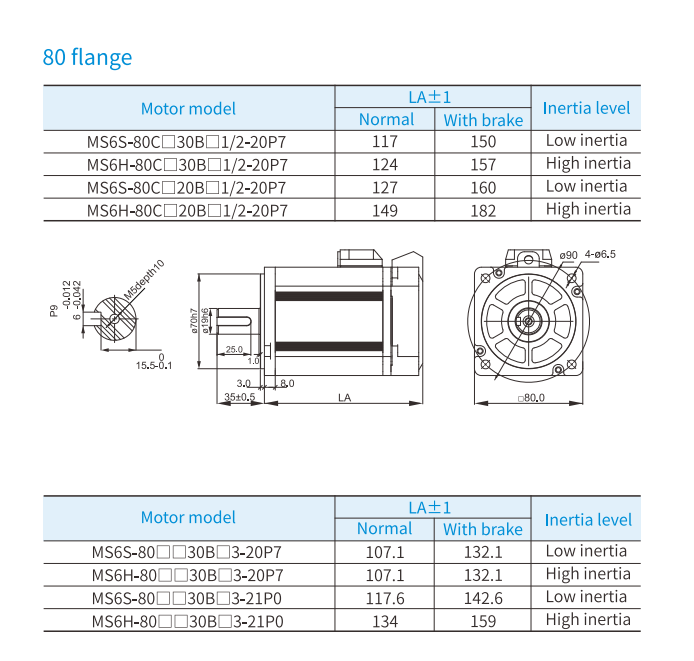

- 80 flange
- Smaller size,savinginstallation space
- High speed response
- Quick adjustment to shortenpositioning time
- High speed pulse input
- Active/manual vibration suppression
- S-type acceleration and deceleration curve
- Wide power range
- Full closed-loop input
