Investment casting for body and cap. Full bore design with DIN3202-M3 length standard.
Thread: ISO, BS, DIN, JIS, ASME
Pressure rating: 1000 PSI (PN63)
Working temperature: -25℃~+180℃
Material: CF8M, CF8, CF3M, WCB

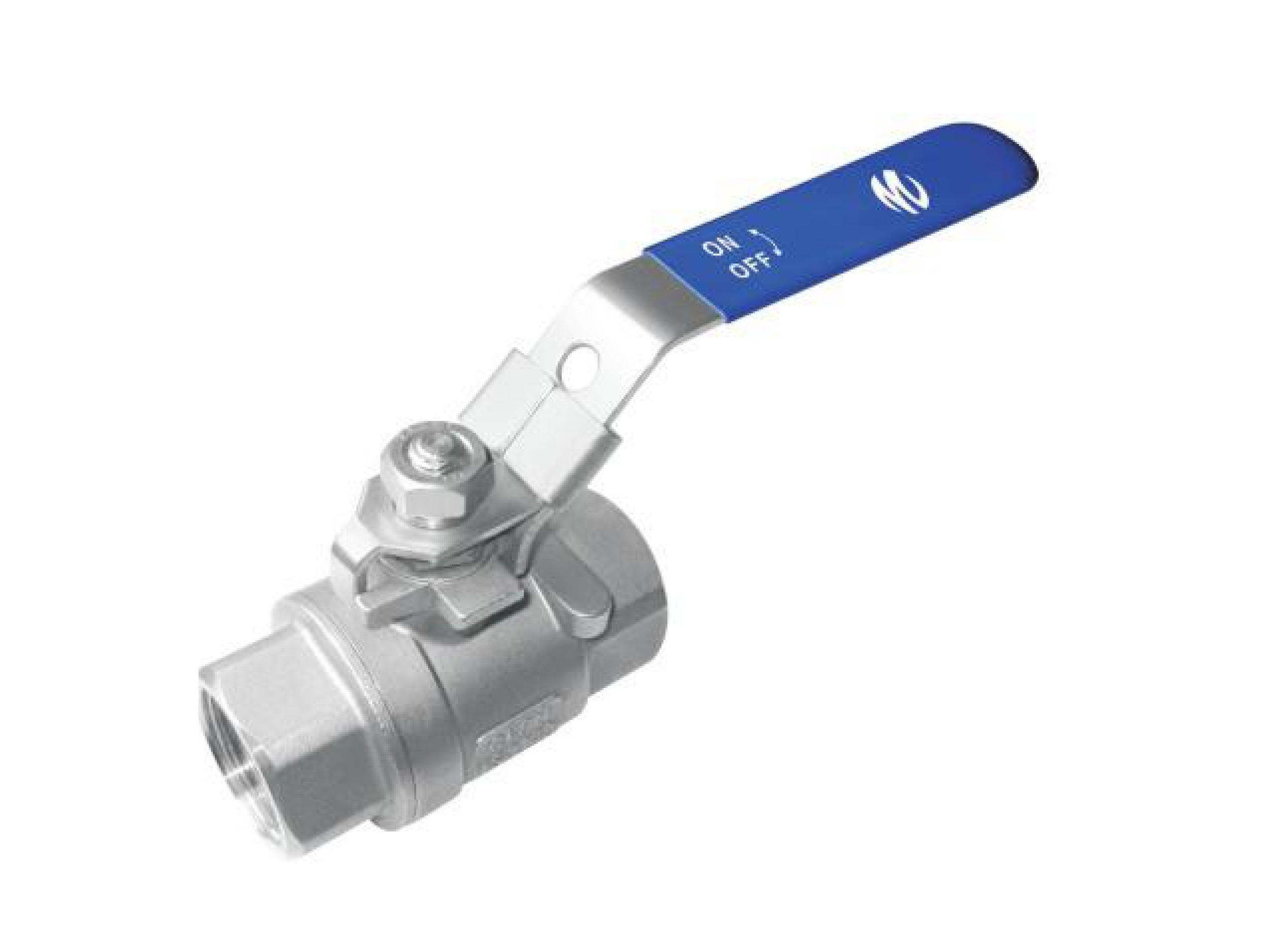

Home/Accessories/Consumables/Mechanical/Valve/MV-23/1" 2-PC Ball Valve (DIN Length)/

Monva Valve
,Thread Standard
ISO, BS, DIN, JIS, ASME
Valve Length
DIN3202-M3
Nominal Pressure
1000 PSI (PN63)
Working Temperature
-25~+180 / -25℃~+180℃ ℃
Length
DIN3202-M3
Pressure rating
1000 PSI (PN63)
Material
CF8M, CF8, CF3M, WCB
Bore
Full bore
d
25 mm
L
90 mm
H
78 mm
W
150 mm
Torque
10 N·m
Weight
0.78 Kgs
BodyCF8M
Ball SeatR-PTFE
BallSS316
Body GasketPTFE
CapCF8M
StemSS316
Thrust WasherPTFE
Stem PackingPTFE
Gland NutSS304
HandleSS304
Spring WasherSS304
NutSS304
Lock DeviceSS304
Handle CoverPLASTIC
MaterialCF8M / CF8 / CF3M / WCB

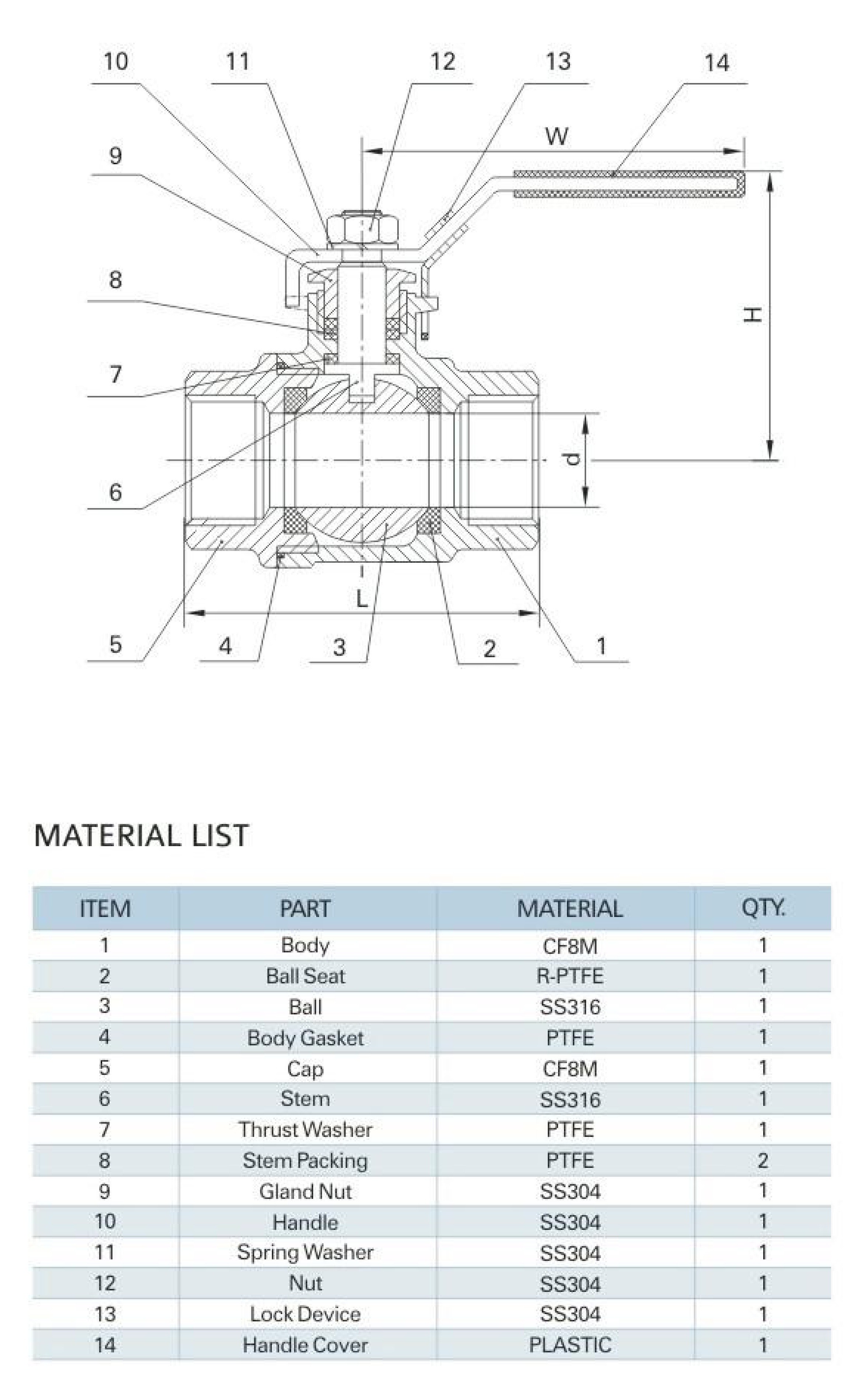

- MV-23 structure and materials

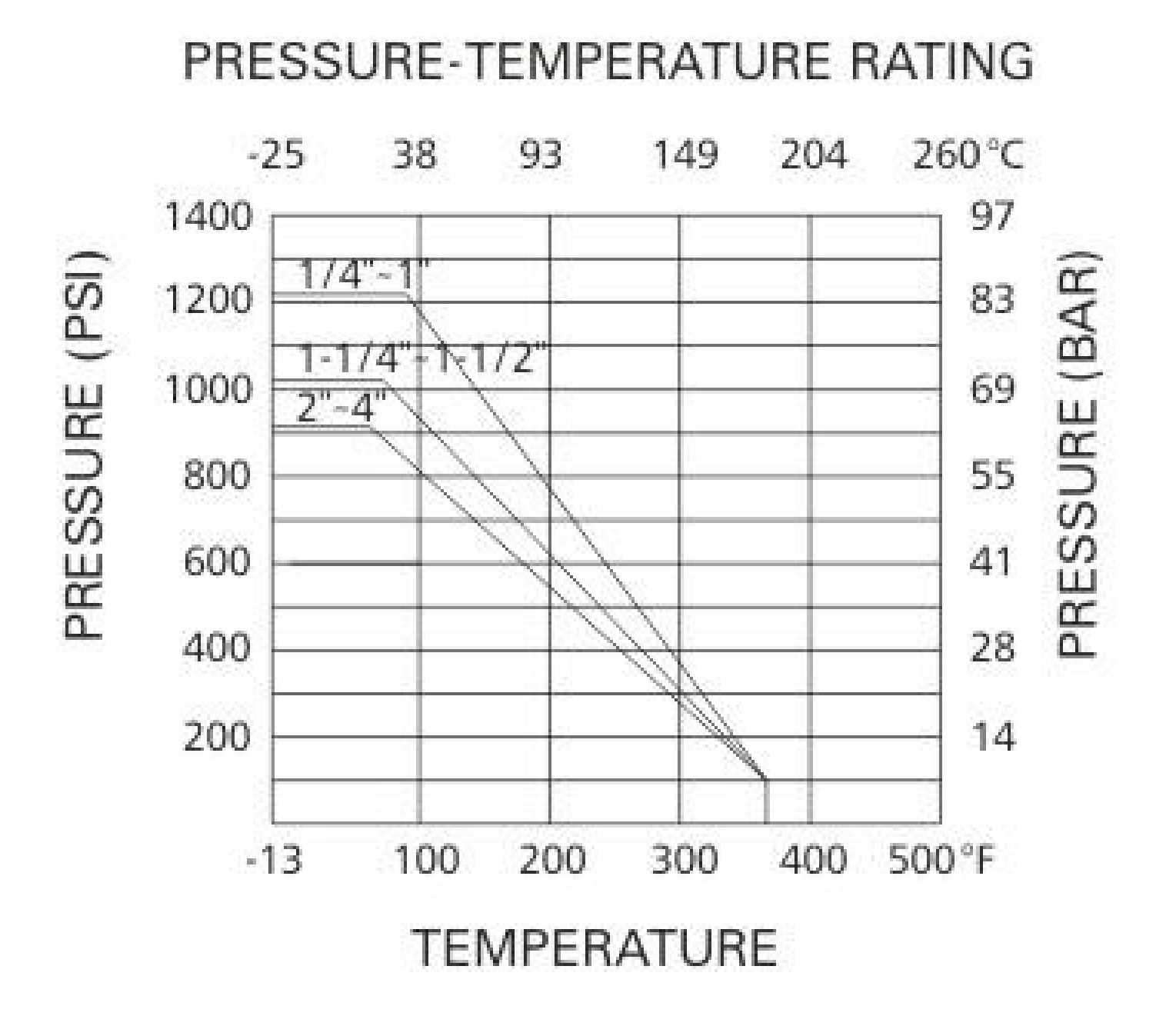

- Pressure-temperature rating

- Ball valve series overview
