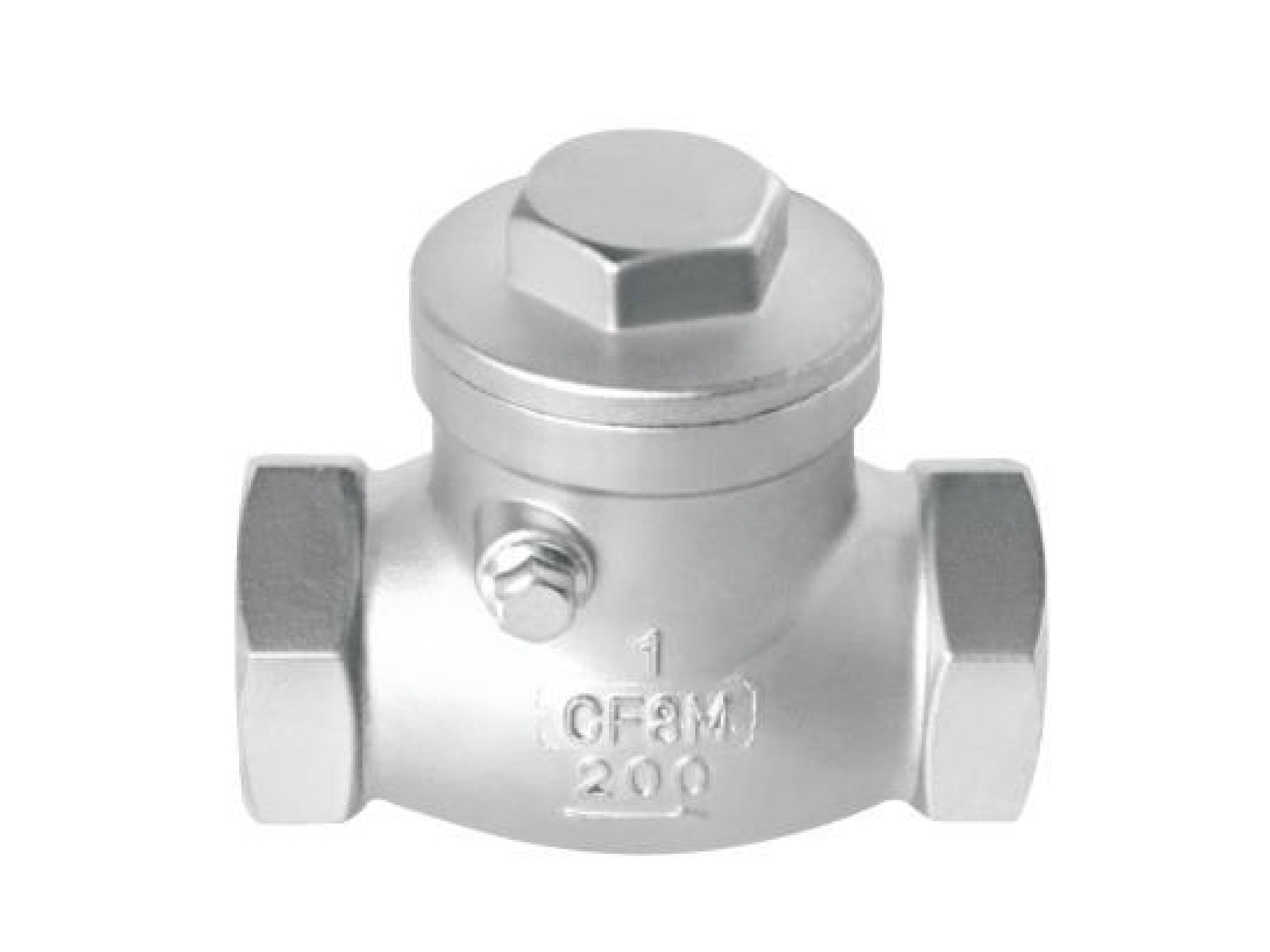

Investment casting for body, cap and disc. Features threaded connections compatible with ISO, BS, DIN, JIS, and ASME standards. Designed for a pressure rating of 200PSI (PN16) and working temperatures ranging from -25℃ to +180℃. Available in high-quality stainless steel materials including CF8M, CF8, and CF3M.
Home/Accessories/Consumables/Mechanical/Valve/MV-51/4" Swing Disc Check Valve/

Monva Valve
,Thread Standard
ISO, BS, DIN, JIS, ASME
Nominal Pressure
200PSI (PN16)
Working Temperature
-25~+180 / -25℃~+180℃ ℃
Pressure Rating
200PSI (PN16)
Material
CF8M, CF8, CF3M
d
94 mm
L
240 mm
H
136 mm
Weight
9.10 kg
BodyCF8M
DiscCF8M
Pipe PlugSS316
Plug GasketPTFE
Plug ScrewSS316
Body GasketPTFE
CapCF8M
MaterialCF8M / CF8 / CF3M

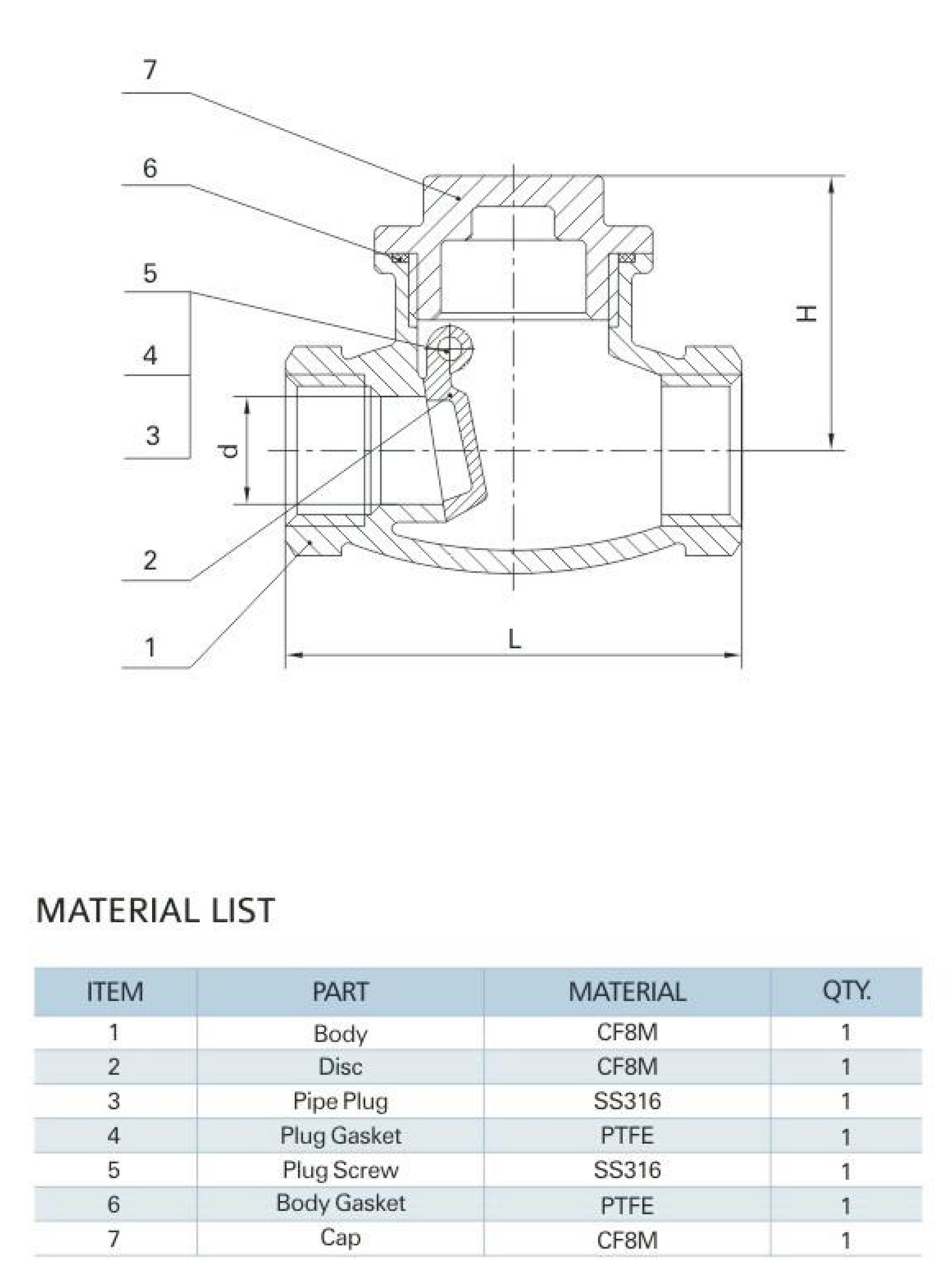

- structure and material list

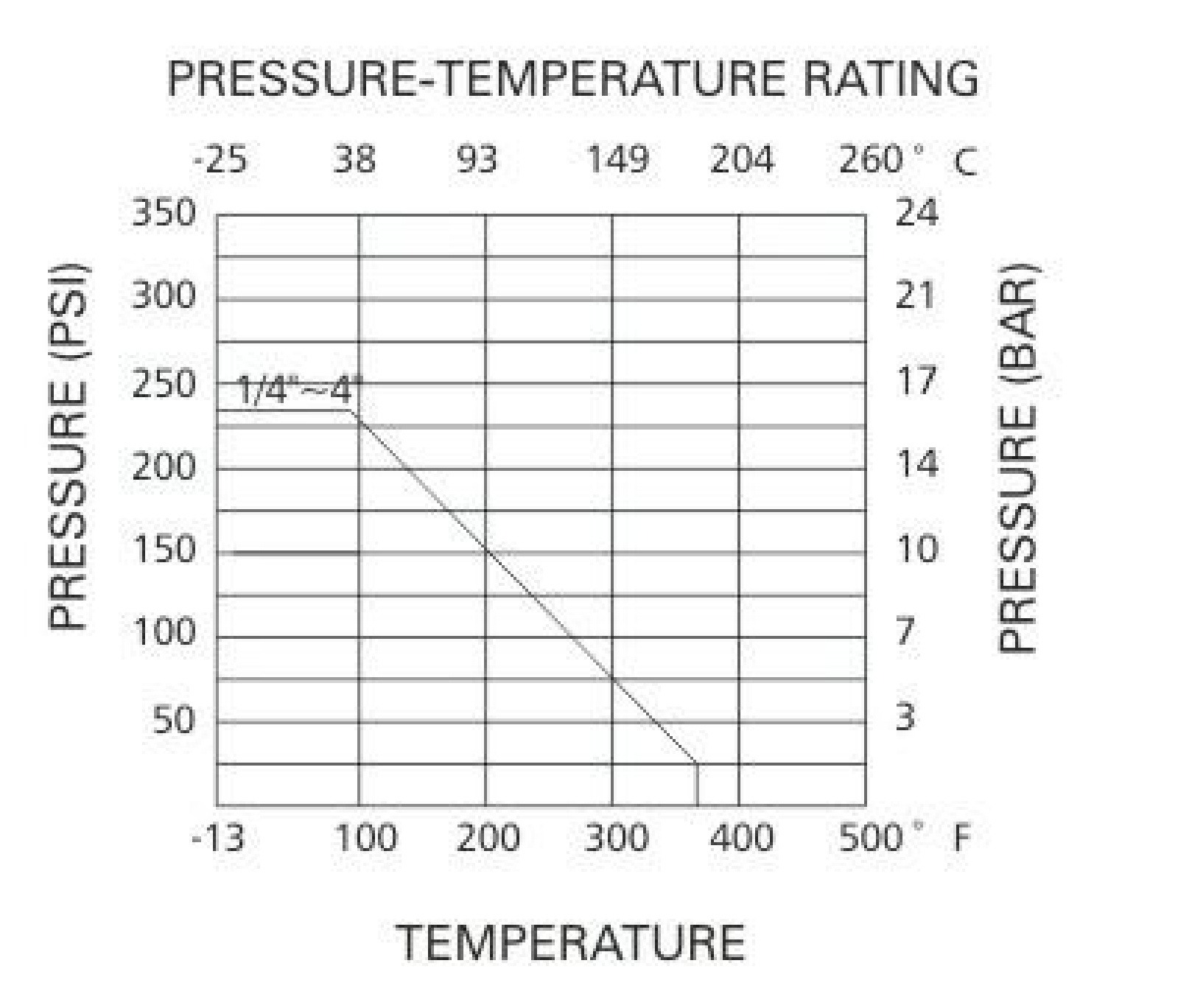

- pressure-temperature rating
