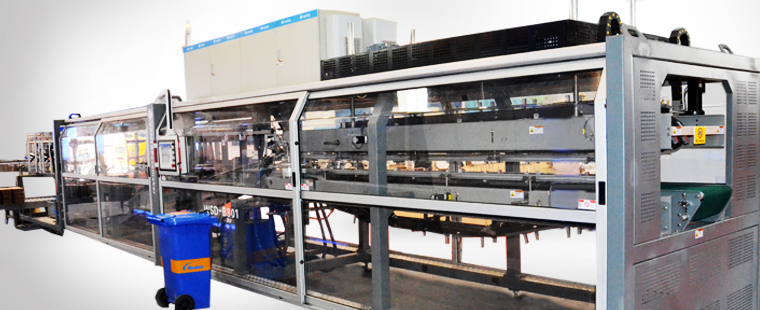

Wrap Around Case Packer is a full automatic machine to pack botles, cans and jars into cartons. it keeps stablty in continuous linear
operation and fits medium and high speed production line.

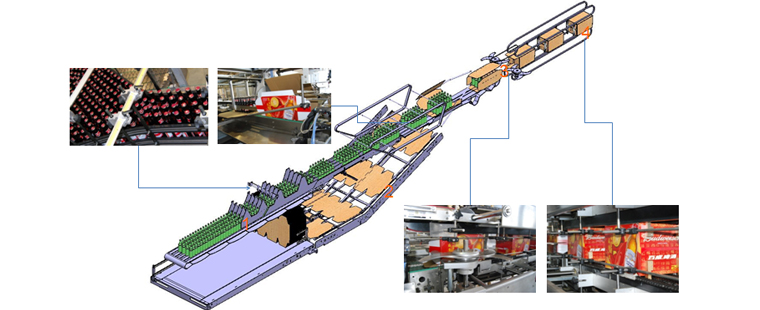

Working principle

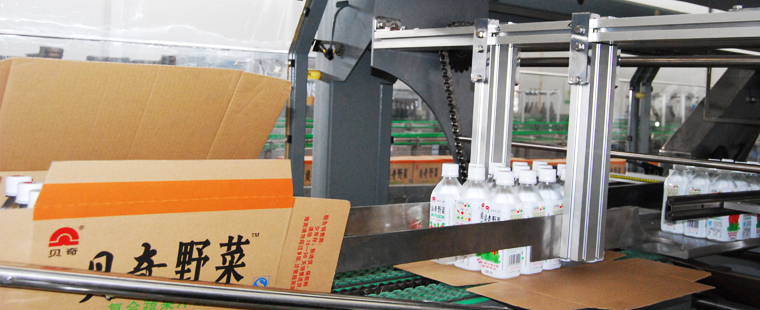

First, the feeding chain send products to bole grouping area where they be arranged in order for being packed. Second, the flatcardiboards are put into grouped products aer beling conveyed to the Synchronous transmisslon area. Finally, cardboards and productsare conveyed together for the rest steps to be packed and sealed.
Technical advantages
1. Low investment, quick return
2.Advanced device laypout
3.International general accessories
4. Lower waste, higher productivity
5.Easy operation, rapid replacement
6. User friendly interface
7.Complete after-sales service
|
Model |
WSD-MZB451 |
WSD-MZB651 |
WSD-MZB851 |
|
Capacity (packs/min.) |
45 |
60 |
80 |
|
Bottle grouping mode |
Servo-type |
Servo-type |
Servo-type |
|
Dimension |
11600*2000*2650mm |
15000*5000*2650mm |
16000*5000*2650mm |
|
Feeding belt length |
3620mm |
3620mm |
3620mm |
|
Min. Carton size |
200*170*90 |
200*170*90mm |
200*170*90mm |
|
Max. Carton size |
480*300*300mm |
480*300*300mm |
480*300*300mm |
|
Bottle diameter |
55-100mm |
55-100mm |
55-100mm |
|
Bottle height |
90-300mm |
90-300mm |
90-300mm |
