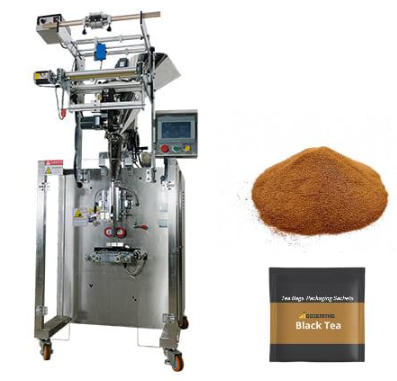

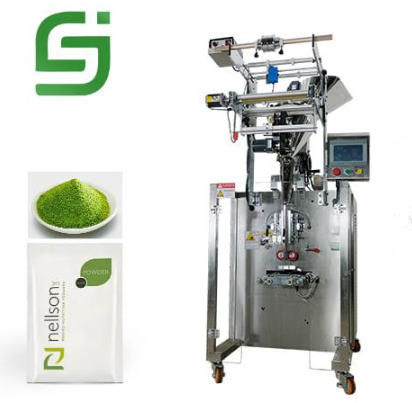

FuJian-XiaMen, ChinaMatcha powder packaging machine YS-65F is designed to automate the flling and sealing of small sachets containing matcha powder.
Features
- High Precision Weighing and Filling: Uses precise weighing and filing mechanisms to accurately measure and dispense matcha powder, ensuring consistent sachet weight.
- Adjustable Sachet Size: Allows adjustment of sachet size to accommodate different quantities, offering flexibility for various packaging needs.
- Automated Sealing and Cutting: Ensures sachets are sealed tightly and cut cleanly, maintaining freshness and preventing leakage.

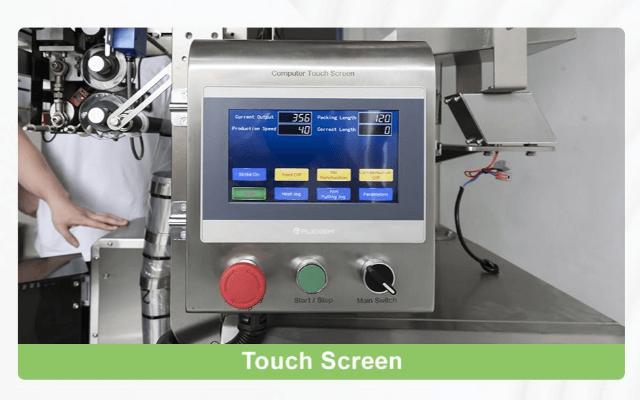

- User-Friendly Interface: Equipped with a touchscreen or control panel to easily adjust settings like sachet length, filing quantity, and production speed.
- Stainless Steel Construction: Often made of food-grade stainless steel for durability and compliance with hygiene standards.
- Anti-Clogging Design: Specially designed to handle fine powders like matcha without clogging the filling components.
- High-Speed Production: Capable of packing large quantities of sachets per minute, increasing efficiency and productivity.
- Nitrogen Flushing (optional): Some machines offer nitrogen flushing to maintain the freshness of matcha by reducing oxidation.
Functions
- Automatic Feeding and Dispensing: The machine automaticaly feeds matcha powder from a hopper and dispenses it into sachets with precision.
- Sealing and Temperature Control: Ensures airtight sealing of sachets and allows temperature control for optimal heat-sealing of matcha.
- Printing Date and Batch Codes: Can be integrated with a printer to add expiration dates or batch codes on each sachet.
- Error Detection and Alarms: Built-in sensors detect errors (like sachet jamming) and trigger alarms to alert operators
ensuring quality control. - Continuous Production: Some machines allow continuous sachet production without needing frequent operator intervention, ideal for large production runs.
| Parameter | Specification |
|---|---|
| Model | YS-65F |
| Measuring Range | 1 – 100 g (3 – 100 ml) |
| Bag Size (L × W) | 30 – 180 mm × 20 – 140 mm |
| Packing Speed | 30 – 60 bags/min |
| Dimensions (L×W×H) | 850 × 1100 × 1900 mm |
| Machine Weight | 220 kg |
| Total Power | 220V / 50Hz / 1.4 kW |
Measuring Scope
1-100g
Bag Size
(L):30-170mm (W):30-140mm
Packing Speed
30 – 60 bags/min
Dimension (L* W*H)
850 × 1100 × 1900 mm
Weight
220kg
Power
1.4kw

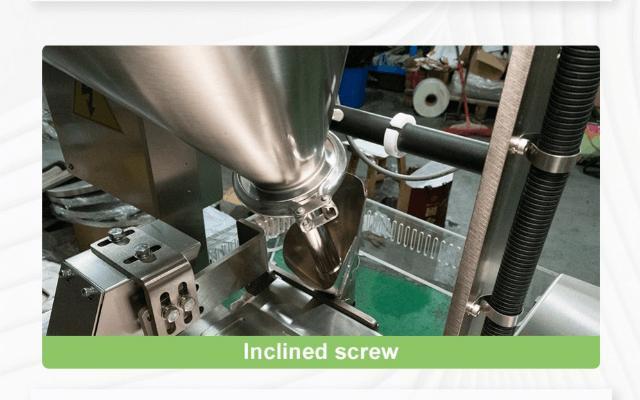

- Vertical screw
