Metal float flowmeter

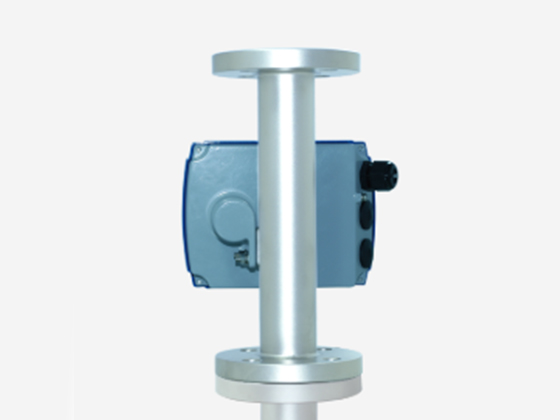

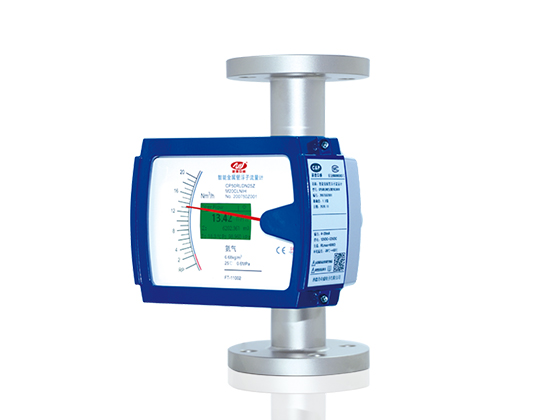

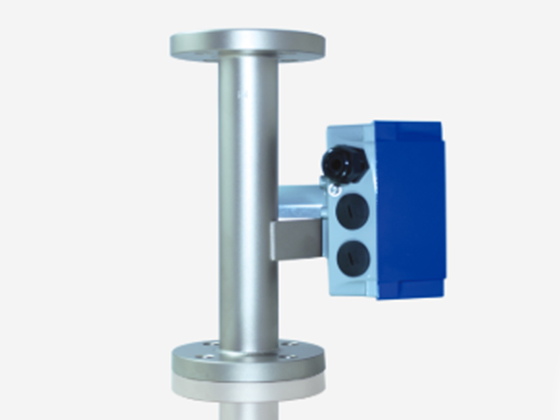

CP50-M20 Remote transmission type
CP50-M20 intelligent metal tube rotameter is a variable area flow meter commonly used in industrial automation process control. It has the characteristics of small volume, large detection range and convenient use. It is especially suitable for flow measurement of low flow rate, small flow, high temperature, high pressure, strong corrosion, conductive or non-conductive media. It is widely used in petroleum, chemical industry, metallurgy, electric power, pharmacy, coal chemical industry, water treatment, food, papermaking, new energy and other industries.
◆ Advanced self-damping indicator, effective chatter reduction
◆ Patented design without screw on the dial makes the
panel more beautiful
◆ Modular and intelligent indicator design
◆ Graphic dot matrix LCD display, Chinese and
English menu selection
◆ Float stuck alarm, pulse overrun alarm,
flow upper and lower limit alarm
◆ Multi-screen switching can realize multi-parameter combined
display of working condition/standard condition flow, flow rate,
cumulative flow, current, percentage, etc
◆ Uniform magnetic field float design makes the rotating
float more stable
◆ Near-linear calibration design of multi-section taper pipe
◆ One-click reset function design
◆ Superior EMC design
M20 indicator:
① Measuring tube: CP50/CP51/CP52/CP53/CP54/CP55
② Indicator: M20 indicator, cast aluminum square shell
③ Circuit board: two-wire system/multi-wire system/
ModBus/Hart/FF/battery
④ Disc: remote/local/alarm
