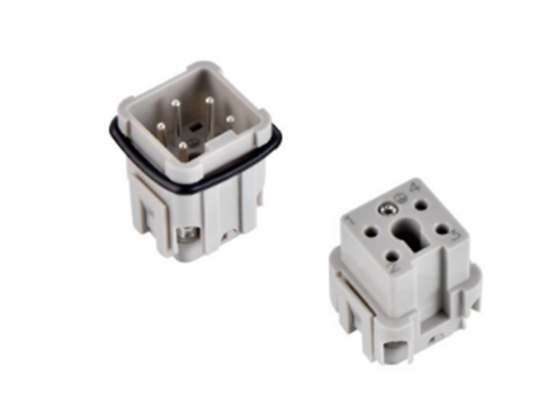

Home/Accessories/Consumables/Miniature core --HA-004/
Taizhou lYMD ElectronicCo., Ltd
, ChinaStandards
DIN EN 60 664 / DIN EN 61 984
Plug Core
:
Number of pins:
3, 4, 10, 16, 32 (2x16) + PE
Rated current:
10A
Relative ground voltage:
230V
Phase-to-phase voltage:
400V
Rated impulse voltage:
4kV
Pollution degree:
3
Or
10A 250V 4kV 3
According to UL/CSA rated voltage:
600V
Insulation resistance:
≥10¹¹ Ω
Material:
Polycarbonate
Operating temperature range:
-40°C to +125°C
Flame retardancy:
V0
Number of insertions:
≥500
Plug Pin
:
Material:
Copper alloy
Surface treatment:
Gold plating, Silver plating
Contact resistance:
≤1mΩ
Wire gauge:
1.0-2.5mm²
AWG:
18-14
Tightening/Testing Torque
0.25Nm
Wire gauge:
0.14-4.0mm²
AWG:
26-12
Wire gauge:
0.14-2.5mm²
AWG:
26-14
Product Description
Technical Parameter
Related Pictures
