Condition Monitoring sensors for vibration, shock, and temperature monitoring

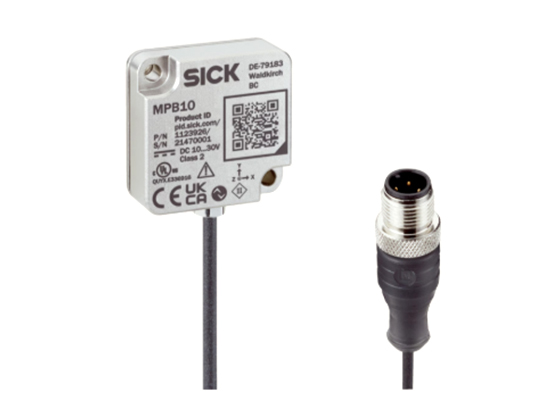

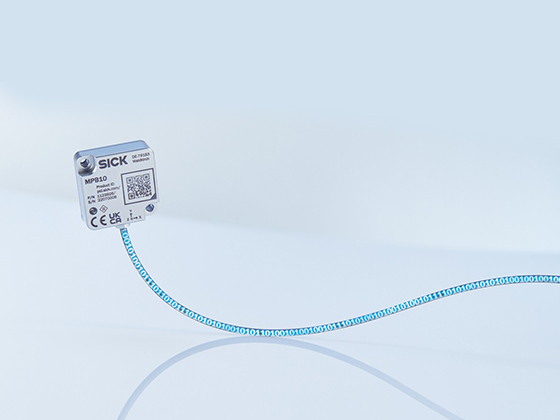

Name: Multi Physics Box
Brand: SICK China Co., Ltd.
SKU: 953e98200c49c1d200e323f34b0ebf4f
Price: 9999 USD
Availability: InStock
Rating: 4.8 (20 reviews)

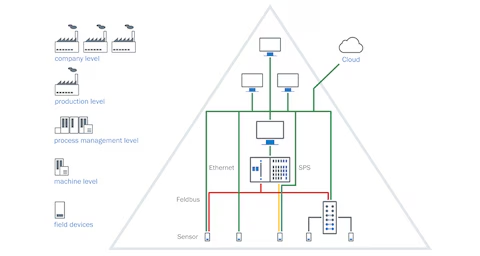

The Multi Physics Box Condition Monitoring sensor allows for continuous condition-based monitoring of, for example, motors, pumps, conveyor systems or fans. It measures vibrations, shocks, and temperature, thereby providing indications of potential faults and machine failures. If the measured values exceed the individually configurable thresholds, an alert is output. For vibration values, the vibration monitoring thresholds for machines according to ISO 10816-3 can be implemented via a multi-stage alert. The sensor can be integrated into the machine or system via IO-Link or a simple alarm-based switching signal. Whether on-site or in conjunction with a Cloud Service: The Multi Physics Box creates a data foundation that can be used to avoid unplanned downtime and effectively lower costs

Benefits

Reduce failures and operating costs using precise condition data

Intuitive data interpretation thanks to pre-processed values even in the frequency domain

Can be adapted by means of configurable threshold values for vibration, shock and temperature values

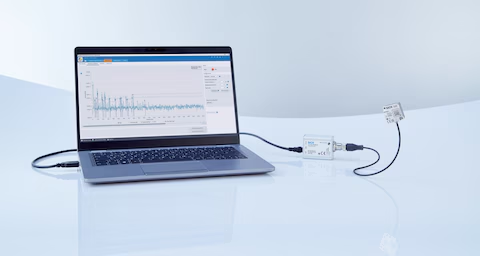

Simple parameterization and visualization via SOPAS Engineering Tool

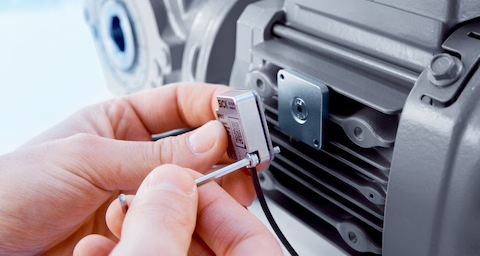

Uncomplicated installation via magnetic plate or screw connection

High operational safety due to rugged stainless-steel housing

Features

3-axis vibration (± 8 g) and shock detection (up to 200 g) via MEMS elements

Contact temperature measurement −40 ... +80 °C

Configurable thresholds

Vibration monitoring in time and frequency domain

Vibration limit values according to ISO 10816-3

Compact stainless-steel housing up to IP68

LED status display

Switching output as alarm and IO-Link

Greater transparency, less machine downtimes

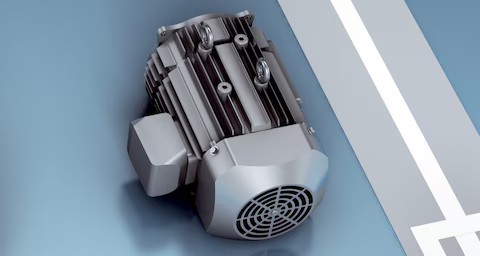

Multi Physics Box allows Condition Monitoring Whether motor, pump, conveyor belt or fan – measured values for temperature, vibration behavior, and shock provide indications of defective processes that can lead to machine or system failures. Based on the sensor data, faults can be detected early and maintenance work planned independent of status. The result: Cost savings due to fewer unplanned downtimes.

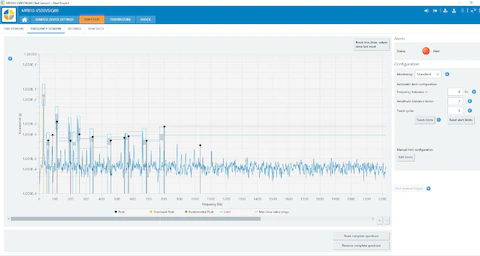

Easy parameter evaluation with a high data quality

Multi Physics Box makes data interpretation easy. The sensor detects, for example, vibrations via a MEMS element and further processes them directly according to the configuration. The final data output delivers indicative values in the time and frequency domain that are significantly easier to interpret than the actual raw data. A multi-stage alert according to ISO 10816-3 can be implemented when monitoring vibration thresholds. An optional trigger ensures precisely reproducible measurements.

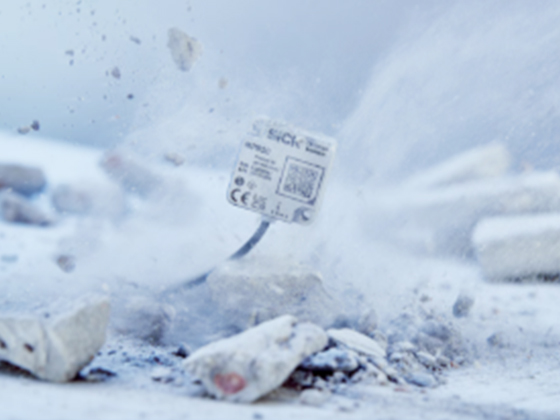

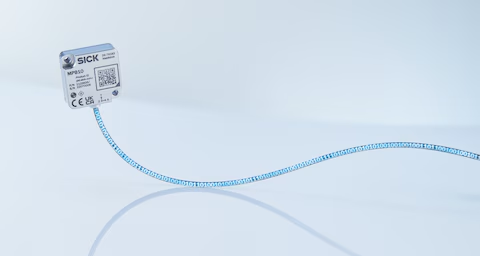

Versatile thanks to rugged design and high level of flexibility

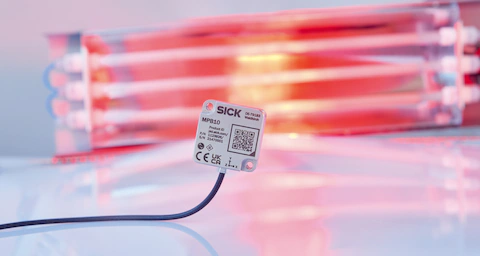

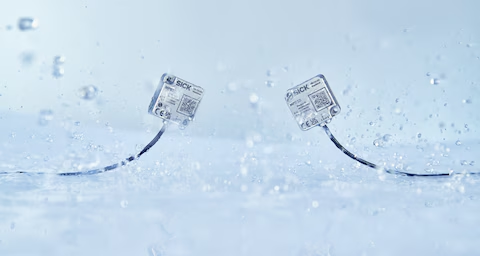

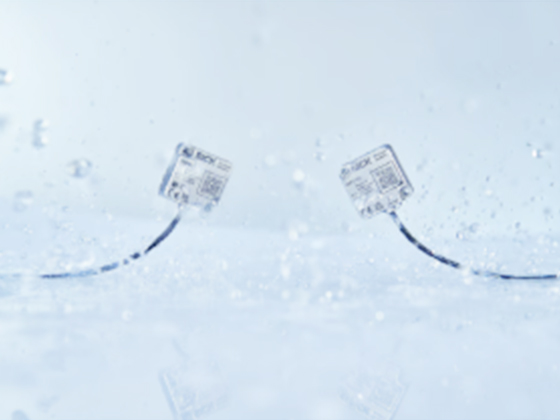

The range of applications for the Multi Physics Box is virtually unlimited. The sensor is well protected by a rugged stainless-steel housing. Even fine dust or water cannot harm the sensor thanks to the enclosure rating of up to IP68. The sensor delivers consistently reliable data at ambient temperatures between −40 °C and +80 °C. Thanks to the flexible parameterization options, the sensor can also be used in a wide variety of applications. In short: The Multi Physics Box is suitable for continuous condition-based monitoring in almost any industrial context and acts as a reliable supplier of data even under harsh ambient conditions.
