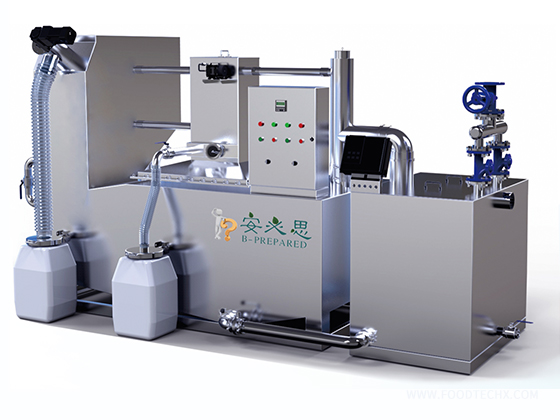

ShanDong-BinZhou, China1. ABS-GY-BT Multifunctional Grease Separation & Lifting Equipment
PRODUCT OVERVIEW
- Equipment Type: ABS-GY-BT Series
- Equipment Material: SUS304/SUS316
- Processing Capacity: 1-72m³/h
PRODUCT FEATURES
- Fully enclosed operation, no odor emission
- Modular structure for easy installation and transportation
- High-efficiency air flotation oil-water separation system with excellent treatment effect
- Dual-control constant temperature heating system, energy-saving and efficient
- Intelligent automatic slag removal system with stable operation
- Self-cleaning backwash system for easy maintenance
- Visible oil drainage system, safe and convenient
- Intelligent sewage lifting system, powerful and stable operation
3. CONFIGURATION DESCRIPTION
(●: Standard Configuration ○: Optional Configuration)
| Secondary Slag Collection | Automatic Slag Removal | Conical Oil Collection | Visible Oil Drainage | Constant Temperature Heating | Automatic Aeration | Mechanical Electrical Control | Touch Screen Intelligent Control | Remote Monitoring | Sludge Concentration | Self-Cleaning Backwash | Automatic Stirring |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ● | ● | ● | ● | ● | ● | ● | ○ | ○ | ○ | ● | ○ |
Model
ABS-GY-BT10
Design Flow (m³/h)
10
Dimensions (L×B×H, mm)
3160×1300×1700
Inlet Water Level H1
1600
Outlet Water Level H2
1660
Inlet Pipe Diameter DN
150
Outlet Pipe Diameter DN
100

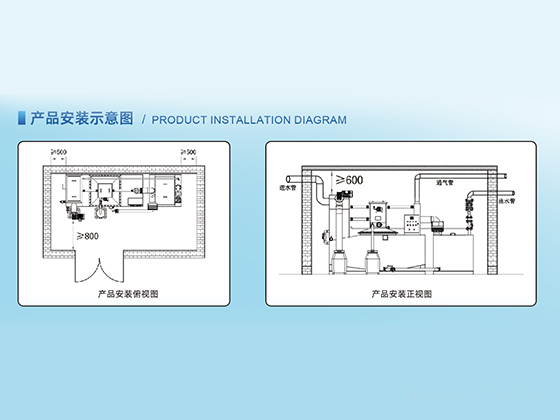

Equipment Installation Space (mm)
4160×2100×2300
Power (KW)
2.4+
Operating Weight (KG)
2350
