CDM/CDMF pumps are new generation, high efficiency, non-self-priming vertical multistage centrifugal pumps (Abbr. as pumps). It referred European standard, used entirely new industrial design.
It is energy saving, low noise, environment friendly, compact design, beautiful shape, light, easy for service, high reliability.
Home/Accessories/Consumables/Nanfan pump CDMF1-3/

NANFANG PUMP INDUSTRY CO.,LTD.
ZheJiang-HangZhou, ChinaModel:
CDMF1-2
Motor:
0.37KW(0.5Hp)
Q(m3)
1
H:
10.5m
Max.pressure(bar):
22,
Pipelines:
DIN flange(DN25)/Pipe thread(R1 1/4)
Dimension:
H187+220MM
Weight
19Kg
Pump head:
Castiron(ASTM25B)
Lining
Stainless steel(AISI304)
Mechanical seal:
Tungsten carbide/Carbon
Top diffuser:
Stainless steel(AISI304)
Diffuser:
Stainless steel(AISI304),Support
diffuser:
Stainless steel(AISI304),
Inducer:
Stainless steel(AISI304)
Inlet/outlet chamber:
Stainless steel(AISI304)
Base plate:
Cast aluminum
Bearing:
Tungsten carbide
Impeller
Stainless steel(AISI304)
Shaft:
tainless steel(AISI304)
Impeller sleeve
Stainless steel(AISI304)
Cylinder
Stainless steel(AISI304)
Coupling:
Carbon steel/Powder metallurgy,
new specification
Product Description
Technical Parameter
Configuration List

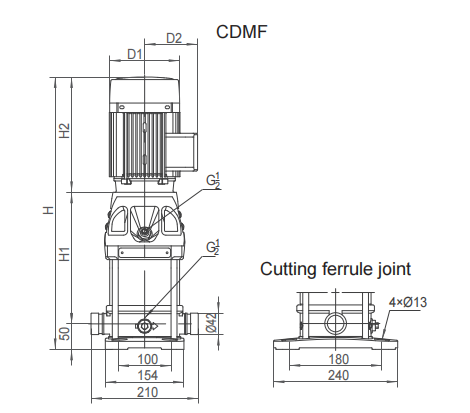

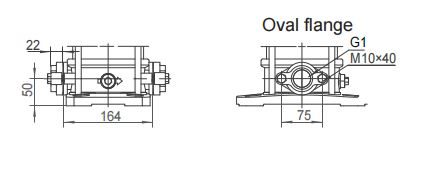

Technical Drawing
