- Using international advanced precision machining equipment
for processing
- Selected accessories from internationally renowned brands
- Adopting a straight in bottle method: accupying a small area, simplifying the conveying system in
front of the packing machine, and reducing the investment cost of the entire line equipment;
Adopting side feeding method: simple and reasonable structure with low failure rate;
- Adopting two-stage presure reduction: the product is depressurized, and the bottle falls smoothly
without getting stuck. After the product flls into the packaging process it is in a micro pressure
- stable conveying state, and there is an anti backflow bottle supporting structure design, with basically
no bottle overturming phenomenon;
Adopting a servo bottle dropping system: high positioning accuracy, accurate motion action,
- Reduce the impact and vibation during equipment operation, greatly increasing the stability of
equipment operation.

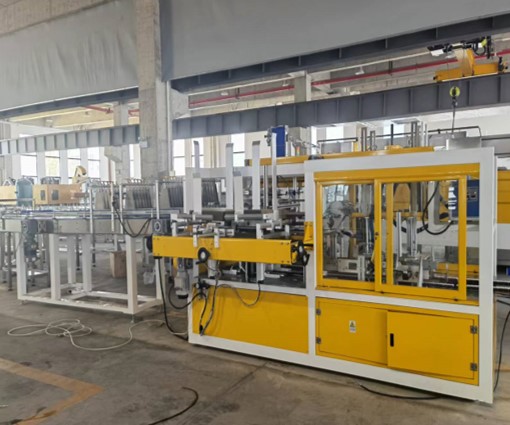

Home/Public Equipment/One Piece Falling Packing Machine/

Zhangjiagang Delilong Packaging Machinery Co., Ltd.
JiangSu-SuZhou, ChinaPackaging specifications:
2*3, 3*4, 3*5, 4*6
Packaging speed:
Pack 2 boxes at a time
Overall dimensionst of the machine:
L7740*W1500*H2170mm
Number of packing layers:
First floor
supply/power:
Workingpower 380V50Hz/5Kw
Weight:
1000KG
Working air pressure
0.7Mpa
