FuJian-XiaMen, ChinaPC Bubbler with Spike, Bule 35L/h, 20Cm Height
PCT0235H

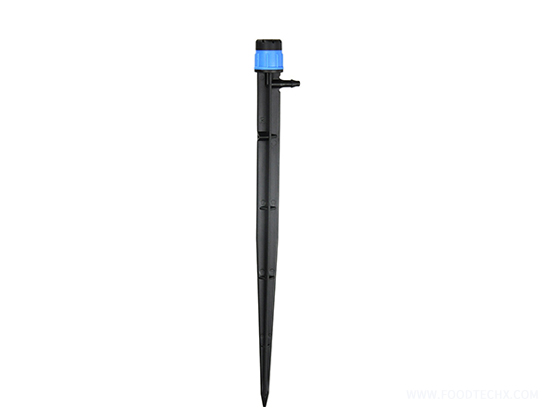

PC Bubbler with Spike, Bule 35L/h, 20Cm Height
Adjustable flow and range for different purpose:Sprinkling irrigation, drip irrigation or shut down. Different spray form for different plants: radial type and centrifugal type.
Advantage:

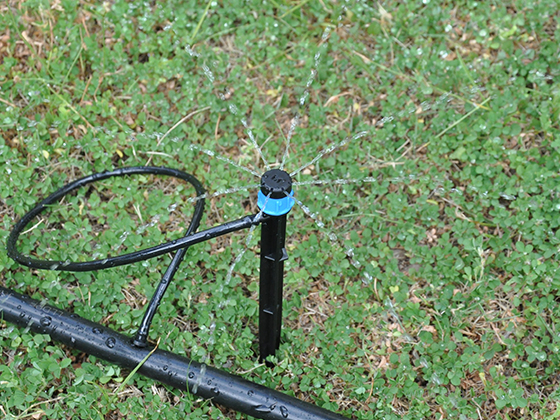

1.Full circle vortex sprayer with fine water droplets, also beauty landscape.
2.Flowing and Spraying Radius can be adjusted by turning the cover of sparyer.
3.Easy to remove the cover of dripper for inpection and cleaning.
4.Easy for installation, AS0180B can be inserted onto Dn12-32mm PE pipe directly with its Barb offtake
5.AS0180H can be connected with PV040453 Dn5/3mm pvc (or Dn6mm PE) tubing and easy to stick near the planing with its spike.
6.Produced by Good Quality of Raw plastic material with Anti-corrosion, Anti-UV and Anti-aging.
Application:
1.With large range of adjustment for flowing, good at irrigation of uneven terrain.
2.Suitable for shrubbery, Nursery garden, Fruit tree, Pottings and other planting.
Product Description
PC Bubber with Spiker
Item No.
PCTO235H
Size
35L/h, Blue
Qty/Bag (Pc)
100
Qty/Ctn (Pc)
1000
Ctn Size (Cm)
54*35*28
G.W/Carton (KG)
9
Working Pressure VS Flowing and Spraying Range:
PCT0235HBlue
Working Pressure :1.0Bar
Discharge (L/h)36
Spray Diameter (m)1.0
Working Pressure :2.0Bar
Discharge (L/h)38
Spray Diameter (m)1.5
Working Pressure :3.0Bar
Discharge (L/h)37
Spray Diameter (m)1.4
Working Pressure :4.0Bar
Discharge (L/h)35
Spray Diameter (m)13
- Pressure VS Flowing

- PC Dripper work with Dripper stake kits.
