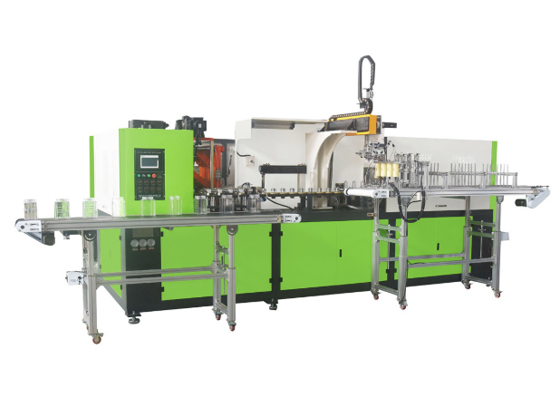

Home/Packaging Material Equipment/YM-B series PET Jar Fully Automatic Blow Molding Machine---YM-AB2000-2-115-G79-Z/

TAIZHOU YUMING MACHINERY CO.,LTD
ZheJiang-TaiZhou, ChinaThe Pet Jar Full Automatic Bottle Blowing Machine is a cutting-edge solution designed for the efficient and precise production of PET (Polyethylene Terephthalate) jars. This state-of-the-art machinery integrates advanced automation technology to streamline the entire bottle manufacturing process, from preform loading and heating to stretching, blowing, and forming jars. With its high-speed production capabilities and customizable features, this machine caters to a wide range of jar sizes, shapes, and designs, making it an ideal choice for industries such as food and beverage packaging, cosmetics, and household products.
Featuring precise temperature control systems and programmable settings, the Pet Jar Full Automatic Bottle Blowing Machine ensures uniform wall thickness, consistent quality, and minimal material wastage. Operators can easily adjust parameters and monitor production progress through an intuitive interface, optimizing operational efficiency and productivity. The machine's robust construction and reliable performance guarantee stable and high-quality jar production that meets industry standards and customer requirements.
Clamping
:
TYPE
YM-BL600-2
Clamping force
200 kn
Clamping stroke
140 mm
Stretching stroke
450 mm
Bottom stroke
30 mm
Cavity pitch
115 mm
Number of cavity
2 cavities
Container
:
Theoretical output
1500-2400 bph
Max container volume
2.0 L
Max.neck outer diameter
26-90 mm
Max. container diameter
105 mm
Max. container height
320 mm
Electrical system
:
Number of Lamp
32 pcs
Max. heating power
30 kw
Actual electricity consuming
32 kw
Air system
:
Operating pressure
7 kg/cm2
Low pressure air consumption
1200 Ltr/min
Blowing pressure
≤30 kg/cm2
High pressure air consumption
2000-2500 Ltr/min
Machine
:
Machine size
3.3x1.7x2.2 m
Machine weight
2.7 t
Product Description
Technical Parameter
