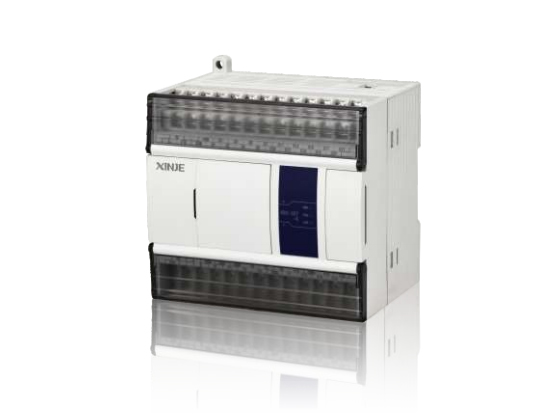

Name: PLC Sandard type XD3-60R/T/RT
Brand: WUXI XINJE ELECTRIC CO.,LTD
SKU: 1bd2897170ee4d799be36fd6c56eb7c1
Price: 260 USD
Availability: InStock
Rating: 4.8 (20 reviews)

WUXI XINJE ELECTRIC CO.,LTD

, China

XD3 series
The functions are complete.In addition to the basic data processingfunction, it also has special functions such as pulse output, high-speed counting, pulse width modulation, frequency measurementand so on.lt supports left expansion ED, expansion BD (16 points arenot supported) and right expansion module, which can meet thebasic use needs of users.
① Program capacity 256KB
2/0 sequential control
③ Maxl/0 380 points
4Basicinstruction 0.02~0.05us
⑤ RS232,RS485
6X-NET fieldbus
⑦ 2~4 channels 100KHz pulse output (Y2, Y3 max pulse output frequency of XD3-24T4/32T4 are 20KHz)8 3 channels high speed counting (single phase max 80KHz, AB phase max 50KHz)9 USB port high speed download (max 12Mbps)①

Product series XD3-

60R/T/RT

Total points:

60 Input points:

36 Output points:

24 Max l/0 points

380 General pulse output

2 axes

Single/AB phase mode

3channels

Input mode

0C

Right expansion module

10 Left expansion module

1 BD board

2 External interrupt:

10 Timing interrupt

20 Other interrupts

High speed counting interrupt, pulse interrupt

Communication port:

1 RS232 ports, 1 RS485 port, 1 USB port

Communication protocol

Standard Modbus ASCll/RTU communication, free format communication

Ambient humidity

10%RH-90%RH (no condensation)

Anti-interference

Voltage noise: 1500Vp-p, pulse width 1us, 1 minute

Bus function

X-NET fieldbus

Cooling method

Support

Frequency measurement

Support

Precise timing

26 points ET0~ET25 (only even numbers can be used)

Program execution mode

Cyclic scanning mode

Programming method

Instruction, ladder diagram, C language

Power off holding

Use FlashROM and lithium battery (3v button battery)

Basic instruction processing speed

0.02~0.05us

User program capacity (secret download mode)

256KB

Product series XD3-16R/T/RT

Security function6-bit ASCll password encryption, secret downloading

Self-diagnosis functionPower on self-test, monitoring timer, syntax check

Real-time clockBuilt-in clock, Lithium battery power supply, with power down memory

Bit softcomponent

Input relay (X)896 points: x0-X77,X10000-X11177,X20000-X20177.X30000-X30077

Output relay ((Y)896 points: y0~Y77,Y10000-Y11177,Y20000-Y20177,Y30000-Y30077

Auxiliary relay: General M8000 points M0-M7999

Auxiliary relay: Power off holding HM960 points HMO-HM959

Auxiliary relay: Special SM2048 points SM0-SM2047

Flow: General S1024 points s0-S1023

Flow: Power off holding HS128 points HS0-HS127

Timer： Specification100ms timer:0.1~3276.7s,10ms timer: 0.01~327.67s, lms timer:0.001~32.767s

Timer： General T576 points T0~T575

Timer：Power off holding HT96 points HTO-HT95

Counter： Specification16-bit counter:0~32767 32-bit counter:-2147483648-+2147483647
