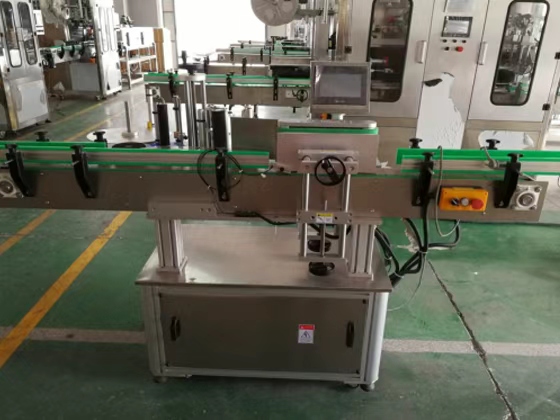

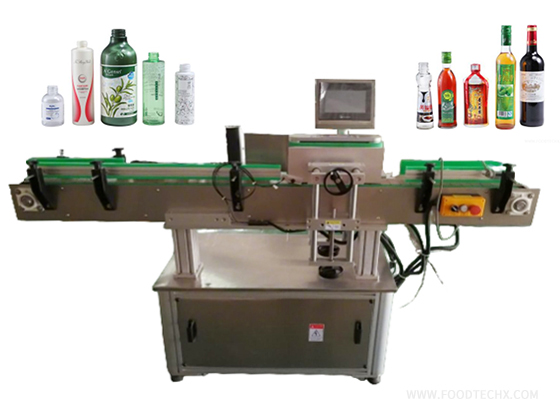

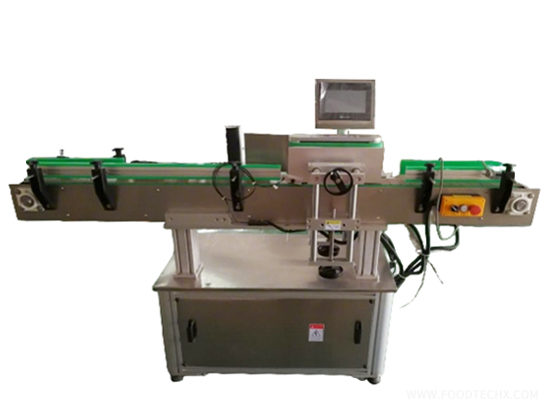

PM-630 Round Bottle Labeling Machine
Equipment Introduction
The machine body is mainly constructed with aluminum alloy (anodized) and 304 stainless steel, ensuring a robust and durable structure. Its modular and user-friendly design simplifies operation and format changeovers. The control system adopts a Human-Machine Interface (HMI) that is easy to learn and operate. The advanced circuit design delivers industry-leading labeling speed, reduces mechanical adjustments, and significantly improves labeling accuracy and production efficiency.
Main Applications
Suitable for circumferential labeling of round objects in food, pharmaceutical, daily chemical and other industries.
Key Features
- Advanced and intuitive HMI system with comprehensive functions
- Adopts Siemens control system for stable operation and long service life
- Specially designed for flat, square, irregular and curved bottles to ensure labeling accuracy and quality
Optional Configurations
- Transparent label sensor
- Synchronous thermal coding machine, thermal transfer printer, inkjet printer
Equipment Configuration
- Control System : Latest PLC controller, stable operation under 24-hour overload and unstable power supply
- Operation Panel : HMI with Chinese/English switch, electrostatic touch keyboard, large LCD display, adjustable backlight
- Photoelectric Sensor : 10-turn adjustment range, oil-proof and waterproof, CE certified, no blind spots for label detection
- Encoder: 1000 pulses per revolution, external design for easy maintenance
- Machine Base : AUTOCAD designed, stable center of gravity, equipped with fixed feet and casters
- Head Base : SUS#304 stainless steel, one-side ground, ensures verticality of idler wheels
- Adjustment Bracket Shaft : Φ30 chrome-plated shaft, high rigidity, maintains smooth adjustment under long-term operation
Machine Drawings & Layout Diagrams
