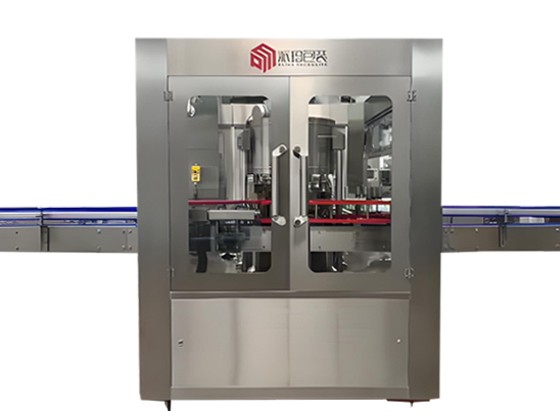

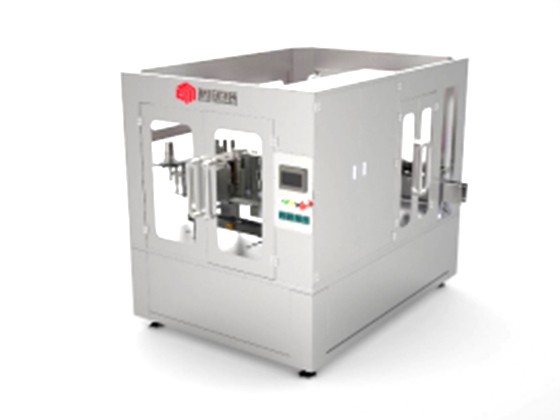

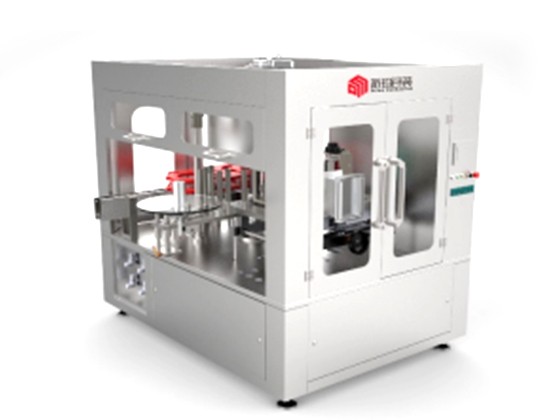

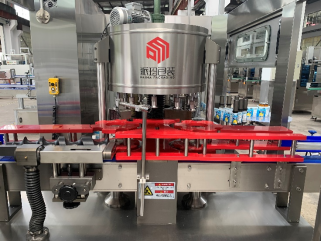

PM-RT12000 Automatic Rotary OPP Hot Glue Labeling Machine

1. Brief Introduction



1)The containers are picked up by the infeed star wheel and transferred to the container table. The container rotation begins when they are positioned between container plates and centering bells.



2)The speed of the feed roller is adjusted to the required label length for continuous web tension. A standard threading unit ensures optimal film feed. In the cutting unit, the labels are precisely cut while a PLC command and servo-motor provide an exact cut-off point.



3)Two narrow strips of hot melt glue the labels together, which are applied by a heated glue roller to the leading and trailing label edges. The label with the glue strip on its leading edge is transferred to the container. This glue strip ensures an exact label positioning and a positive bond. As the container is rotated during label transfer, labels are applied tightly.



2. Mechanical Parts

Item	Data
Transportation Structure	750W TRANSTECNO ac motor (with TRANSTECNO reducer), frequency converter speed regulation; Industrial nylon chain plate conveyor belt
Mainframe transportation structure	TRANSTECNO motor 2.2Kw (with deceleration by TRANSTECNO)
Bottle Separation structure	Feed screw
Bottle Feeding structure	With the feed screw and star wheel position feeding structure to ensure the accuracy and stability of loading
Position structure	Mechanical pre-location, using the cam wheel institution to planish the bottle for label positioning
Labeling structure	Rotary type bottle tray carries the bottles, label during rotation
Label feeding structure	high speed servo OPP label supply system (drive by servo-motor)
Label pressing structure	Arc shape brush unit
Bottle guiding structure	adjust by double coordinate section guide rail
Glue supply system	hot melt glue supply system (German SEIMEC control system) ensures the accuracy and uniformity of gluing



3. Safety part of the machinea

1)Safety protection: In order to keep the operator safety, when the machine is running please close the protective doors



2)Lack of label alarm: Set an alarm to remind the operator to change the label when the label will be use out



3)Lack of bottle alarm: When lack of the bottle the machine will stop and make an alarm. The machine will restart automatically as soon as the bottles have been put that will facilitate on-line production



4)Leak of labeling alarm: To control the quality of labeling



5)Pressure testing: When the pressure cannot meet the equipment requirement, the machine will stop to against bad products produce



6)Vacuum testing: When the vacuum cannot meet the equipment requirement, the machine will stop to against bad products produce



7)Temperature testing: When the temperature cannot meet the equipment requirement, the machine will stop to against bad products produce
