2026
- 1. Mold locking adopts hinge type lock, to ensure that blowing the bottle does not expand the mold
- 2.Heating preform is comtinous heating, which can effectively ensure the consistency of temperature of heated preform effectively save power.
- 3. Using quick change mold reduces the labor intensity of operators.

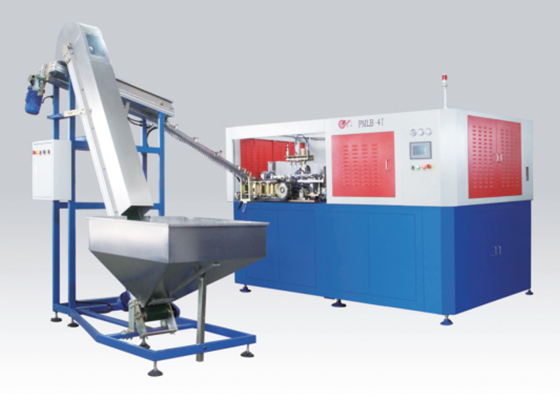

Home/Packaging Material Equipment/PMLB-02T114.3---Beverage bottle automatic linear bottle blowing machine series/
Guozhu Group Co.,Ltd
GuangDong-QingYuan, ChinaMold Cavity
4
Capacity
4500~6000
Max Diameter of Bottle
68
Max Height of Bottle
240
Diameter of Bottle Mouth
18~38
Mold Distance
72
Max Capacity of Bottle
0.6
Feeding Type
Artificial
Locking Type
Servo Hinge Locking
Clamping Mold Force
50000
Clamping Stroke
90
Bottom Mold Travel
Mechanical Synchronization
Rotor Distance
72
Heating Rotor Quantity
88
Machine Size m
5X2.9X2.8
Machine Weight
5500
Installed Power
80
Use Power
25~30
Power Supply
380/50
Action Pressure
0.8
Low Pressure Air Consumption
1.5
Blowing Pressure
2.6~4.0
High Pressure Air Consumption
4
Chiller Power
5
Product Description
Technical Parameter
