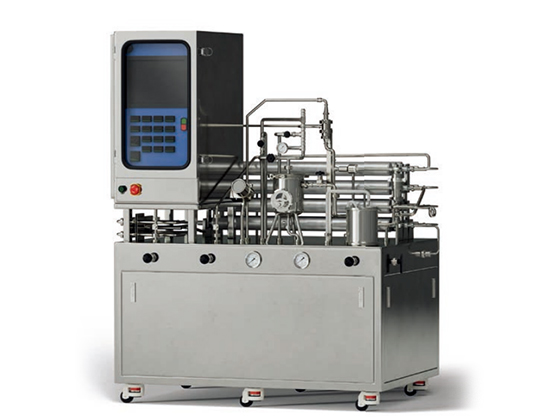

Direct stream injection machine is designed for comparisons of heat treatment with either direct heating or indirect heating at temperatures to 152℃. Just select which system is to be used from the touch panel menu and the machine is ready to use. The machine can be supplied with tubes, plates or both. Therefore, it is widely applicable for various fluids, materials with a certain viscosity and feed containing small particles.
Home/Food Processing Equipment/PT-30DT Direct steam injection machine/
Shanghai Triowin Intelligent Machinery Co., Ltd
ShangHai, ChinaStandard capacity
30L/H( variable from 5 to 40L), other requirement can be meet by customization
Max Temperature:
150℃, adjustable
Holding time:
to be determined by clients
Maximum pressurer
10.0 bar
Vacuum:
400mbar
SIP(steam in place):
Available
CIP(clean in place):
Available
Filling inline:
Optional
Hom. Inline:
Optional (up stream/downstream homogenization)
Outlet Temperature:
Adjustable
Holding Tube:
5S / 10S / 30S standard equipped
Material:
SUS316 stainless steel
Software:
Available
power
3 phases，Neutral & earth, 380V, 12 KW
Tap Water:
outlet Pressure≥2KG, Consumption≥500L/H
Cabinet Dimension
1750（H）×1000（W）×1200（L）mm
