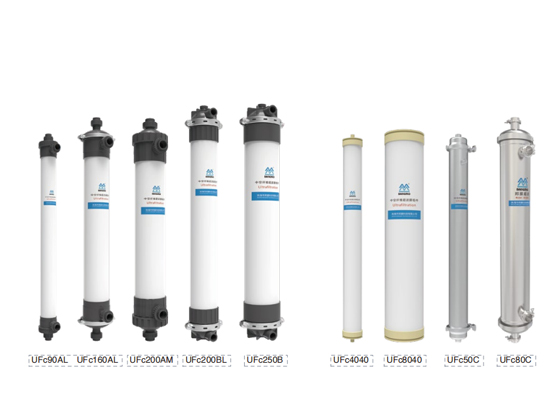

PVC series pressurized UF membrane modules use imported PVC raw material with long service life, filtering precision is 0.01 micron. Due to its high rigidity, PVC can be made to thicker hollow fibers and bear high working pressure, which is applicable to inside-out working mode. Inside-out structure is applicable for raw water with low turbidity and SS. When inside-out membrane modules work, contaminants are rejected inside hollow fibers without dead angles, which are easy to be washed out.
Home/Water Treatment Equipment/PVC PRESSURIZED UF MEMBRANE MODULE/
Zhuhai Bangmo Technology Co., Ltd.
, ChinaItem NO.
UFc 90AL
Membrane Material & ID / OD
PVC（1.0/1.8mm）
Filter Type
Inside-out
Pore Size
0.01μm
Membrane Area,
4.8
Size, mm
ø90 x1190
Shell Material
UPVC
Sealing Material
Epoxy Resin+PU
Ultrafiltrate Turbidity
≤0.1NTU
Ultrafiltrate SDI15
≤3
Design Flux Operating Flux
35~100L/m .h
Design Flux Backwashing Flux
100~150L/m .h
Temperature
5~45℃
Turbidity
≤15NTU
TMP
≤0.2MPa
Backwashing Pressure
≤0.1MPa
Backwashing Frequency
30~60min
CEB
(Times/day)
CIP
When it comes to Maximum TMP
Connector Size, mm
Ø32
Operating Pressure
≤0.3MPa
