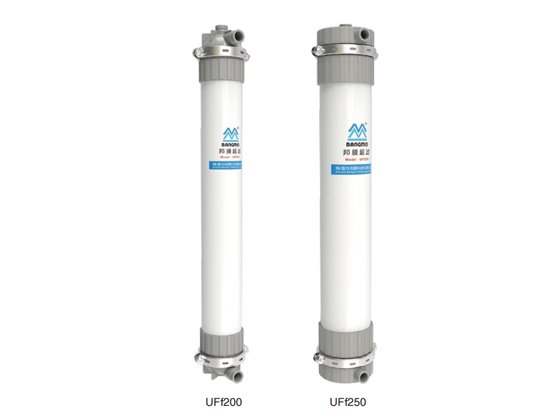

PVDF series pressurized UF membrane modules use imported Arkema PVDF raw material, filtering precision is 0.1 micron,ultrafiltrate turbidity ≤1NTU. Outside-in structure is applicable for raw water with high turbidity and SS. External surface area of outside-in membranes is large and feasible to air washing or air-water backwashing, which greatly increases the anti-fouling ability of membrane modules. TMP of PVDF outside-in membrane modules is low, which greatly reduces energy consumption.
Home/Water Treatment Equipment/PVDF PRESSURIZED UF MEMBRANE MODULE/
Zhuhai Bangmo Technology Co., Ltd.
, ChinaItem NO.
UFf160
Membrane Material & ID / OD
PVDF（0.8/1.3mm）
Filter Type
Outside-in
Pore Size
0.01μm
Membrane Area,
40
Size, mm
Ø160x1810
Shell Material
UPVC
Sealing Material
Epoxy Resin+PU
Ultrafiltrate Turbidity
≤0.1NTU
Ultrafiltrate SDI15
≤3
Design Flux Operating Flux
40~100L/m .h
Design Flux Backwashing Flux
100~150L/m .h
Temperature
5~45℃
Turbidity
≤25NTU
TMP
≤0.15MPa
Backwashing Pressure
≤0.15MPa
Backwashing Frequency
30~60min
CEB
(Times/day)
CIP
When it comes to Maximum TMP
Connector Size, mm
Ø40
