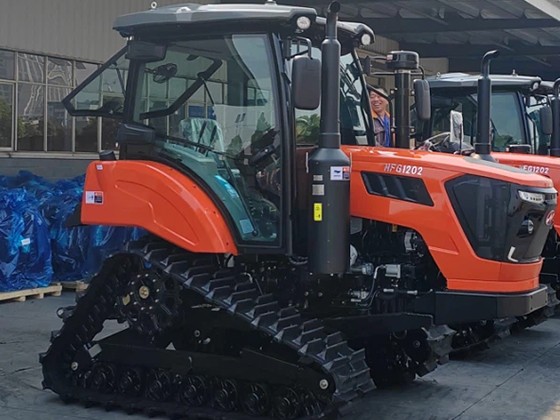

Home/Agricultural machinery/Aquacultural Machinery/Paddy Field Crawler Tractor ---NFG1202(120HP)/

Hunan Nongfu Machinery & Electronic Co.,Ltd.
, ChinaKey Features:
✅ Dual-Purpose Design
✅ Advanced Steering System
✅ Independent Hydraulic Systems
✅ Upgraded Clutch System
✅ Low Maintenance, High Efficiency
Model
NFG1202(120HP)
Size Length x width x height(mm)
4050x1840X2500
Minimum operation mass(kg)
3650
Minimum ground clearance(mm)
530
Engine
:
Model
YTO/YUCHAI
Form
Turbo;water-cooling
Rated power (kw)
95.6
Rated speed(r/min)
2300
Steering system
:
Steering system type
Planetary differenitial steering
Drive train
:
Clutch type
Single-plate single-acting
Transmission type
12th forward gear+12th reverse gear
Transmission shift mode
Mamual shift
Theoretical speed of each gear(km/h)
Forward:Low 1.41;2.07;3.37;4.62:Medium 3.74;5.49;8.93;11.72:High 5.25;7.71;12.54;16.47:Reverse:Low 1.12;1.65;2.68:3.67:Medium 2.97;4.36;7.1;9.32:High 4.17;6.13;9.97;13.09
Rumming system
:
Track-center distance(mm)
1300
Track
90x60x450(PitchXNumber of sections xwidth)
Working Device
:
Lifter type
Partial separated/Separated(compressive)
Tillage depth control mode
Force/Location Regulation
Power output shaft speed
720/1000(r/min)
PTO shaft(mm)
8x38(Spline X outer diameter)
Product Description
Technical Parameter
