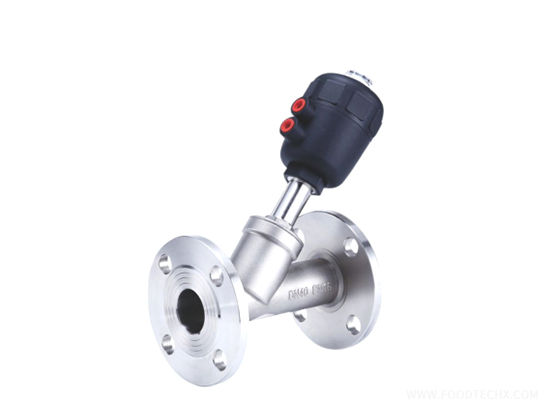

Pneumatic flange angle seat valve---DN15
/
Wenzhou Angle Seat Valve Co.,Ltd.
ZheJiang-WenZhou, China
Send inquiry
Contact supplier

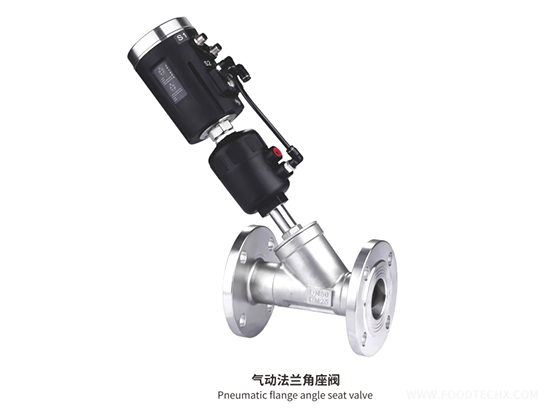

Pneumatic flange angle seat valve
Medium Temperature
-20 ~ +150°C
Ambient Temperature
-20 ~ +60°C
Nominal Pressure
1.6 MPa
Control Gas
Neutral gas, air
Air Supply Pressure
0.3 ~ 0.8 MPa
Nominal Diameter
DN10 ~ DN80
Body Material
304 / 316L Stainless Steel
Seat Material
PTFE
Stem Material
304 Stainless Steel
Sealing Ring Material
NBR
Applicable Media
Water, steam, oil, neutral gases

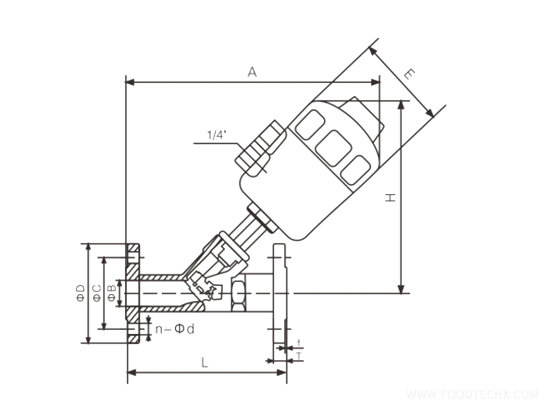

DIMENSIONS & ACTUATOR SPECIFICATIONS
：
Model
DN15
L
120
T
12
f
2
D
90
C
65
B
45
A
185
H
160
E
64
N-Φd
4-Φ14
Conventional Actuator
Φ50
Water-hammer Proof Actuator
Φ50
