Home
/
Accessories/Consumables
/
Mechanical
/
Valve
/
Pneumatic threaded angle seat valve ---DN15
/
Wenzhou Angle Seat Valve Co.,Ltd.
ZheJiang-WenZhou, China
Send inquiry
Contact supplier

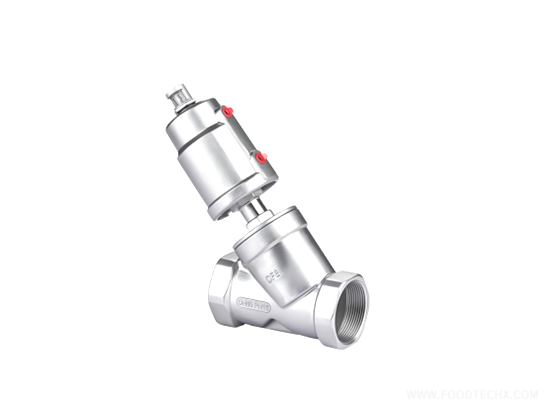

Pneumatic threaded angle seat valve with stainless steel actuator
Medium Temperature
-20 ~ +150°C
Ambient Temperature
-20 ~ +60°C
Nominal Pressure
1.6 MPa
Control Gas
Neutral gas, air
Air Supply Pressure
0.3 ~ 0.8 MPa
Nominal Diameter
DN15 ~ DN80
Body Material
CF8, CF8M
Seat Material
PTFE
Stem Material
304 Stainless Steel
Sealing Ring Material
NBR
Applicable Media
Water, steam, oil, neutral gases

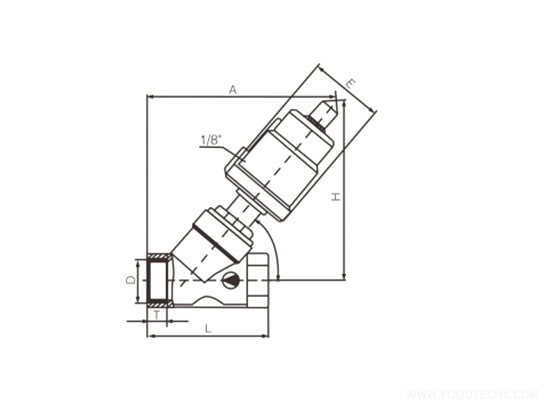

DIMENSIONS & ACTUATOR SPECIFICATIONS
：
Model
DN15
L
68
T
11
A
135
H
135
D
1/2"
E
62
Actuator
Φ50
Water-hammer Proof Actuator
Φ50
Product Description
Technical Parameter
Configuration List
Technical Drawing
