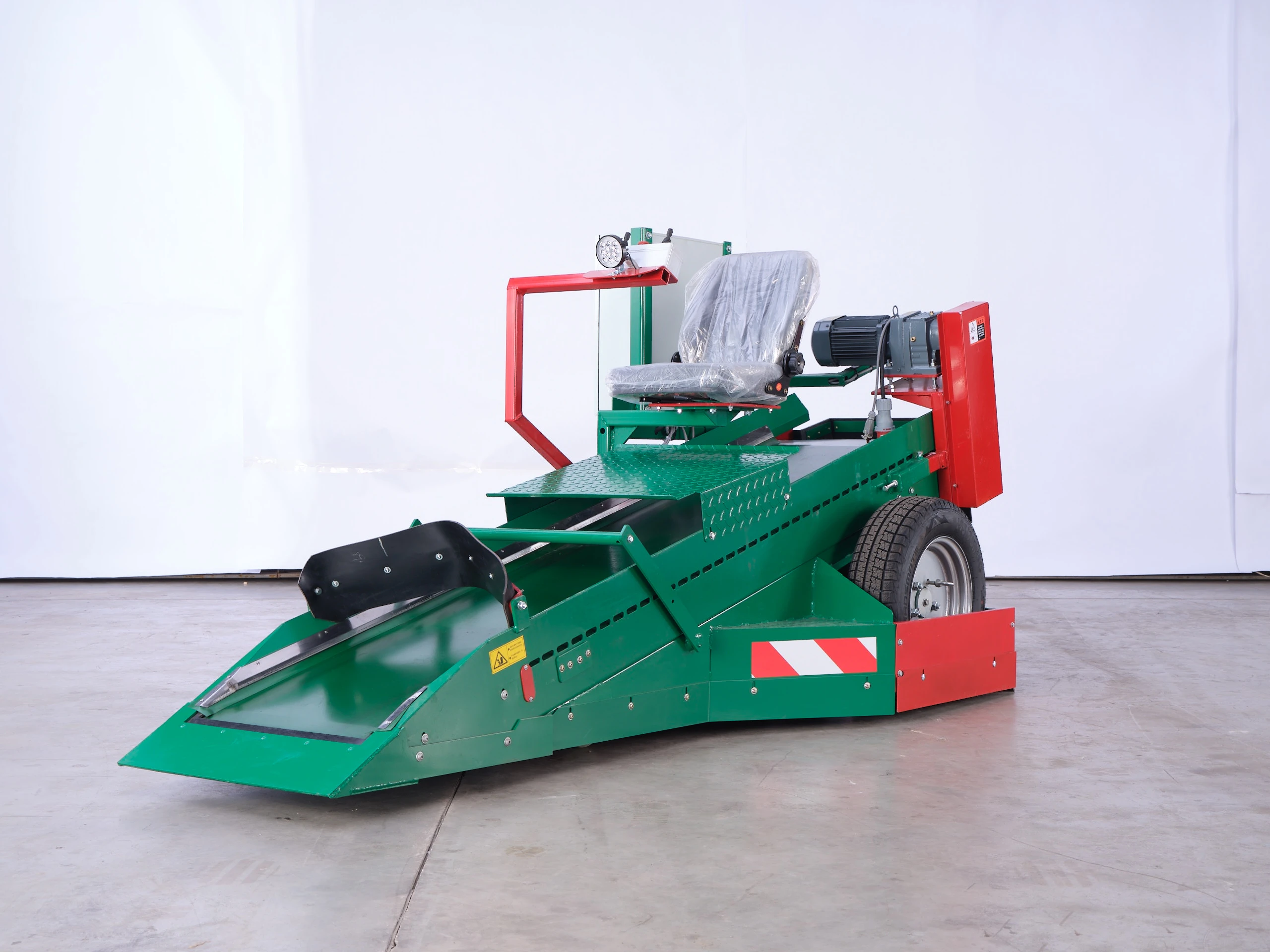

The 5SZ-40 Easy operation potato collecting and loading conveyoris a device suitable for transporting and unloading potatoes in fields and warehouses.

Potatoes in the warehouse or in the field can be transferred and transported through this machine. The tail can be connected to conveying equipment. The unique rotating chassis design, electrical design and telescopic structure make the equipment stable in action and comprehensive in function.

When this equipment is used in conjunction with other sorting equipment produced by our company, linkage control between the equipment can be achieved, which can not only improve work efficiency, but also effectively ensure human and machine safety.

The 5SZ-40 Easy operation potato collecting and loading conveyor is simple to operate, practical and efficient. It is suitable for large storage warehouses and can achieve optimal warehouse space utilization.

Machine structure:

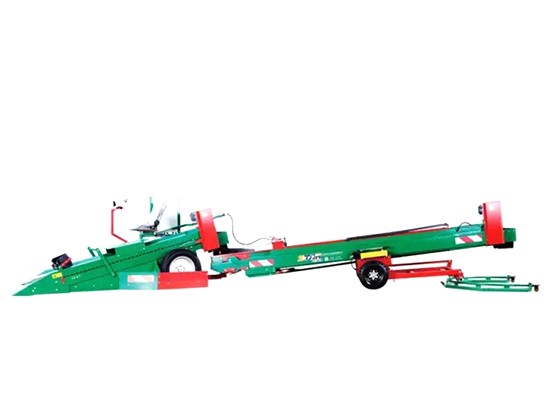

The 5SZ-40 Easy operation potato collecting and loading conveyor is mainly composed of a feeding device, a telescopic conveying device, a rotating chassis, and an electrical control system.

How it works:

Move the whole machine to the warehouse or field operation area (at this time, the equipment is not powered on, the front universal wheel is raised, and the rotating chassis is not connected). Place the rotating chassis in the working position, and operate the jack of the shrinking conveyor device to clamp the groove of the metal wheel on the chassis.

Select the power port at the working position and connect it, overlap the conveyor belt equipment at the end, and adjust the orientation;

Before starting work, make sure that all equipment in the entire conveyor line is in a ready-to-work state, with this machine at the front end. Start all equipment in sequence from back to front, start the conveyor motor of this machine, and the whole machine is in working state.

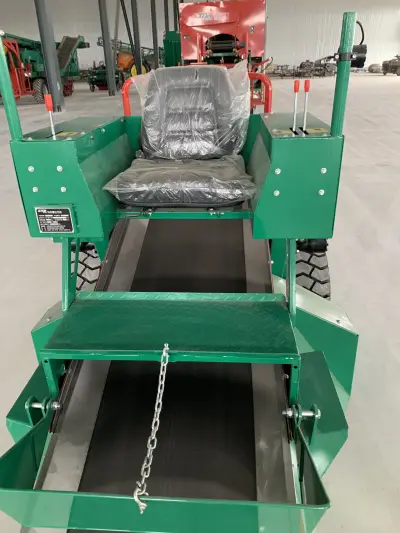

The operator sits on the seat of the machine and operates the control handle to realize the extension, rotation and feeding actions of the equipment, and transports the potatoes to the target location through the conveyor belt equipment.

The operator can move the machine within a short distance according to the potato material stacking situation until the loading is completed.

Product advantages:

1. The walking wheels on both sides can be controlled independently, making steering easy. The control handle is a cross switch with an automatic reset function. It is easy to operate and easy to use.

2. The angle and ground clearance of the collection shovel can be adjusted at any time during operation according to actual needs to avoid damaging or leaking potatoes during the feeding process.

3. The operating radius of the equipment is 6-10 meters, the operating adjustable range is large, and the operating adaptability is stronger.

4. This 5SZ-40 Easy operation potato collecting and loading conveyor can be used in combination with single-layer, double-layer conveyors and other equipment. It has strong random combination, which greatly saves the cost of purchasing equipment and saves expenses.

5. The key electrical components and important parts of the out-of-warehouse machine are all imported brands, ensuring the durability and reliability of the equipment.
