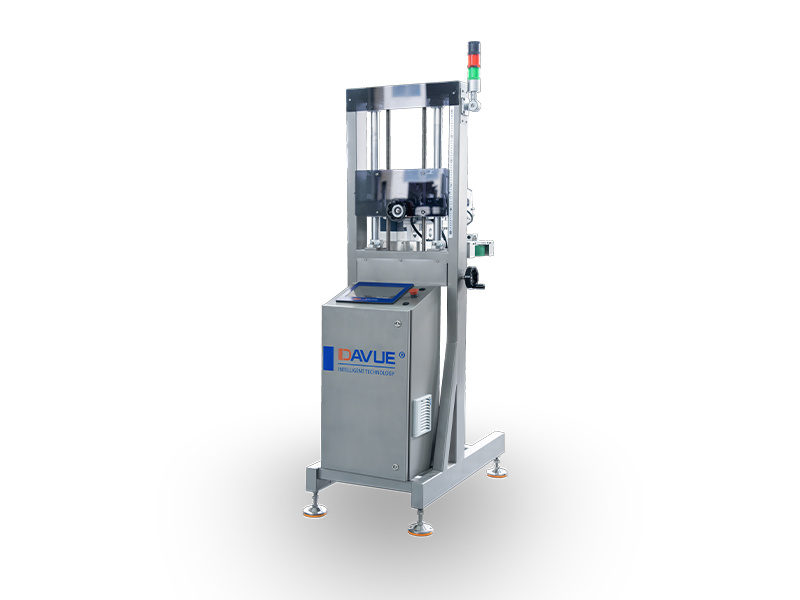

Based on the reaction force principle of squeezed products, the pressure sensor automatically inspects whether the product is qualified. Perform pressure, leakage and cap presence inspection according to the rejection criteria set by the user, and reject defective products in real time.Can reduces waste，avoids product spoilage or contamination.

■ Products parameter can be quickly converted, applicable to all types of bottle inspection.

■ Probe high precision, up to ± 0.01Mpa

■ Portable structure with small footprint, easy to install and operate

■ SUS304 electric cabinet is washable (IP55 protection design)

■ Non-destructive inspection, can inspect the positive or negative pressure of the product

■ With light alarm and real-time dynamic display of rejection data, high-speed rejection is achieved

Pneumatic rejection device

Reject the defective products based on signals from the inspection system

Maximum speed: 120,000 pcs/h

Using high-speed cylinder/servo electric rejecter

Internal Pressure Inspection Module

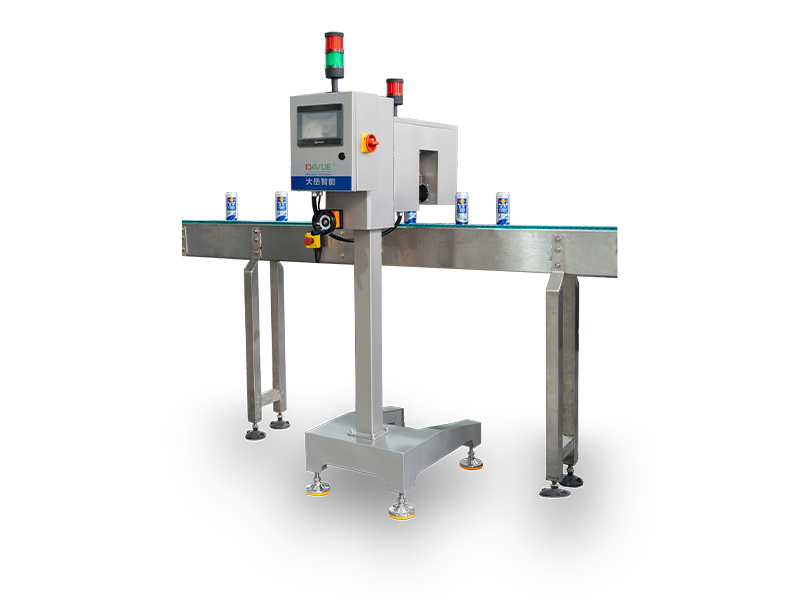

The inspection system mainly consists of an operator interface, a pressure inspection unit and a rejector, of which the pressure inspection unit is the core component; the human-machine interface includes a monitor, a tower light and an operator console; the rejector is used for diverting or rejecting unqualified cans.

Installation position

Installed behind the filler or the fill level inspector, or behind the sterilizer according to requirements. The minimum installation length needs to be greater than 800mm.
