High flatness and corrosion-resistant end surface sealing.
-
Keyboard lock function, stop (cut off) electrical parameter protection and indication.
-
No raw water bypass during regeneration, adjustable maximum interval regeneration days.
-
Equipped with signal output port, remote control port, capable of receiving wireless signals.
-
With interlock function, can be used for simultaneous water supply and regeneration systems.
-
Optional operation according to time type and flow type.
Home/Water Treatment Equipment/Q Series Softening Valve 65503 (F117Q1) /65603 (F117Q3)/

Wenzhou Runxin Manufacturing Machine Co. Ltd
ZheJiang-WenZhou, ChinaModel

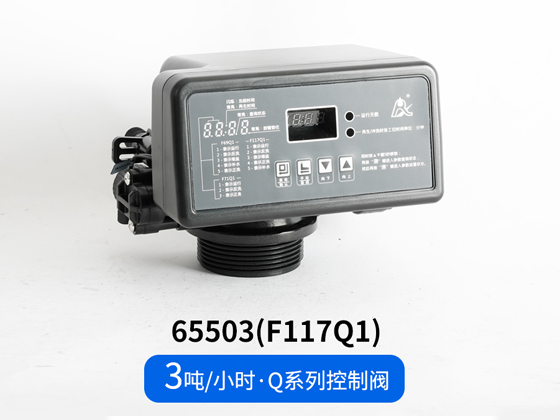

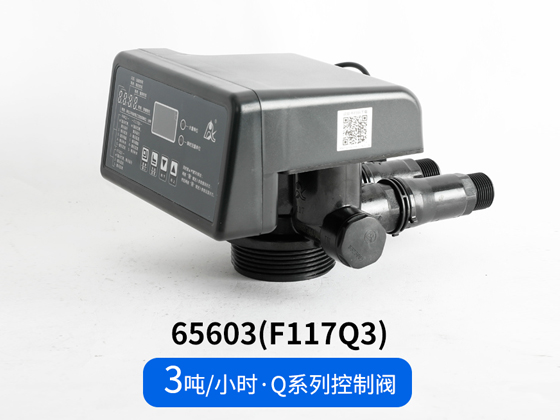

65503 (F117Q1) /65603 (F117Q3)
Regeneration Method:
Softening/Time-based
Installation Method:
Top-mounted
Inlet/Outlet:
3/4" F (6 inch Female Thread)
Drain Port:
3/4NPT (6 inch Female Thread)
Salt Suction Port:
3/8" M (3 inch Male Thread)
Base:
2.5"-8NPSM (Approximately 72mm)
Center Tube:
1.05" OD (Approximately 26.7mm)
Suitable Tank Size:
6" to 18"
Water Output:
3 tons/hour
Product Description
Technical Parameter
