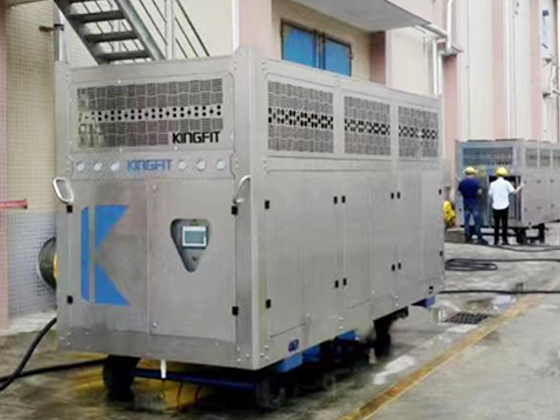

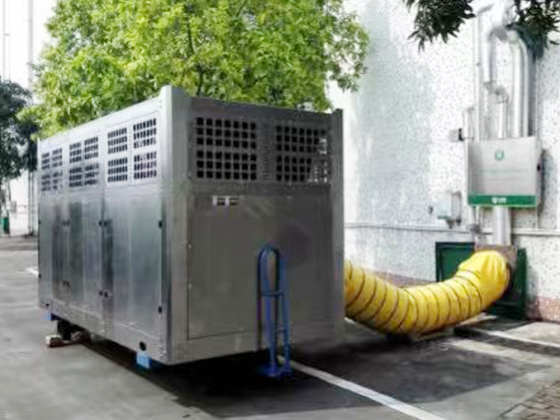

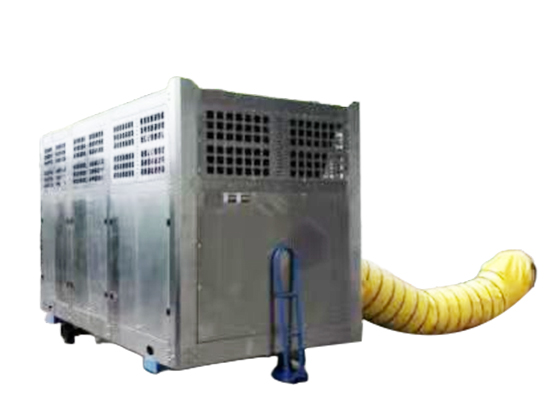

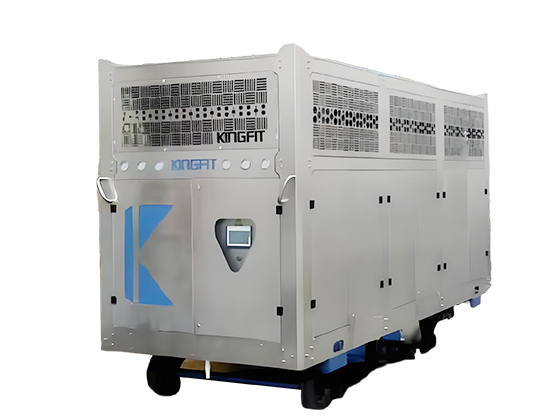

Home/Public Equipment/Refrigeration Equipment/QGL Series Grain Cooler --- QGL-150FPC-Z-N1/

Zhejiang Qingfeng Huanjing Gufen Youxian Gongsi
ZheJiang-LiShui, China1.Frequency conversion air supply, high efficiency & energy savingmulti-level cooling, automatic temperature and humidity control
Low-temperature grain storage function:
Model
QGL-150FPC-Z-N1
Nominal Cooling Capacity (KW)
138
Nominal Air Supply Volume (m³/h)
9100
Maximum Air Volume of Unit (m³/h)
20000 (Inverter)
Refrigerant
-
Type
R410A
Charging Amount
8Kg + 12Kg
Unit Power Supply
3N~380V/50HZ
Compressor
37.70
Supply Fan
18.5
Condenser Fan Model
630*6
Condenser Fan
5.62
Total Power
61.82
Air Outlet Temperature (℃)
12-25
Air Outlet Relative Humidity (%)
65-90%
Supply Fan Air Pressure (Pa)
2000
Operating Current (A)
161
Wire Configuration Specification (mm)
50
Insulated Air Duct Diameter
Ø600
Overall Dimensions
:
Length (mm)
4230
Width (mm)
1830
Height (mm)
2360
Unit Weight (kg)
1950
Electrical Control
Fully Automatic Control
Standard Pressure Gauge
Oil-Filled Gauge
Standard Control
Fan Inverter
Main Components of Standard Electrical Control
Schneider, Chint
Standard Rack
With Wheels/Handles
Compressor Danfoss---Denmark
ControllerSiemens---Germany
Touch Screen Siemens---Germany
Inverter Inovance ---Domestic
Contactor Schneider---France
Electronic Expansion Valve Dun'an---Zhejiang
Drying Filter Qingfeng---Zhejiang
Refrigerant---R410A Juhua---Zhejiang
Copper Pipe Hongtai---Qingdao
Electrical Appliances Schneider---France
ValveHengsen---Zhejiang
Centrifugal Fan Yilida / Langdi --- Zhejiang
Axial Fan Maer / Weiguang---Domestic
Gas-Liquid Separator Qingfeng---Zhejiang
Liquid Receiver Qingfeng---Zhejiang
Pressure Controller Qingfeng---Zhejiang
Pressure Gauge Qingfeng---Zhejiang
Condenser Qingfeng---Zhejiang
Evaporator Qingfeng---Zhejiang
Stainless Steel Rack Qingfeng---Zhejiang
Software Copyright Qingfeng Grain Cooler Unit Control Software---Sino-foreign Joint Venture
Product Description
Technical Parameter
Configuration List
