Zhejiang Qingfeng Huanjing Gufen Youxian Gongsi
ZheJiang-LiShui, China1.Frequency conversion air supply, high efficiency & energy savingmulti-level cooling, automatic temperature and humidity control

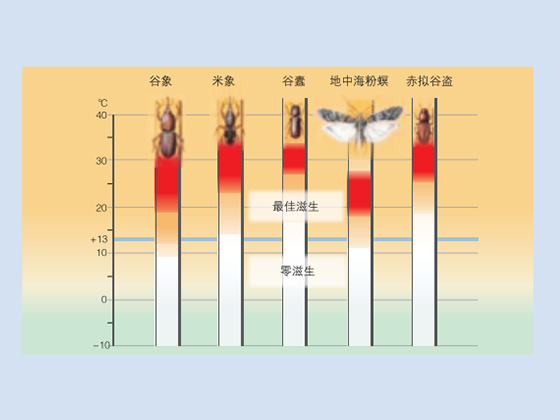

Low-temperature grain storage function:
Model
QGL-75MG-Z
Nominal Cooling Capacity (kW)
75
Nominal Air Flow Rate (m³/h)
4500
Maximum Air Volume of Unit (m³/h)
15000 (Variable Frequency)
Refrigerant
-
Charge Weight (kg)
20
Power Supply
-
Total Power (kW)
:
Compressor
18.29
Condenser Fan Motor
7.5
Evaporator Fan Motor
2.69
Total
35.98
Outlet Air Temperature (℃)
12–25
Outlet Air Relative Humidity Range (%)
65–90
Supply Air Static Pressure (Pa)
2000
Running Current (A)
95.00
Wiring Duct Specification (mm)
16
Insulated Flexible Duct Diameter
Φ600
Machine External Dimensions (L×W×H, mm)
3120×1420×1880
Machine Net Weight (kg)
1250
Electrical Control: PLC Intelligent Automatic Control
Standard Pressure Gauge: Oil-filled Gauge
Standard Control:Inverter Blower
Main Electrical Components: Schneider (Standard)
Main Frame: With wheels and a handle
Additional NotesNominal Operating Conditions: Inlet air at 37℃ (relative humidity 81%); Outlet air at 12℃ (relative humidity 75%); Static pressure 980Pa.
Additional NotesThe above parameters are subject to change without prior notice. Please refer to the actual selection scheme for accuracy.

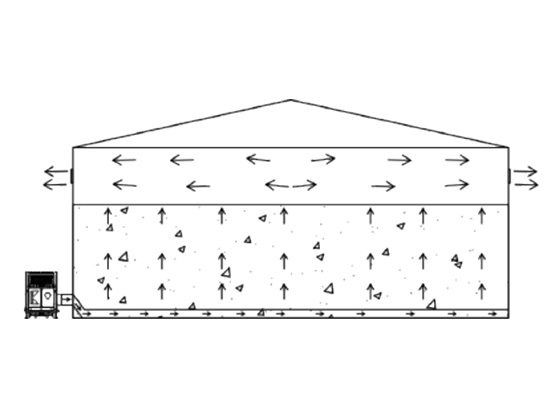

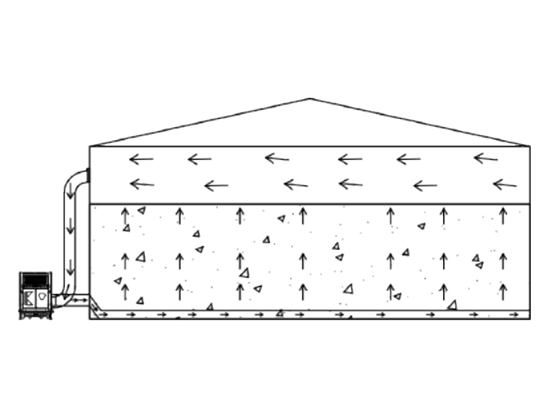

- PROCESS FLOW DIAGRAM

- PROCESS FLOW DIAGRAM
