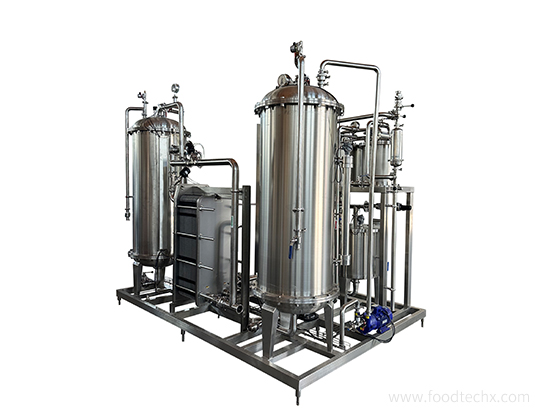

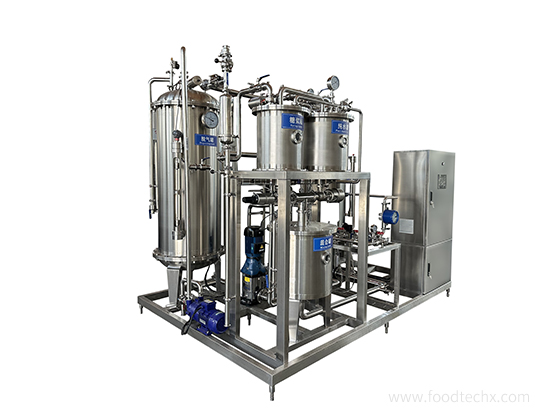

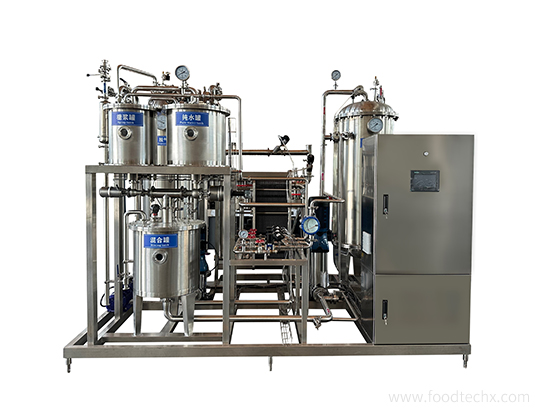

QHS(H) series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. lt adopts foreign advanced technology static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. lt adopt high quality pump and SIEMENS electrical equipment and other parts to form complete automatic control system. lt has coordinating action ,beautiful appearance, convenient washing, high automatic level and other advanteages. lt is suitable for mixing all kinds of drink, such as soda water, fruit juice, cola and hard drinks.

Key Features

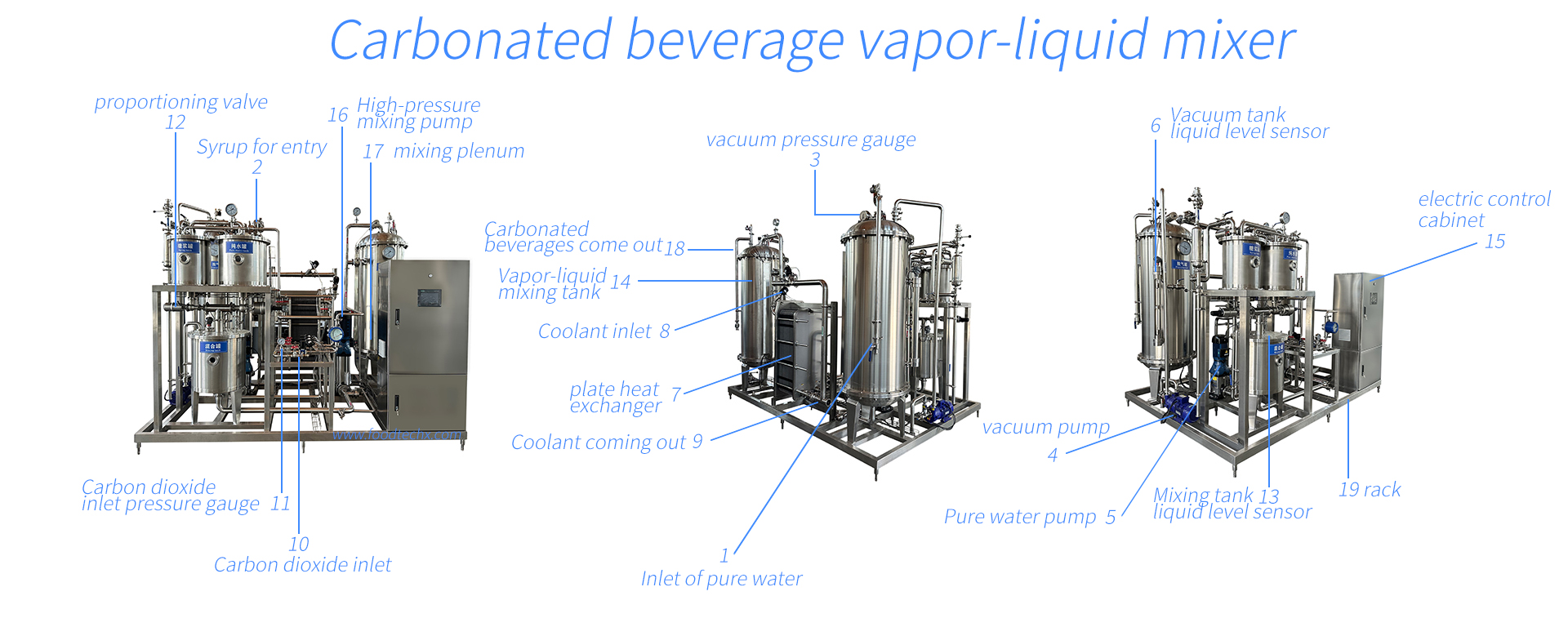

1. With degassing system, three-tank GOB sugar water mixing system, dynamic carbon dioxide addition system, storage tank (static carbon dioxide addition system), plate cooling system, CIP pump

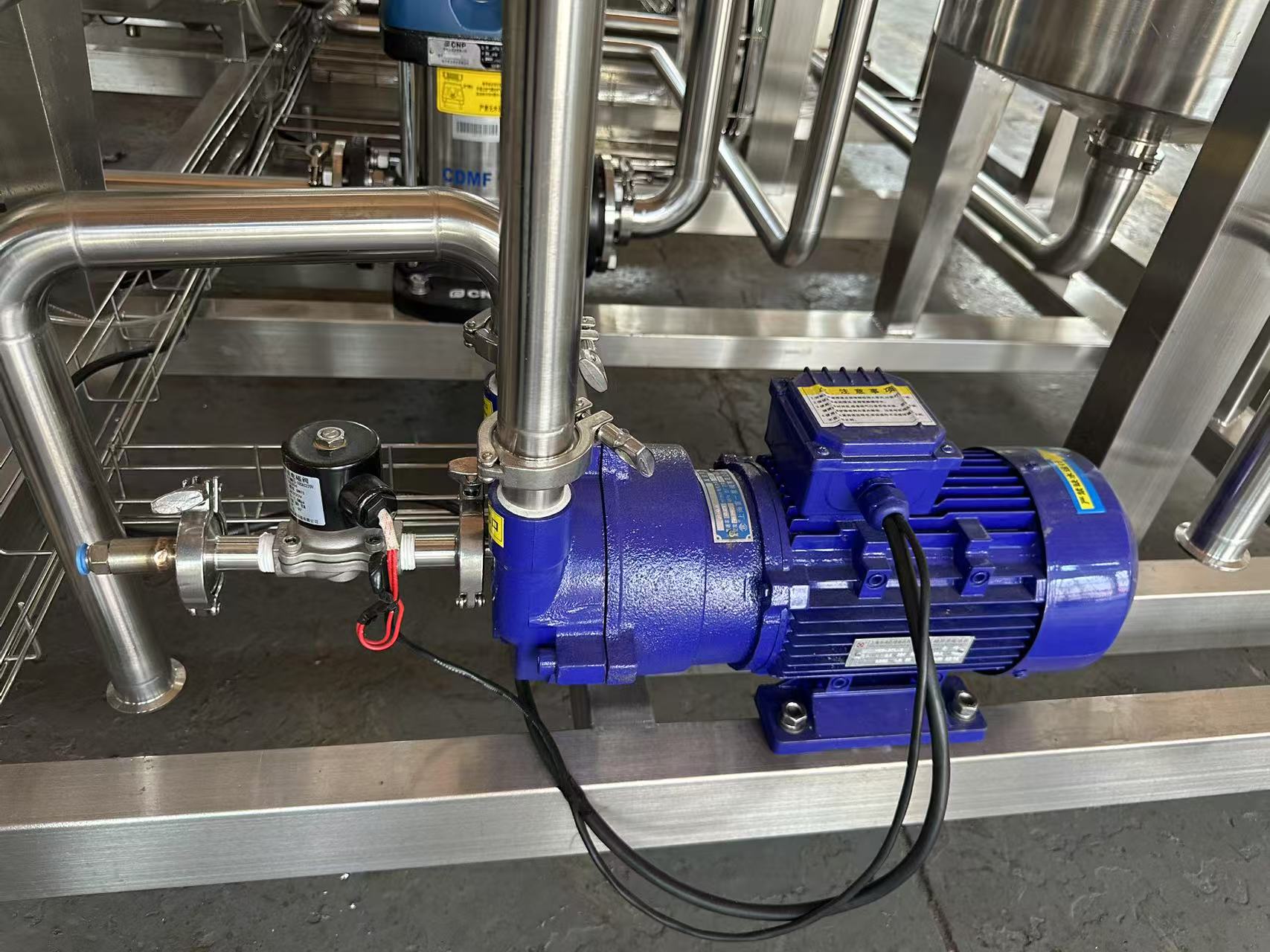

2. Degassing tank atomization degassing, Siemens vacuum pump, Shengbo double mechanical seal sanitary pump

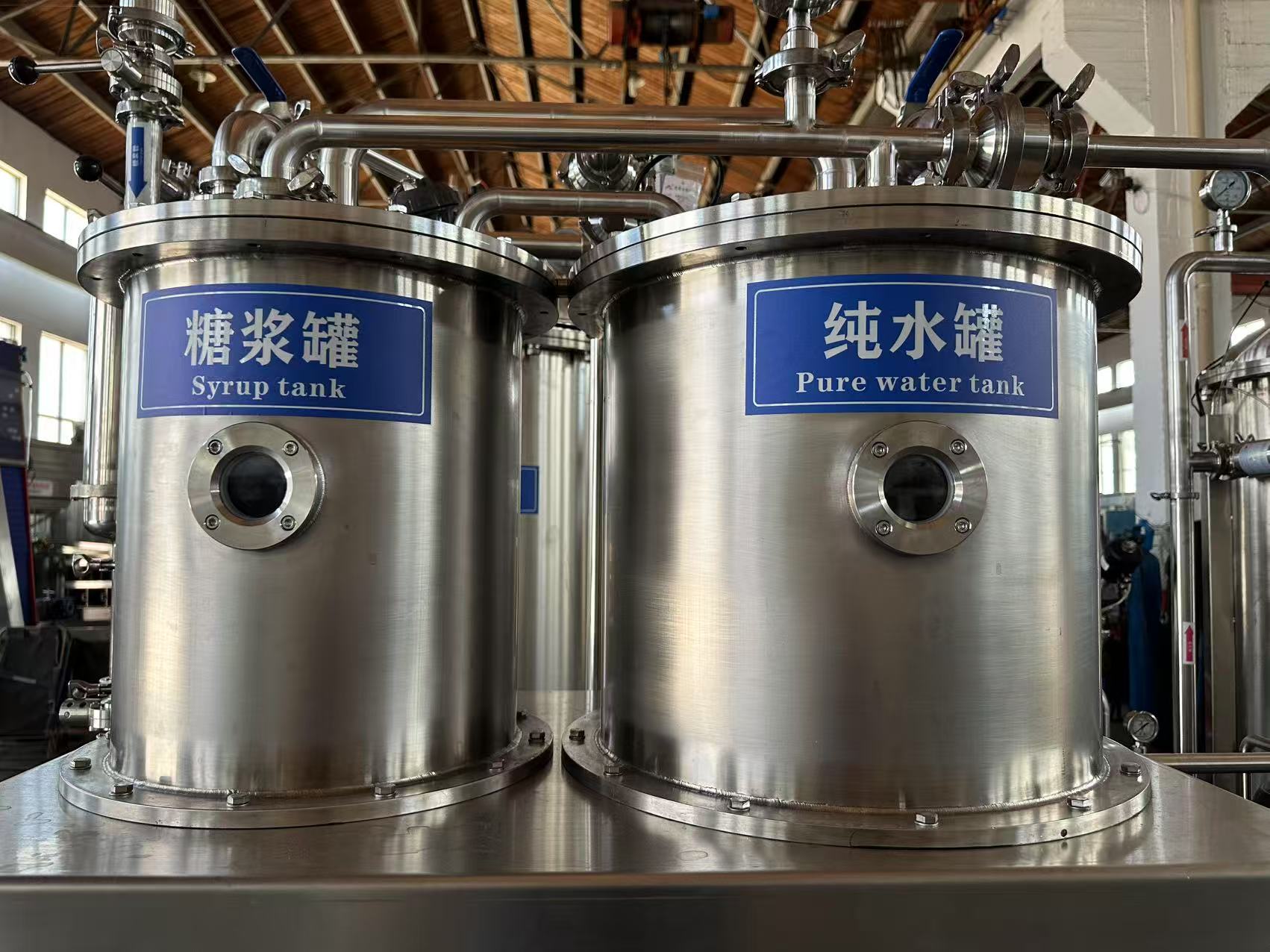

3. Sugar water mixing is three-tank type, with three-tank back pressure system, the three tanks have the same pressure, the mechanical proportional valve controls the sugar water mixing ratio, automatic liquid level control and control of SPX pneumatic sanitary T-type valve to control the start and stop of the mixing system
4. The Nanfang high-pressure pump feeds to the Venturi with a diffusion rate of less than 0.25 for dynamic mixing. The small diffusion rate Venturi generates a vacuum during the injection diffusion process to absorb the carbon dioxide , high gas content, stable carbon dioxide integration

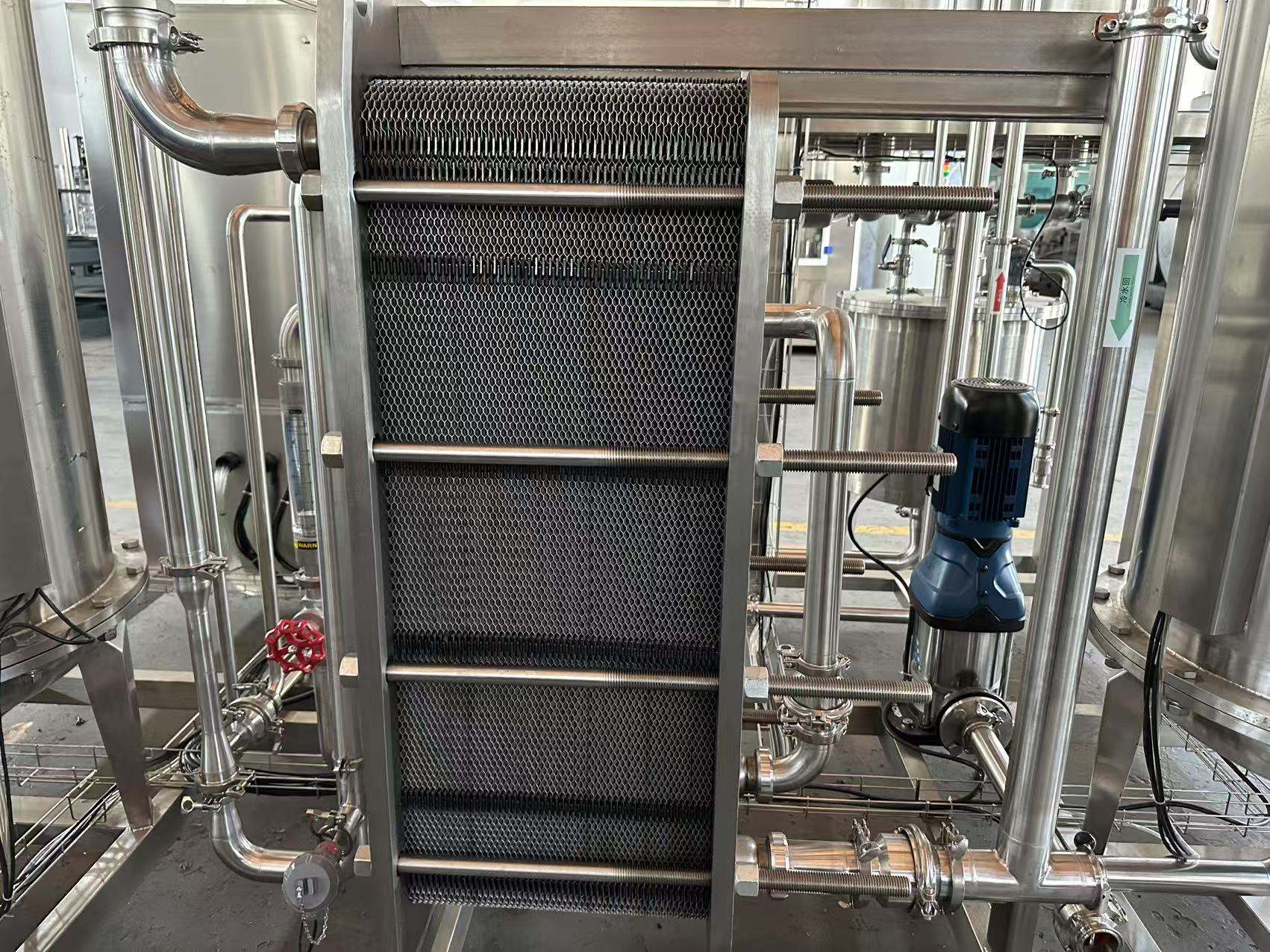

5. After dynamic mixing, the material enters the plate and is cooled to 0~2℃ to ensure the stability of the mixed carbon dioxide without precipitation
6. The cooled material enters the finished product tank, and the water film is generated by the guide plate for secondary carbonization. The double mixed gas content can reach 3.8 times the gas content

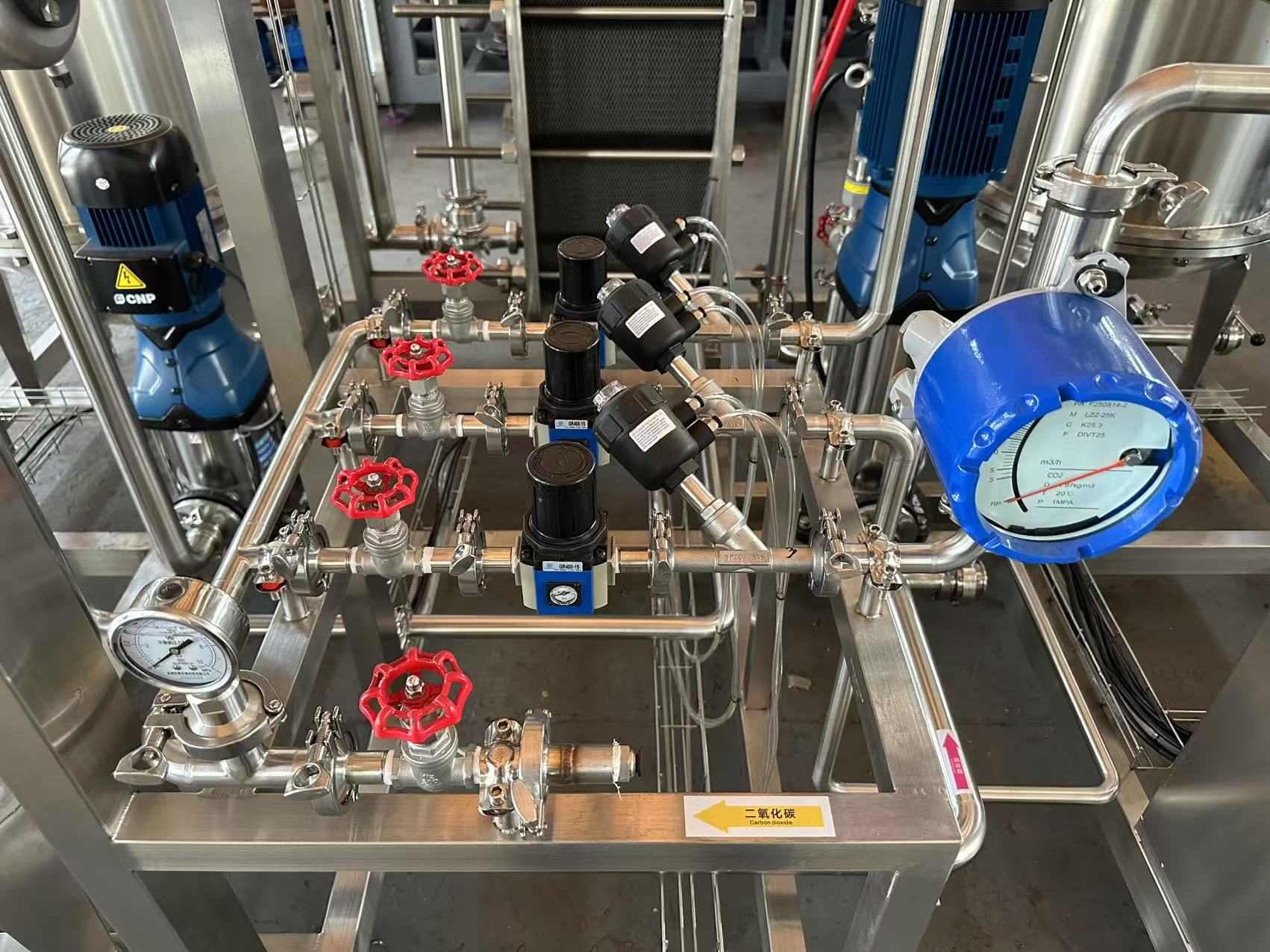

7. The finished product tank controls the carbon dioxide intake through the British Boliu flow control valve, and the E+H pressure transmitter automatically detects the pressure control diaphragm valve to ensure the stability of the tank pressure. The finished product tank is insulated
8. The outlet of the finished product tank is connected in parallel with the CIP pump to provide sufficient flow of cleaning fluid for the filling machine
Siemens PLC and 12-inch touch screen control, pneumatic control uses SMC brand

Technical Parameters
