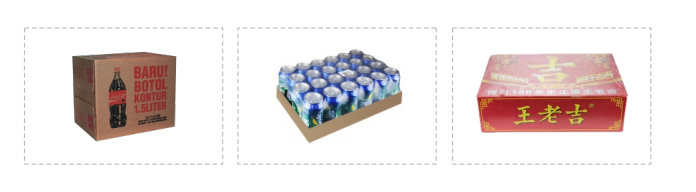

Combined packers combine in one system the functions provided by wraparound packers andshrinkwrappers, for the packaging of plastic,metal, cardboard and glass containers in closed cases, oncardboard pad+ film, on cardboard tray + film, and in cardboard tray only. Trays can be octagonal orrectangular, with same or different height edges.packing machines run up to 50 packs per minute, dependingon the product handled and on the packing pattern,Different pack collations can be formed according to thecontainer’s shape, capacity and dimensions: the most popular formats on market are 2x3. 3x4 and 4x6 inclosed boxes, 4x3 and 6x4 on tray+film, 3x2 and 4x3 in film only. packers are equipped with mechanicaproduct-grouping system and manual format changeover.

EQUIPMENT ADVANTAGES

Bottle feeding

• Flexible and changeable breadth of the bottle feeding component, independent motor control, and bottle vibrating mechanism.

Paper with a double-sided suction link

• Suction speed of up to 50 times per minute using vacuum pump and suction cup.
• Not sucking paper or double sheets of paper is not an issue.

Paperboard bin

• Constant paper feeding pressure and intelligent pneumatic constant pressure paper pushing enable steady and dependable paper suction.
• A vertical row of more than 800 cardboard sheets reduces the amount of loading effort.

Mechanism for folding cardboard

• One set of folding components is used for both full wrapping and half-tray packing, which can be used flexibly to the packaging of a variety of items and gives the box a square look.
• Employ the servo folding technique, which has active folding formation, a smooth movement curve, precise alignment, and simple adjustment.
• Minimal cardboard needs, no need for excessive chamfering or gaps, and stronger bonding between the manufactured cartons.

Pre-cutting and adsorption film device that moves quickly

• The machine has two guide rails attached at the bottom, which makes it easy to maintain and inspect the machine's performance.
• Compared to clutch film cutting, independent motor-driven film cutting snips improve film cutting operation accuracy, precision, stability, and speed.
• For a smooth film output and to prevent film obstruction, the air blowing pipe is fitted to the film exit.
• With a film thickness range of 0.03 to 0.04 mm, belt vacuum suction film is flexible.

Constant tension stretching device for film rolls

• By carefully and effectively controlling the film, you can meet the demand for flawless shrinkage of the film package and guarantee exquisite film package creation.
• When the production speed varies unexpectedly during the production process, the tension of the film will be adjusted automatically to lower the breadth of the film and save 10% film usage.
