Shanghai Yarong Biochemical Instrument Factory

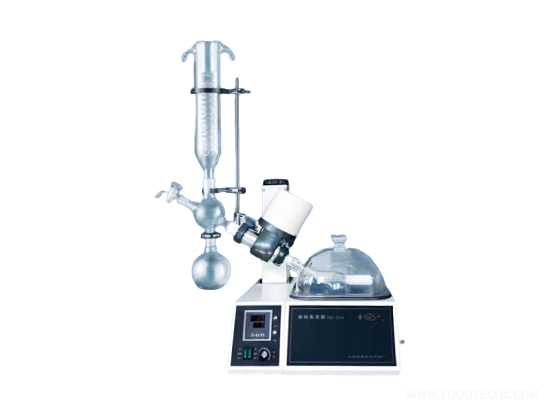

ShangHai, ChinaMain Technical Parameters of RE-52A & RE-52 Rotary Evaporators
表格
| 项目 Item | RE-52A / RE-52 |
|---|---|
| 温度范围
|
Room Temperature ~ 99℃ ±1℃ |
| 旋转瓶容量
|
50–2000ml |
| 转速范围
|
0–150 rpm |
| 升降行程
|
0–120mm |
| 52A 型加热锅
|
Stainless Steel Teflon Square Pot |
| 52 型加热锅
|
Stainless Steel Teflon Round Pot |
| 加热功率
|
1KW |
| 电压
|
220V |
| 仪器尺寸
|
640×400×960 (mm) |
| 重量
|
20KG |
Number of Suction Heads
2
Voltage
~220V/50Hz
Maximum Vacuum
0.098 Mpa
Water Tank Capacity
15L
Flow Rate
60L/min
Single-head Suction Volume
10L/min
Overall Weight
10.5Kg
