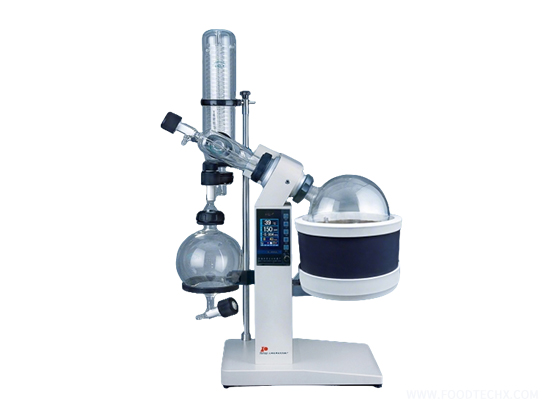

RE-6000AA rotary evaporator with LCD color screen, water and oil dual-purpose, digital display of temperature and speed, digital display of water bath pot, automatic lifting, built-in vacuum negative pressure controller, continuous feeding and discharging time setting





项目 Item参数 Specification旋转瓶

Rotating Flask容量 6 升，法兰口大口径 Φ75mm

Capacity: 6L, Large flange port diameter Φ75mm收集瓶

Collecting Flask容量 3 升

Capacity: 3L温度范围

Temperature RangePID 温度自动控制，LED 显示，室温～180℃±2℃

PID automatic temperature control, LED display, Room temperature ~ 180℃ ±2℃变频调速

Variable Frequency Speed Regulation0~150 转 / 分

0~150 rpm真空度范围

Vacuum Range内置式设定 - 0.01~-0.095Mpa，精度 0.2%~0.5%

Built-in setting: -0.01 ~ -0.095MPa, Accuracy: 0.2%~0.5%浴锅

Bath Pot8 升容器，可用 500-6000ml 范围内蒸发瓶

8L container, compatible with evaporation flasks ranging from 500ml to 6000ml升降行程

Lifting Stroke0~180mm

0~180mm冷凝管

Condenser双回流冷凝管，冷凝面积 0.22m²

Dual reflux condenser, Condensation area: 0.22m²加热功率

Heating Power1500W

1500W电源电压

Power Supply Voltage220V/50Hz

220V/50Hz仪器尺寸

Instrument Dimensions530×380×980 (mm) 长 × 宽 × 高

530×380×980 (mm) (L×W×H)整机重量

Net Weight66KG

66KG
