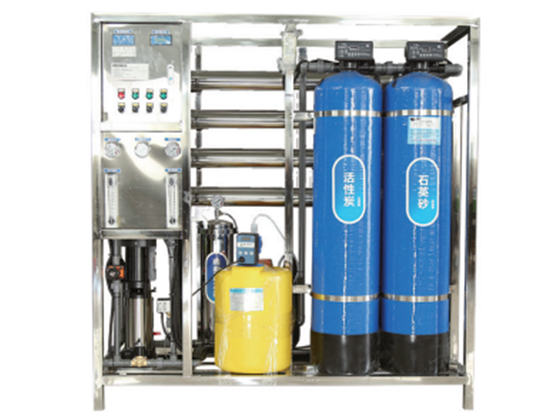

Home/Water Treatment Equipment/RO-1000L（FA）/
Guangzhou Boyuan Beverage Machinery Co., Ltd.
GuangDong-GuangZhou, ChinaOne original pumpCHL2-40 SS304 south pump
A、Q=2m3/h；H= 28m；N=0.55kw
Mechanical filter 1 set
Mechanical filter A, φ350*1725mm 1465 fiberglass Bintel 1 set
Mechanical filter B, automatic multi-way valve F67B new 1
Mechanical filter C, up and down water distributor, central collection pipe 1 set
Mechanical filter D, purified quartz sand 1-2mm domestic 200kg
Activated carbon filter 1 set
Activated carbon filter A, φ350*1725mm 1465 fiberglass Bintel 1 set
Activated carbon filter B, automatic multi-way valve F67B new 1
Activated carbon filter C, up and down water distributor, central collection pipe 1 set
Activated carbon filter D, water coconut shell activated carbon 8-12 mesh domestic 67.5kg
5μm security filter PFS-3P-20 Clear water 1 set
5μm security filterA, φ170*800mm 20", 3 core SS304 Guangzhou 1
5μm security filterB, filter 20", 5μm PP filter Guangzhou 3
High pressure pumpCDL2-15 SS304 South pump 1
High pressure pumpA, Q=2m3/h; H= 115m; N = 1.5 kw
Reverse osmosis device1000L/h clear water 1 set
Reverse osmosis device A, membrane shell 4040-1 SS304 domestic 4
Reverse osmosis device B, membrane element ULP21-4040 polyamide junction 4
Reverse osmosis device C, rack SS304 Yongda 1
Reverse osmosis device D, water inlet solenoid valve DN25 Yongchuang 1
Reverse osmosis device E, concentrated water solenoid valve DN20 forever create 1
Reverse osmosis device F, high pressure water inlet regulating valve DN25 1
Reverse osmosis device G, concentration water flow control valve DN20 1
Reverse osmosis device H, water inlet check valve DN25 1
Reverse osmosis device I, drainage check valve DN25 1
Pressure instrument/water quality detectordomestic 1 batch
Pressure instrument/water quality detectorA, reverse osmosis pressure gauge 0 ~ 2.5MPa domestic 2 pieces
Pressure instrument/water quality detectorB, pretreatment pressure gauge 0 ~ 0.7MPa domestic 3 pieces
Pressure instrument/water quality detectorC, low-voltage protection switch P-06 domestic 1
Pressure instrument/water quality detectorD, reverse osmosis water intake, water production TDS instrument 2 sets
Flow meter national production1 batch
Flow meter national productionA, the first-level water production flowmeter (surface plate) 10GPM plexiglass domestic 1
Flow meter national productionB, a concentrated water flowmeter (surface plate) 10GPM plexiglass domestic 1
connecting pipe fittings1 batch
connecting pipe fittingsA. 1 batch of pipe DN20-DN25 U-PVC 3
connecting pipe fittingsB, pipe fittings DN20-DN25 U-PVC three centimetre 1 batch
Electric control system clear water 1 set
Electric control system A, circuit breaker DZ47-60 C20/3P Shijiazhuang 1
Electric control system B, circuit breaker DZ47-60 C10/1P domestic 1
Electric control system C, fuse holder and fuse RT18-32/18.3*38; RO15/2A φ18*38 domestic 3 sets
Electric control system D, AC contactor CJX2-1210 domestic 2
Electric control system E, thermal overload relay JRS1-09-25Z/2.5-4A domestic 1
Electric control system F, thermal overload relay JRS1-09-25Z/4-6A domestic 1
Electric control system G, intermediate relay base and intermediate relay PYF-14A; JQX-13F/MY4 220VAC-L domestic 4 sets
Electric control system H, indicator AD16-22D/S 220V(green) domestic 3
Electric control system I, indicator AD16-22D/S 220V (red) domestic 1
Electric control system J, emergency stop switch domestic 1
Electric control system K, three speed knob XB2-BD33 domestic 3
Electric control system L, electric box SS304 domestic 1
Electric control system M, name plate silk screen clear water 1 set
Product Description
Configuration List
