❖ Typical Applications:
Wireless data transmission across rivers, lakes, ponds and in the wild without laying cables
Scenarios where it is difficult to lay cables at the edges of rivers, lakes and monitoring points
RS485/LORALORA/RS485 data conversion between two points
❖ Performance Features:
Supports all data perception terminals with RS485 output under its brand
Lightweight and quick setup and configuration of networking methods via mobile phone APP
Ultra-long distance transmission, up to 10km in open areas with direct line of sight
Wide range input power supply supporting battery and solar power for continuous operation

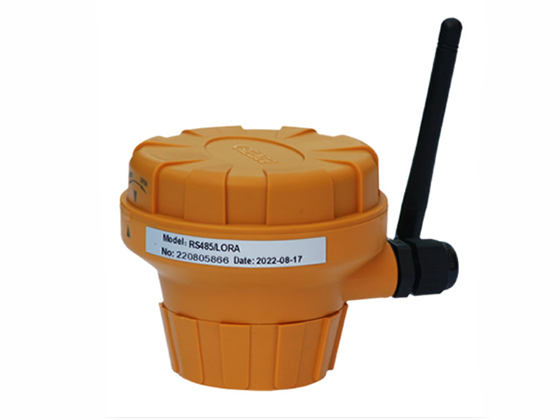

Home/Water Treatment Equipment/RS485/LORA (RS485/LORA Conversion Module)/
Hebei Create Instrumentation Technologies Co..Ltd.
, ChinaAppearance
Form: Base Station Style (Desktop Box) Waterproof Level: IP65
Interface:
Data Bits: 8 bits Stop Bits: 1 or 2 bits RS485 Interface Supported Parameters: Parity: None, Odd, Even Baud Rates: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Antenna:
Antenna Interface: Standard SMA Male Characteristic Impedance: 50 Ohms
Communication Standards and Frequency Bands:
433/470/868/915 MHz
LORA Parameters:
Indoor/Urban Communication Distance: (1 ~ 2) km Outdoor/Line-of-Sight Communication Distance: (5 ~ 10) km Transmission Power: 20 dBm (100 mW) Sensitivity: -140 dBm
Power Supply
DC (9-28) V; Anti-reverse design
Operating Parameters:
<2W
Electromagnetic Environment:
ESD Protection Capability: If the site is in a thunderstorm or high-voltage electrostatic field, please take lightning protection measures.
Product Description
Technical Parameter
