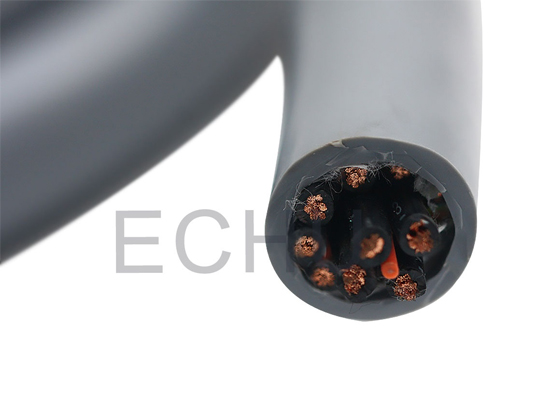

Home/Accessories/Consumables/Electrical/Electric wire/RVV(National Standard)0.75*16C :Sheathed Cable RVV for Electrical Installation/

EASYHOLD Special Wire and Cable (Kunshan) Co., Ltd.
JiangSu-SuZhou, ChinaIntroduction:
Thanks to the good mechanical properties of polyvinyl chloride (PVC), its excellent electrical insulation performance, chemical stability, and water resistance, this cable also has certain electrical insulation properties. The color-coded core wires facilitate identification for connection and control cables. The superior performance of the product ensures safer use.
Product Features
-
The mechanical properties of polyvinyl chloride (PVC) are good, and it has excellent electrical insulation performance and chemical stability. It is also water-resistant and has certain electrical insulation properties.
-
The core wires are color-coded for easy identification of connection and control cables.
-
The product has superior performance, ensuring safer use.
Mobile Installation:
15× cable outer diameter
Fixed Installation:
6× cable outer diameter
Mobile Installation:
-5°C to +70°C
Fixed Installation:
-15°C to +70°C
Operating Voltage:
≤0.5mm22000V >0.5mm22500V
Test Voltage:
≤0.5mm2300/300V >0.5mm2300/500V
Conductor: Stranded fine-tinned oxygen-free copper wire, in compliance with GB/T 3956 Class 5 and JB/T 8734
Insulation: Special compound PVC insulation
Inner Sheath: Wrapped with PP tape or non-woven fabric for cushioning.
Sheath: Optional
Application Standards: JB/T 8734.4, GB/T 5023.5
